Remove/install Parktronic system (PTS) warning indicator in rear passenger compartment - AR54.65-P-0007R
MODEL 230.4 with CODE (220) Parktronic System (PTS)
| Remove/install | |||
|---|---|---|---|
| 1 | Completely open Vario roof | ||

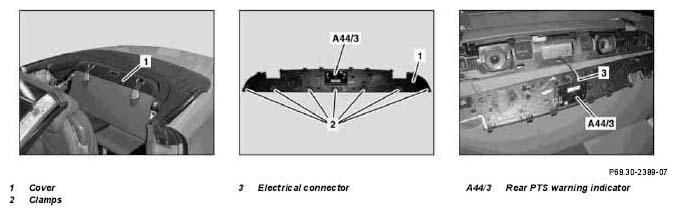

| 2 | Use mounting wedge to unclip cover (1) at the clamps (2) | Figure | |
| 3 | Disconnect electrical connector (3) from the rear PTS warning indicator (A44/3) and remove cover (1) | ||
| 4 | Unclip rear PTS warning indicator (A44/3) from the cover (1) and remove | ||
| 5 | Install in the reverse order |
