Rear shelf antenna, location/purpose/design/function - GF82.62-P-3113R: Notes
MODEL 230
The rear shelf is used as an antenna. It is insulated from the vehicle ground

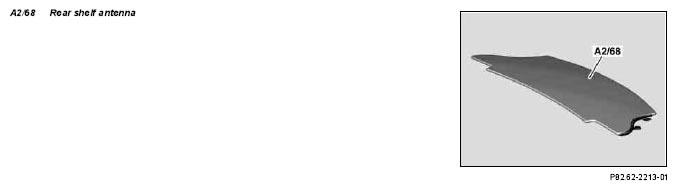

| Rear shelf antenna, location | GF82.62-P-3113-01R | ||
| Rear shelf antenna, purpose | Reception of the AM signals when Vario roof is closed. | ||
| Rear shelf antenna, design | The rear shelf consists of cast magnesium .It is covered with synthetic leather and insulated from vehicle ground by a special mounting. | ||
| Rear shelf antenna, function | GF82.62-P-3113-04R | ||
| Rear window antenna location/task/design/function | GF82.62-P-3106R |
