Multifunction steering wheel location/task - GF82.90-P-4000RJ: Notes

MODEL 230.4 as of 1.9.03 up to 31.5.04 except CODE (498) Japan version except CODE (494) USA version

MODEL 230.4 as of 1.9.03 up to 30.6.04 with CODE (494) USA version

MODEL 230.4 as of 1.9.03 with CODE (498) Japan version

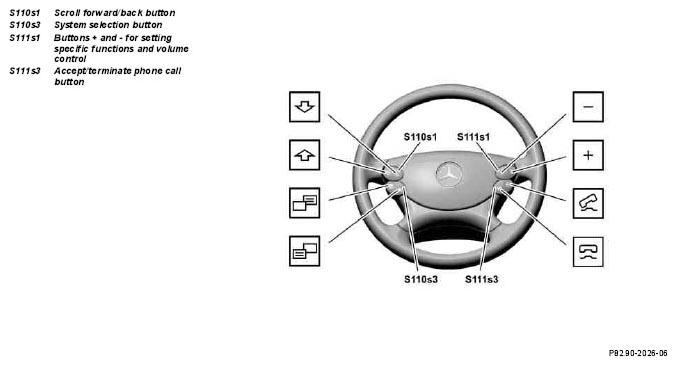

Fig 1: Identifying Multifunction Steering Wheel Button Location
G05076308
  Multifunction steering wheel button group, location   GF82.90-P-4000-01RJ
  Multifunction steering wheel button group, task Accepting and relaying commands that correspond to the individual button presses.
