| 1 |
Circuit 15, status |
|
| 10 |
Front roller sun blind motor, actuation |
|
| 11 |
Rear roller sun blind motor, actuation |
|
| 12 |
Seat ventilation, request |
|
| 13 |
Seat ventilation, actuation |
|
| 13 |
Seat ventilation, actuation |
|
| 2 |
Comfort closing/opening, request |
|
| 3 |
Power window motor, request |
|
| 3 |
Power window motor, request |
|
| 3 |
Power window motor, request |
|
| 3 |
Power window motor, request |
|
| 4 |
Power window motor, actuation |
|
| 4 |
Power window motor, actuation |
|
| 4 |
Power window motor, actuation |
|
| 4 |
Power window motor, actuation |
|
| 5 |
Rear side roller blind motor, request |
|
| 5 |
Rear side roller blind motor, request |
|
| 6 |
Rear side roller blind motor, actuation |
|
| 6 |
Rear side roller blind motor, actuation |
|
| 7 |
Roof system drive unit, request |
|
| 7 |
Roof system drive unit, request |
|
| 8 |
Roof system drive unit, actuation |
|
| 8 |
Roof system drive unit, actuation |
|
| 9 |
Roller sun blind motor, request |
|
| A8/1 |
Transmitter key |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
|
| Code 413 |
Panoramic glass sunroof with top sliding sunroof |
|
| Code 414 |
Electric glass tilting/sliding roof |
|
| M10/3 |
Left front power window motor |
|
| M10/4 |
Right front power window motor |
|
| M10/5 |
Left rear power window motor |
|
| M10/6 |
Right rear power window motor |
|
| M12 |
Roof system drive unit |
|
| M12 |
Roof system drive unit |
|
| M18/10 |
Left front seat backrest ventilation motor group |
|
| M18/9 |
Left front seat cushion ventilation motor group |
|
| M24/5 |
Left rear side roller blind motor |
|
| M24/6 |
Right rear side roller blind motor |
|
| M54 |
Front roller sun blind motor |
|
| M54/1 |
Rear roller sun blind motor |
|

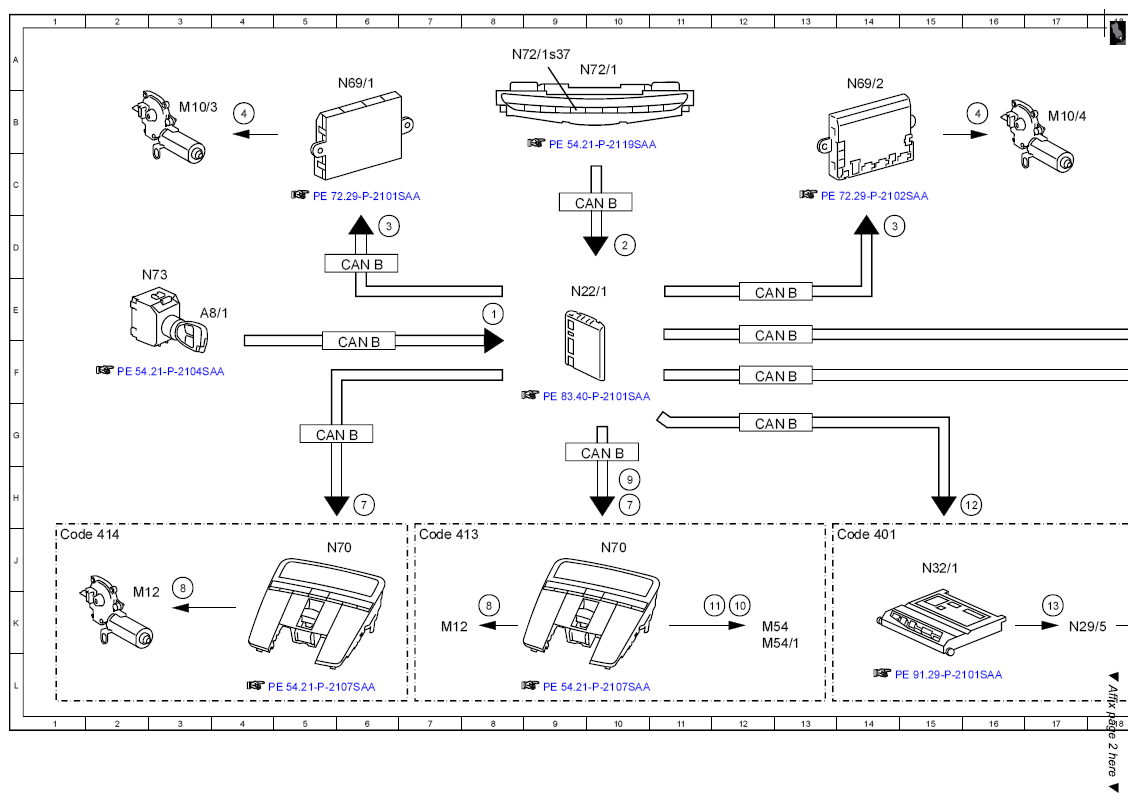

| N22/1 |
AAC [KLA] control unit |
|
| N29/5 |
Left front seat ventilation blower regulator |
|
| N32/1 |
Left front seat control unit |
|
| N69/1 |
Left front door control unit |
|
| N69/2 |
Right front door control unit |
|

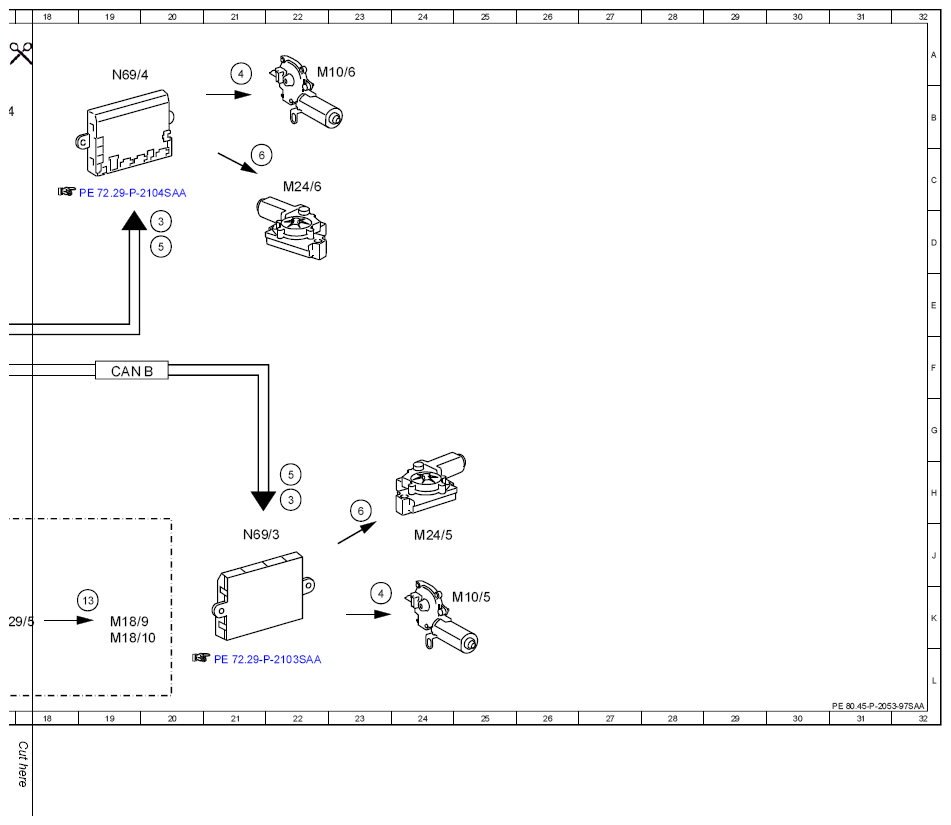

| N69/3 |
Rear left door control unit |
|
| N69/4 |
Right rear door control unit |
|
| N70 |
Overhead control panel control unit |
|
| N70 |
Overhead control panel control unit |
|
| N72/1 |
Upper control panel control unit |
|
| N72/1s37 |
Air recirculation button |
|
| N73 |
EIS [EZS] control unit |
|
