| 1 |
Vehicle speed, signal |
|
| 1 |
Vehicle speed, signal |
|
| 10 |
Trunk lid position sensor, status |
|
| 11 |
Trunk lid CL [ZV] motor, request |
|
| 12 |
Trunk lid CL [ZV] motor, actuation |
|
| 13 |
Trunk lid CL [ZV] motor, status |
|
| 13 |
Trunk lid CL [ZV] motor, status |
|
| 14 |
Front central operating unit, status |
|
| 15 |
COMAND display, actuation |
|
| 16 |
COMAND controller unit, status |
|
| 16 |
COMAND controller unit, status |
|
| 2 |
Trunk lid control button, status |
|
| 3 |
Trunk lid open/close switch, status |
|
| 3 |
Trunk lid open/close switch, status |
|
| 4 |
Trunk lid external operation switch, status |
|
| 4 |
Trunk lid external operation switch, status |
|
| 5 |
Transmitter key, request |
|
| 5 |
Transmitter key, request |
|
| 5 |
Transmitter key, request |
|
| 6 |
Access authorization code, signal |
|
| 6 |
Access authorization code, signal |
|
| 6 |
Access authorization code, signal |
|
| 7 |
Trunk lid emergency release switch, status |
|
| 7 |
Trunk lid emergency release switch, status |
|
| 8 |
TLC hydraulic pump, request |
|
| 9 |
TLC hydraulic pump, actuation |
|

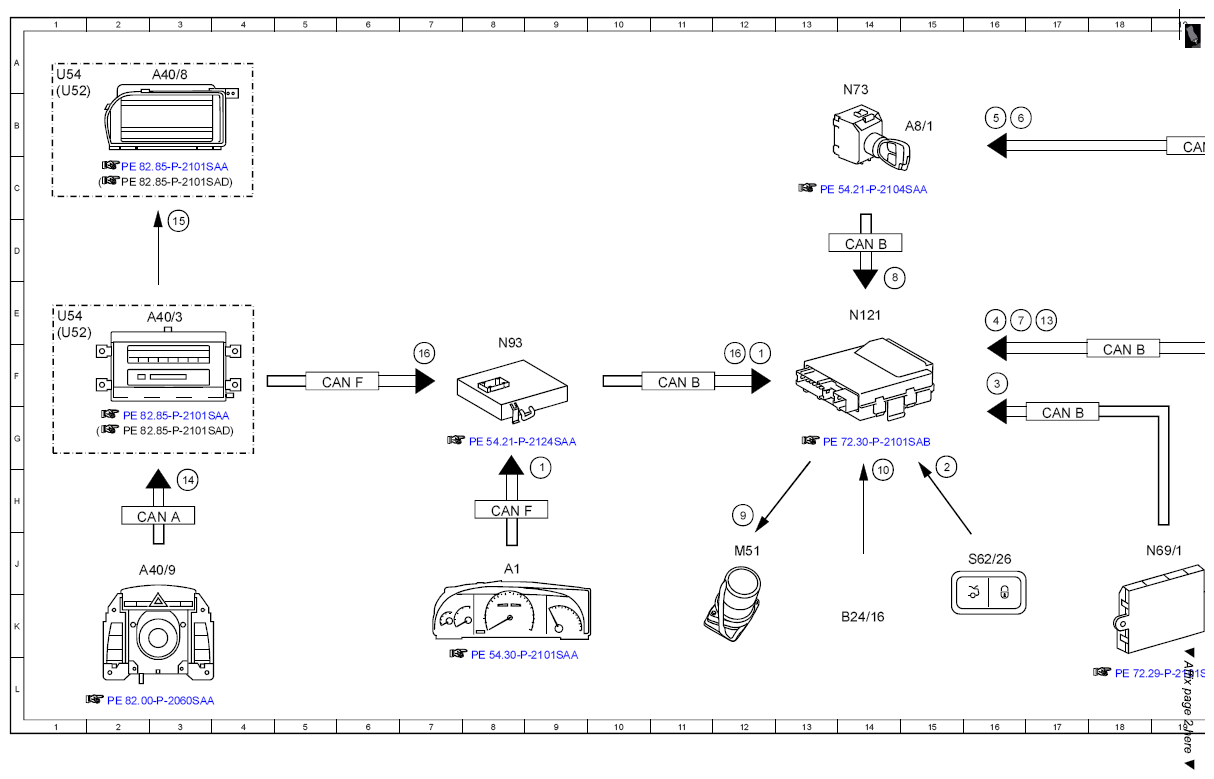

| A1 |
Instrument cluster |
|
| A2/12 |
Rear window antenna amplifier module |
|
| A40/3 |
COMAND control unit |
|
| A40/8 |
COMAND display |
|
| A40/9 |
Front central operating unit |
|
| A8/1 |
Transmitter key |
|
| A8/1 |
Transmitter key |
|
| B24/16 |
Trunk lid position sensor |
|
| CAN A |
Telematics CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN F |
Central CAN |
|
| CAN F |
Central CAN |
|
| Code 494 |
USA version |
|
| LIN |
B1 Front door LIN |
|

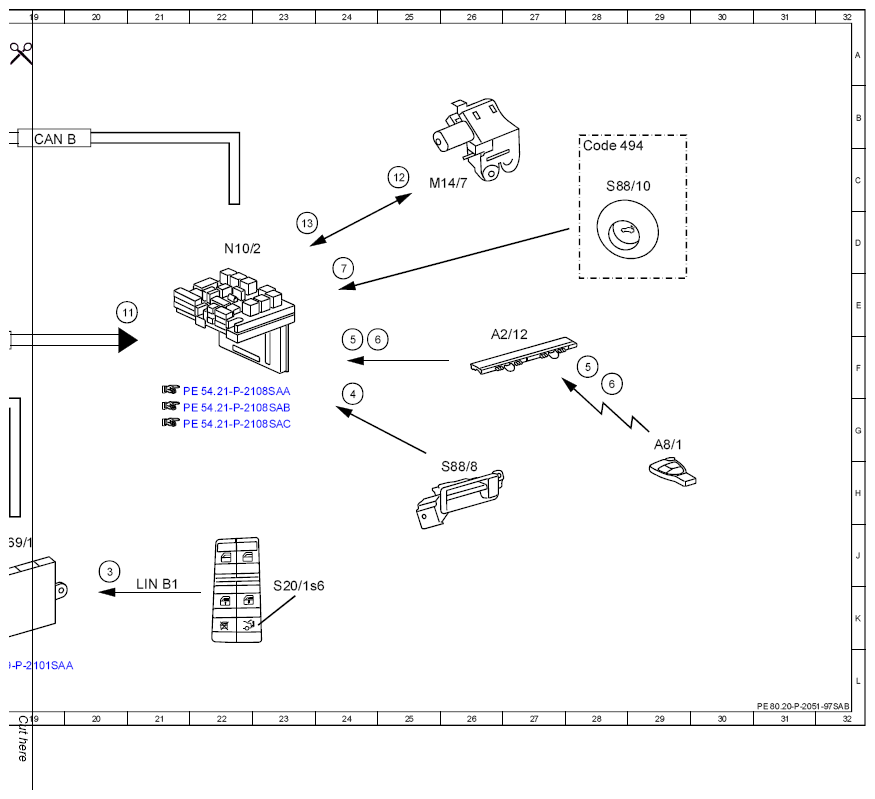

| M14/7 |
Trunk lid CL [ZV] motor |
|
| M51 |
TLC [HDS] hydraulic pump |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N121 |
TLC [HDS] control unit |
|
| N69/1 |
Left front door control unit |
|
| N73 |
EIS [EZS] control unit |
|
| N93 |
Central gateway control unit |
|
| S20/1s6 |
Trunk lid open/close switch |
|
| S62/26 |
TLC [HDS] button |
|
| S88/10 |
Trunk lid emergency release switch |
|
| S88/8 |
Trunk lid external operation switch |
|
| U52 |
Valid for Japan |
|
| U52 |
Valid for Japan |
|
| U54 |
Valid for all except Japan |
|
| U54 |
Valid for all except Japan |
|
