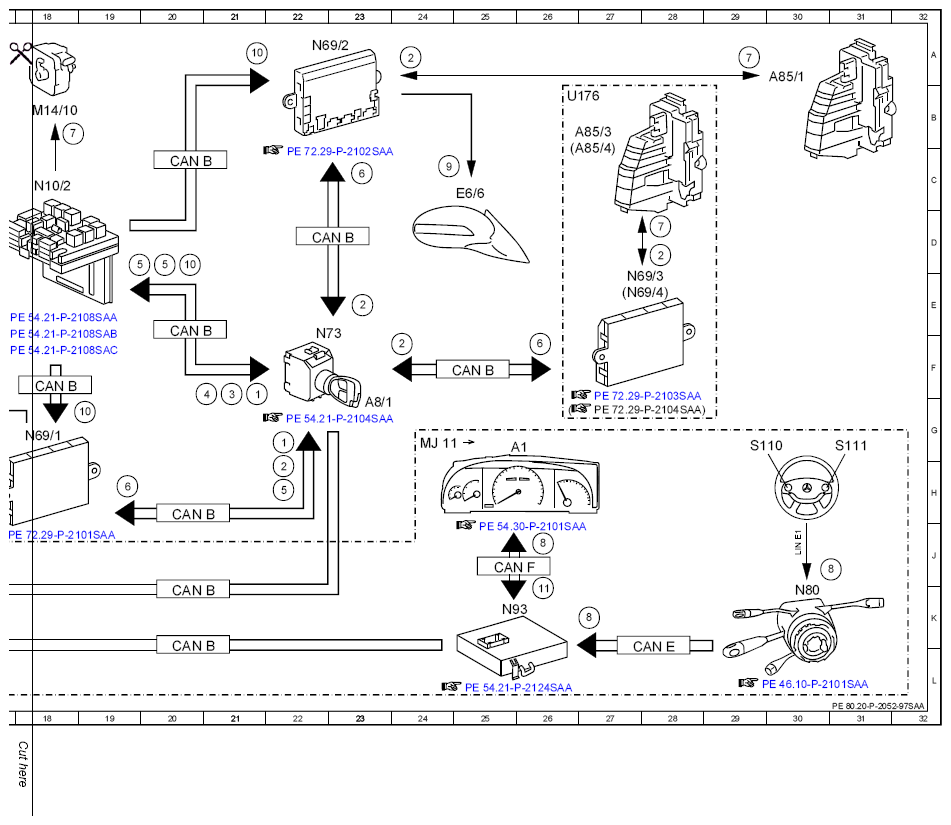

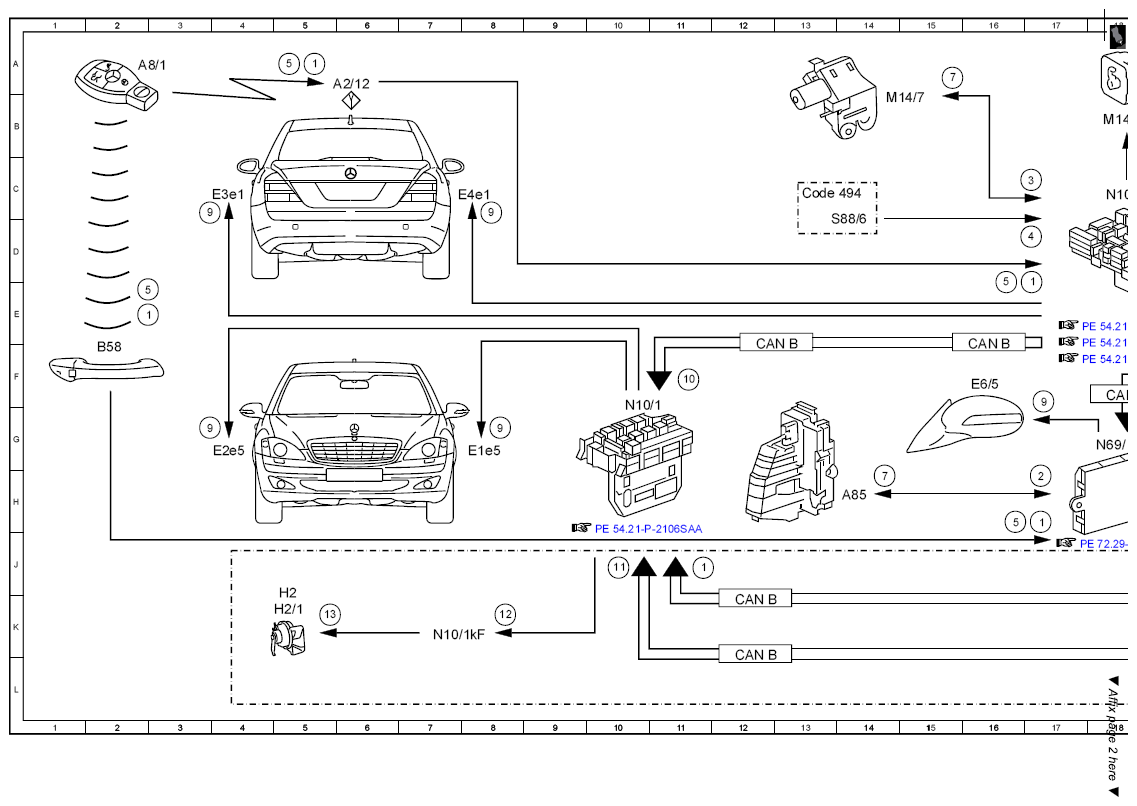

| 1 |
Lock/unlock central locking, request |
2E |
| 1 |
Lock/unlock central locking, request |
22G |
| 1 |
Lock/unlock central locking, request |
21F |
| 1 |
Lock/unlock central locking, request |
17H |
| 1 |
Lock/unlock central locking, request |
|
| 1 |
Lock/unlock central locking, request |
|
| 1 |
Lock/unlock central locking, request |
|
| 10 |
Visual feedback, request |
|
| 10 |
Visual feedback, request |
|
| 10 |
Visual feedback, request |
|
| 10 |
Visual feedback, request |
|
| 11 |
Acoustic feedback, status |
26K |
| 11 |
Acoustic feedback, status |
|
| 12 |
Fanfare horns, request |
8K |
| 13 |
Fanfare horns, actuation |
5K |
| 2 |
Door rotary tumbler switch, status |
17H |
| 2 |
Door rotary tumbler switch, status |
24A |
| 2 |
Door rotary tumbler switch, status |
28D |
| 2 |
Door rotary tumbler switch, status |
22H |
| 2 |
Door rotary tumbler switch, status |
|
| 2 |
Door rotary tumbler switch, status |
|
| 3 |
Trunk lid rotary tumbler microswitch, status |
17C |
| 3 |
Trunk lid rotary tumbler microswitch, status |
21F |
| 4 |
Trunk lid contact switch, status |
21F |
| 4 |
Trunk lid contact switch, status |
|
| 5 |
Remote trunk opening, request |
2E |
| 5 |
Remote trunk opening, request |
22H |
| 5 |
Remote trunk opening, request |
16H |
| 5 |
Remote trunk opening, request |
|
| 5 |
Remote trunk opening, request |
|
| 5 |
Remote trunk opening, request |
|
| 6 |
CL [ZV] motor, request |
19H |
| 6 |
CL [ZV] motor, request |
23C |
| 6 |
CL [ZV] motor, request |
|
| 7 |
CL [ZV] motor, actuation |
14H |
| 7 |
CL [ZV] motor, actuation |
29A |
| 7 |
CL [ZV] motor, actuation |
28D |
| 7 |
CL [ZV] motor, actuation |
15A |
| 7 |
CL [ZV] motor, actuation |
|
| 8 |
Multifunction steering wheel button group, signal |
26J |
| 8 |
Multifunction steering wheel button group, signal |
27K |
| 8 |
Multifunction steering wheel button group, signal |
|
| 9 |
Visual feedback, actuation |
3G |
| 9 |
Visual feedback, actuation |
8G |
| 9 |
Visual feedback, actuation |
24C |
| 9 |
Visual feedback, actuation |
17F |
| 9 |
Visual feedback, actuation |
|
| 9 |
Visual feedback, actuation |
|
| A1 |
Instrument cluster |
25G |
| A2/12 |
Rear window antenna amplifier module |
6A |
| A8/1 |
Transmitter key |
2A |
| A8/1 |
Transmitter key |
23G |
| A85 |
Left front door lock unit |
14H |
| A85/1 |
Right front door lock switch |
30A |
| A85/3 |
Left rear door lock unit |
27B |
| A85/4 |
Right rear door lock unit |
|
| B58 |
Driver door infrared sensor |
2F |
| CAN B |
Interior CAN |
25F |
| CAN B |
Interior CAN |
20H |
| CAN B |
Interior CAN |
20E |
| CAN B |
Interior CAN |
18F |
| CAN B |
Interior CAN |
20C |
| CAN B |
Interior CAN |
22D |
| CAN B |
Interior CAN |
16F |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
12K |
| CAN B |
Interior CAN |
20K |
| CAN B |
Interior CAN |
12L |
| CAN B |
Interior CAN |
20L |
| CAN E |
Chassis CAN |
28L |
| CAN F |
Central CAN |
25J |
| Code 494 |
USA version |
13C |
| E1e5 |
Left turn signal lamp |
8G |
| E2e5 |
Right turn signal lamp |
4G |
| E3e1 |
Left turn signal lamp |
4C |
| E4e1 |
Right turn signal lamp |
8C |
| E6/5 |
Left outside mirror turn signal lamp |
16F |
| E6/6 |
Right outside mirror turn signal lamp |
25C |
| H2 |
Left fanfare horn |
5K |
| H2/1 |
Right fanfare horn |
5K |
| LIN E1 |
Steering LIN |
30J |
| M14/10 |
Fuel filler flap CL [ZV] motor |
18B |
| M14/7 |
Trunk lid CL [ZV] motor |
14B |
| N10/1 |
Front SAM control unit with fuse and relay module |
10G |
| N10/1kF |
Fanfare horn relay |
7K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
18C |
| N69/1 |
Left front door control unit |
18G |
| N69/2 |
Right front door control unit |
22A |
| N69/3 |
Rear left door control unit |
27E |
| N69/4 |
Right rear door control unit |
|
| N73 |
EIS [EZS] control unit |
22F |
| N80 |
Steering column module |
30K |
| N93 |
Central gateway control unit |
25K |
| S110 |
Left multifunction steering wheel button group |
29G |
| S111 |
Right multifunction steering wheel button group |
31G |
| S88/6 |
Trunk lid contact switch |
14D |
| U176 |
Valid for model series 221 |
26B |
