| 1 |
Door rotary tumbler switch, status |
|
| 1 |
Door rotary tumbler switch, status |
|
| 1 |
Door rotary tumbler switch, status |
|
| 1 |
Door rotary tumbler switch, status |
|
| 10 |
Alarm siren, actuation |
|
| 2 |
Trunk lid rotary tumbler microswitch, status |
|
| 3 |
ATA [EDW] engine hood switch, status |
|
| 4 |
Ultrasonic echo sounder sensor, status |
|
| 5 |
Alarm siren, status |
|
| 6 |
Inclination sensor, status |
|
| 6 |
Inclination sensor, status |
|
| 6 |
Inclination sensor, status |
|
| 7 |
Flasher frequency, signal |
|
| 7 |
Flasher frequency, signal |
|
| 8 |
Turn signal lamp, actuation |
|
| 8 |
Turn signal lamp, actuation |
|
| 8 |
Turn signal lamp, actuation |
|
| 9 |
Interior lamp, actuation |
|
| 9 |
Interior lamp, actuation |
|

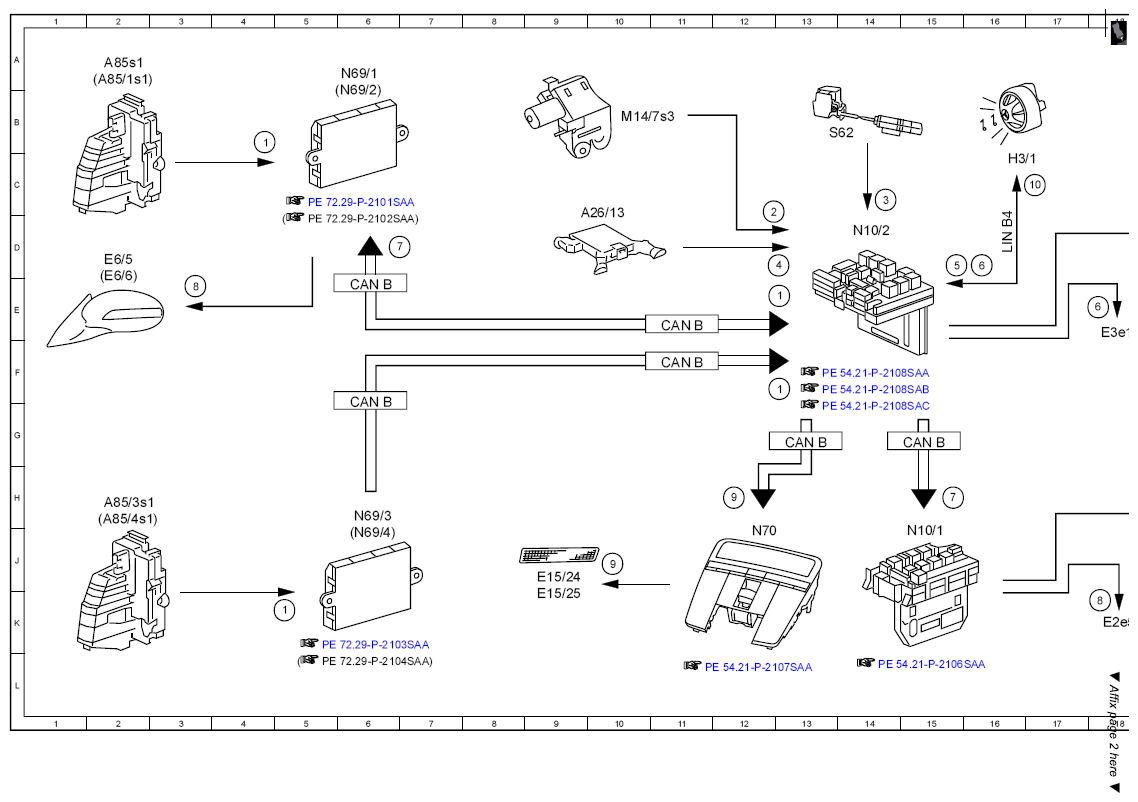

| A26/13 |
Ultrasonic echo sounder sensor |
|
| A85/1s1 |
Right front rotary tumbler switch |
|
| A85/3s1 |
Left rear rotary tumbler switch |
|
| A85/4s1 |
Right rear rotary tumbler switch |
|
| A85s1 |
Left front rotary tumbler switch |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| E15/24 |
Left coat hook lamp |
|
| E15/25 |
Right coat hook lamp |
|
| E1e5 |
Left turn signal lamp |
|
| E2e5 |
Right turn signal lamp |
|

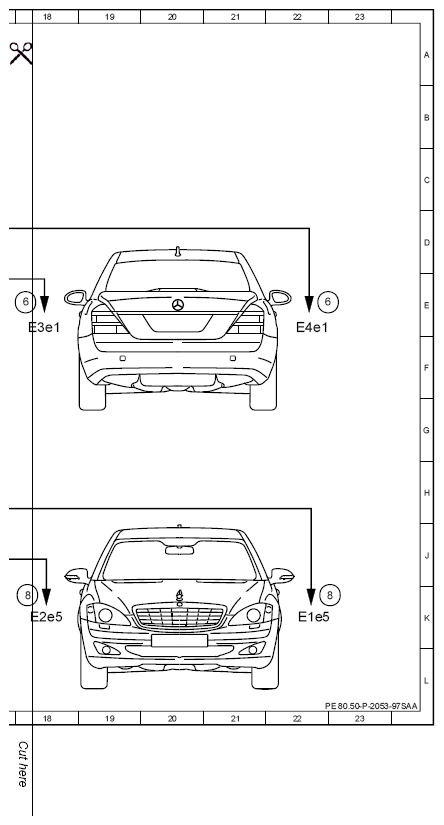

| E3e1 |
Left turn signal lamp |
|
| E4e1 |
Right turn signal lamp |
|
| E6/5 |
Left outside mirror turn signal lamp |
|
| E6/6 |
Right outside mirror turn signal lamp |
|
| H3/1 |
Alarm signal siren |
|
| LIN B4 |
Rear SAM LIN |
|
| M14/7s3 |
Trunk lid rotary tumbler microswitch |
|
| N10/1 |
Front SAM control unit with fuse and relay module |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N69/1 |
Left front door control unit |
|
| N69/2 |
Right front door control unit |
|
| N69/3 |
Rear left door control unit |
|
| N69/4 |
Right rear door control unit |
|
| N70 |
Overhead control panel control unit |
|
| S62 |
ATA [EDW] hood switch |
|
