| 1 |
Access authorization code, signal |
|
| 1 |
Access authorization code, signal |
|
| 1 |
Access authorization code, signal |
|
| 1 |
Access authorization code, signal |
|
| 1 |
Access authorization code, signal |
|
| 1 |
Access authorization code, signal |
|
| 10 |
Inclination sensor, status |
|
| 11 |
Ultrasonic echo sounder sensor, status |
|
| 2 |
Lock central locking, signal |
|
| 2 |
Lock central locking, signal |
|
| 2 |
Lock central locking, signal |
|
| 2 |
Lock central locking, signal |
|
| 2 |
Lock central locking, signal |
|
| 2 |
Lock central locking, signal |
|
| 3 |
Central locking, status |
|
| 4 |
Anti-theft alarm system, status |
|
| 4 |
Anti-theft alarm system, status |
|
| 5 |
Alarm siren, status |
|
| 6 |
ATA [EDW] function indicator, actuation |
|
| 7 |
ATA [EDW] engine hood switch, status |
|
| 8 |
Door rotary tumbler switch, status |
|
| 8 |
Door rotary tumbler switch, status |
|
| 8 |
Door rotary tumbler switch, status |
|
| 8 |
Door rotary tumbler switch, status |
|
| 9 |
Trunk lid rotary tumbler microswitch, status |
|

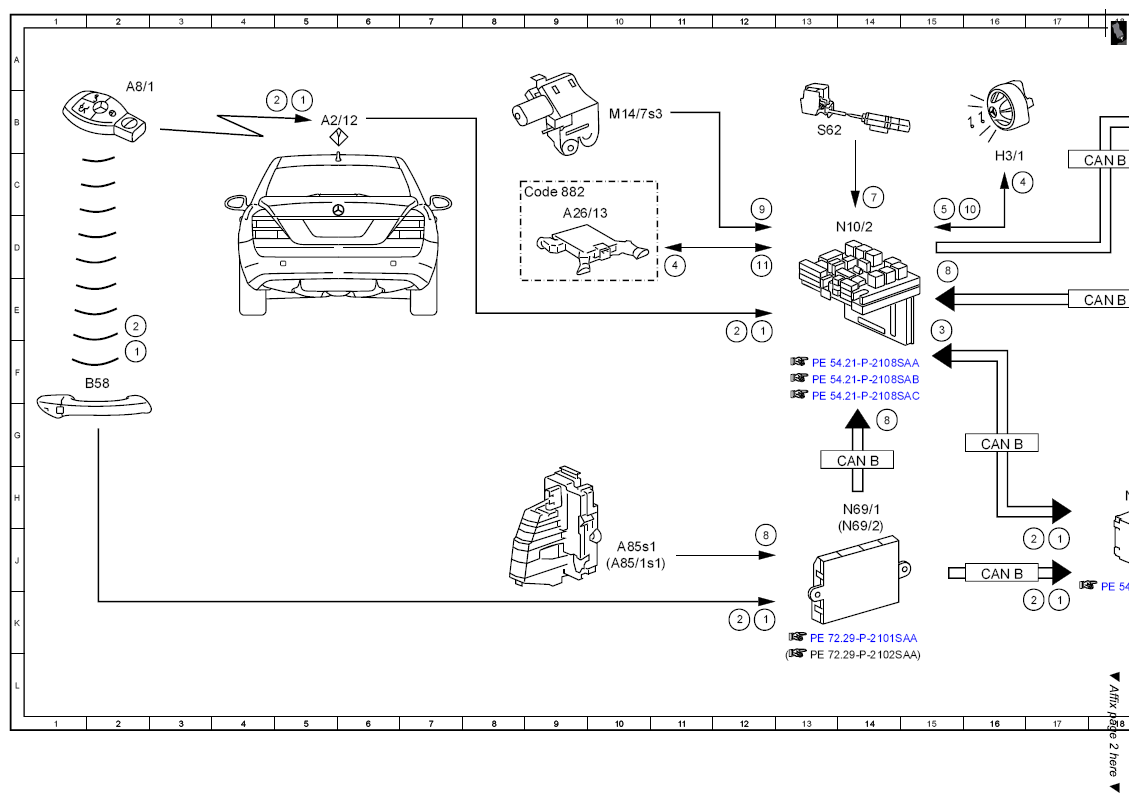

| A2/12 |
Rear window antenna amplifier module |
|
| A26/13 |
Ultrasonic echo sounder sensor |
|
| A8/1 |
Transmitter key |
|
| A8/1 |
Transmitter key |
|
| A85/1s1 |
Right front rotary tumbler switch |
|
| A85/3s1 |
Left rear rotary tumbler switch |
|
| A85/4s1 |
Right rear rotary tumbler switch |
|
| A85s1 |
Left front rotary tumbler switch |
|
| B58 |
Driver door infrared sensor |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| Code 882 |
Interior protection (only with ATA [EDW]) |
|
| H3/1 |
Alarm signal siren |
|
| M14/7s3 |
Trunk lid rotary tumbler microswitch |
|
| N10/2 |
Rear SAM control unit with fuse and relay module |
|
| N69/1 |
Left front door control unit |
|
| N69/2 |
Right front door control unit |
|
| N69/3 |
Rear left door control unit |
|
| N69/4 |
Right rear door control unit |
|

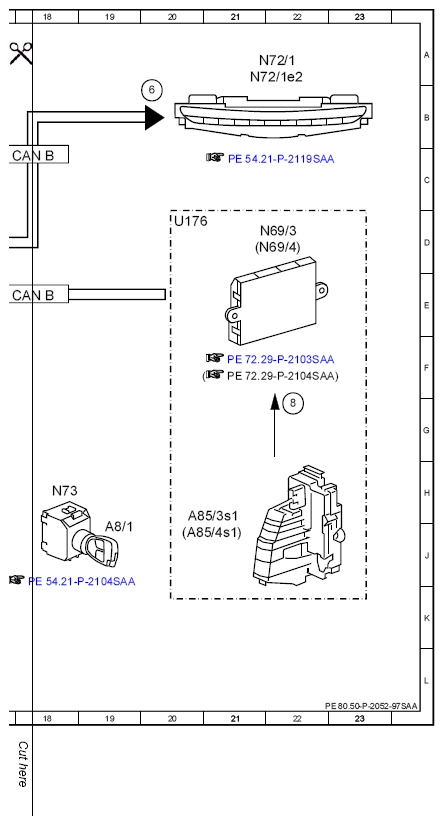

| N72/1 |
Upper control panel control unit |
|
| N72/1e2 |
ATA [EDW] function indicator |
|
| N73 |
EIS [EZS] control unit |
|
| S62 |
ATA [EDW] hood switch |
|
| U176 |
Valid for model series 221 |
|
