Remove/install outside mirror paneling - AR88.70-P-9040GZ

MODEL 164

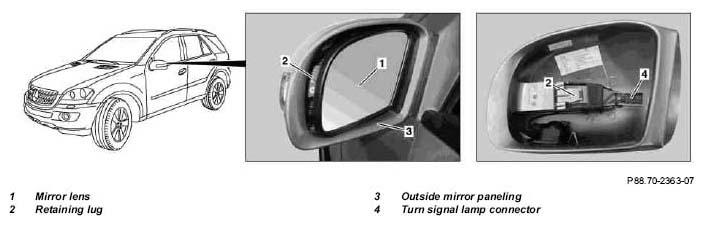

Fig 1: Identifying Outside Mirror Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury.  Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens.	Wear protective gloves and safety glasses.	AS60.00-Z-0008-01R
1	Adjust mirror lens (1) toward inside.
2	Release retaining lug (2) in housing	Work carefully with long wedge to prevent breaking mirror lens (1)
		Long wedge	Figure
3	Remove outside mirror paneling (3) toward outside while disconnecting turn signal lamp connector.
4	Install in the reverse order
5	Perform a function test

Fig 2: Identifying Long Wedge (115 589 03 59 00)
