Remove/install washer fluid hose of headlamp cleaning system - AR82.15-P-6201GZ

MODEL 164 with CODE (600) Headlamp cleaning system

Shown on model 164.1

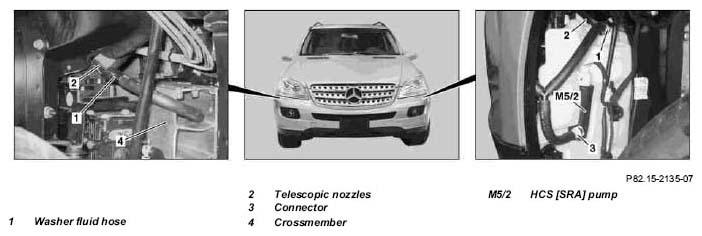

Fig 1: Identifying Washer Fluid Hose, Crossmember, Telescopic Nozzles, HCS [SRA] Pump And Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000GZ
2	Remove front section of fender liner in front fender	On both sides of vehicle.	AR88.10-P-1310GZ
3	Detach washer fluid hose (1) from both telescopic nozzles (2)	Collect washer fluid which flows out.
4	Disconnect washer fluid hose (1) from connector (3) of HCS [SRA] pump (M5/2)
5	Pull washer fluid hose (1) out of crossmember (4)
6	Install in the reverse order
7	Fill washer fluid reservoir
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210GZ
8	Check headlamp cleaning system for proper function
