Remove/install subwoofer amplifier - AR82.62-P-7722GY

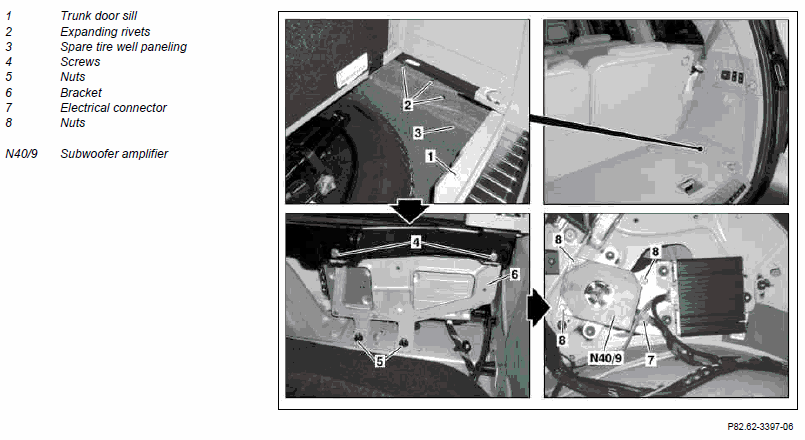

Fig 1: Removing/Installing Subwoofer Amplifier

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove trunk door sill (1). See REMOVE/INSTALL DOOR SILL MOLDING - AR68.30-P-4100GZA .

Remove expansion rivets (2)

Fold trim of spare tire well (3) to one side

Remove bolts (4)

Unscrew nuts (5).

Remove bracket (6) with subwoofer amplifier (N40/9)

Disconnect electrical connector (7)

Unscrew nuts (8) and remove subwoofer amplifier (N40/9) from bracket (6)

Install in the reverse order
