Remove/install rear window wiper motor - AR82.30-P-6900GZ

MODEL 164

Illustrated on model 164.1

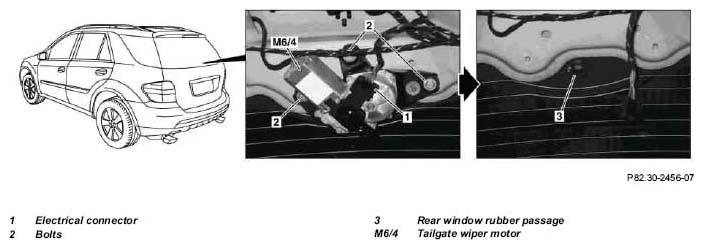

Fig 1: Identifying Rear Window Wiper Motor Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Injury Hazard!  Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Move wiper motor to parking position		AR82.30-P-6800-01GZ
2	Remove liner on tailgate		AR72.20-P-3520GZ
3	Remove wiper arm of rear-end door		AR82.30-P-6910GZ
4	Disconnect electrical connector (1)
5	Remove bolts (2) of tailgate wiper motor
6	Remove tailgate wiper motor (M6/4)	Installation:  Remove rubber passage for rear window (3) if required. Note the installation position!
7	Install in the reverse order
