Remove/install MB-Info and telediagnosis button group - AR82.95-P-3212GZ

MODEL 164 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system

Illustrated on vehicle with telephone "Handy" UPCI system, code 388 and USA version, code 494

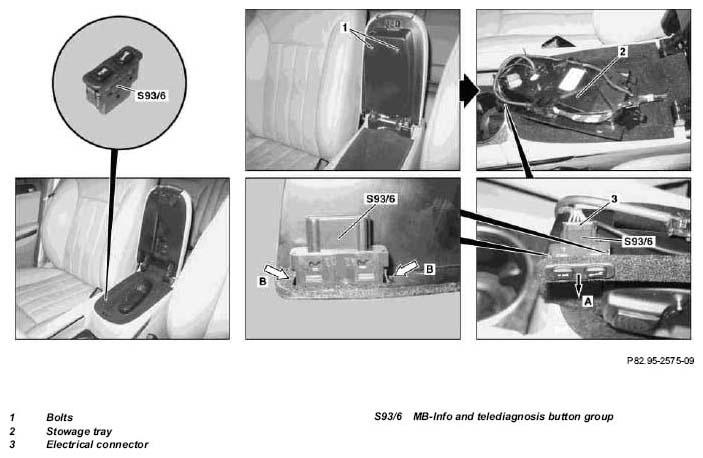

Fig 1: Identifying MB-Info And Telediagnosis Button Group, Stowage Tray And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Open upper and lower stowage box in center console
2	Remove bolts (1)
3	Detach stowage shell (2), pull up slightly and turn around	Do not damage wiring harness. Installation:  Insert stowage shell (2) with its guide lug first.
4	Separate electrical plug connection (3)
5	Remove MB-Info and telediagnosis button group (S93/6) from stowage shell (2)	Push the two catch lugs (arrows B) together and push the MB-Info and telediagnosis button group (S93/6) out of the stowage shell (2) (arrow A). Installation:  Pay attention to the correct installation position of the MB-Info and telediagnosis button group (S93/6).
6	Install in the reverse order
