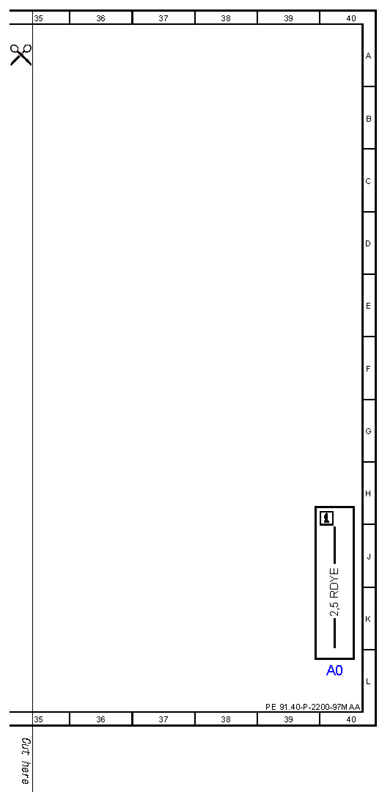

| A0 |
Color code key |
40L |

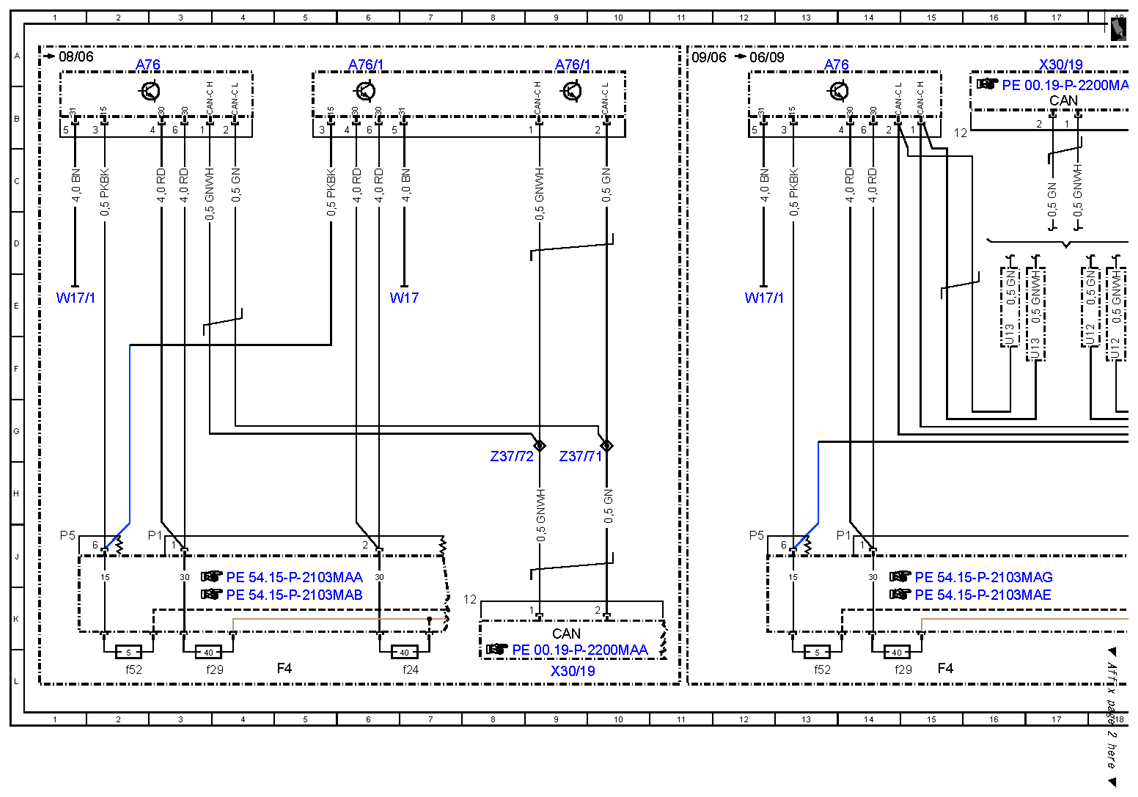

| A76 |
Left front reversible emergency tensioning retractor |
2A |
| A76 |
Left front reversible emergency tensioning retractor |
13A |
| A76 |
Left front reversible emergency tensioning retractor |
25A |

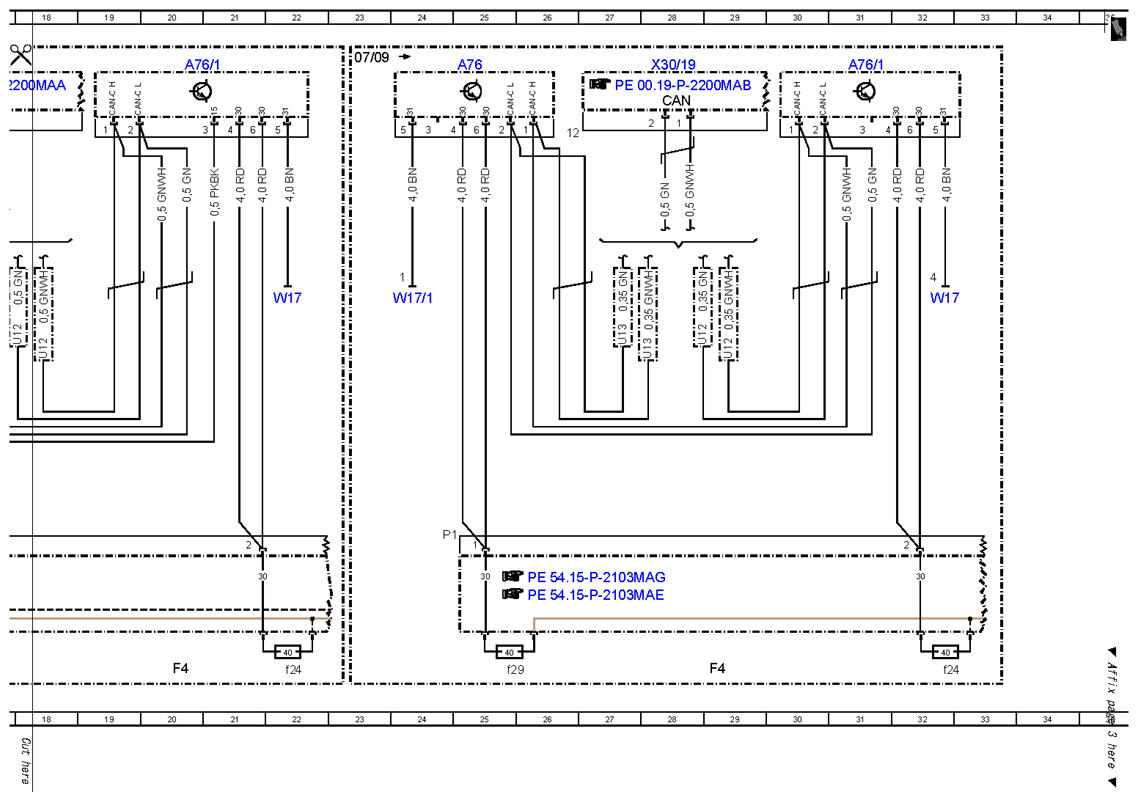

| A76/1 |
Right front reversible emergency tensioning retractor |
6A |
| A76/1 |
Right front reversible emergency tensioning retractor |
9A |
| A76/1 |
Right front reversible emergency tensioning retractor |
20A |
| A76/1 |
Right front reversible emergency tensioning retractor |
31A |
| F4 |
Load compartment fuse and relay box |
5L |
| F4 |
Load compartment fuse and relay box |
20L |
| F4 |
Load compartment fuse and relay box |
29L |
| F4 |
Load compartment fuse and relay box |
15L |
| F4f24 |
Fuse 24 |
7L |
| F4f24 |
Fuse 24 |
22L |
| F4f24 |
Fuse 24 |
32L |
| F4f29 |
Fuse 29 |
4L |
| F4f29 |
Fuse 29 |
15L |
| F4f29 |
Fuse 29 |
25L |
| F4f52 |
Fuse 52 |
2L |
| F4f52 |
Fuse 52 |
13L |
| U12 |
Valid for left-hand drive vehicles |
18F |
| U12 |
Valid for left-hand drive vehicles |
18F |
| U13 |
Valid for right-hand drive vehicles |
17F |
| U13 |
Valid for right-hand drive vehicles |
16F |
| U13 |
Valid for right-hand drive vehicles |
27F |
| U13 |
Valid for right-hand drive vehicles |
28F |
| W17 |
Ground (right rear seat) |
6E |
| W17 |
Ground (right rear seat) |
22E |
| W17 |
Ground (right rear seat) |
32E |
| W17/1 |
Ground (left rear seat) |
1E |
| W17/1 |
Ground (left rear seat) |
12E |
| W17/1 |
Ground (left rear seat) |
24E |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
9L |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
17A |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
28A |
| Z37/71 |
Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve |
9G |
| Z37/72 |
Reversible emergency tensioning retractor CAN engine bus (high) connector sleeve |
8G |
