Wiring diagram for reversible emergency tensioning retractor - PE91.40-U-2200-99MAA

Code:	Designation:	Position:
A76	Left front reversible emergency tensioning retractor	2 A
A76	Left front reversible emergency tensioning retractor	13 A
A76	Left front reversible emergency tensioning retractor	24 A
A76/1	Right front reversible emergency tensioning retractor	6 A
A76/1	Right front reversible emergency tensioning retractor	9 A
A76/1	Right front reversible emergency tensioning retractor	20 A
A76/1	Right front reversible emergency tensioning retractor	31 A
CAN C	Engine compartment CAN	9 K
F4	Load compartment fuse and relay box	5 L
F4	Load compartment fuse and relay box	15 L
F4	Load compartment fuse and relay box	29 L
F4f24	Fuse 24	6 L
F4f24	Fuse 24	21 L
F4f24	Fuse 24	32 L
F4f29	Fuse 29	3 L
F4f29	Fuse 29	14 L
F4f29	Fuse 29	25 L
F4f52	Fuse 52	2 L
F4f52	Fuse 52	13 L
W17	Ground (right rear seat)	6 E
W17	Ground (right rear seat)	21 E
W17	Ground (right rear seat)	32 E
W17/1	Ground (left rear seat)	1 E
W17/1	Ground (left rear seat)	12 E
W17/1	Ground (left rear seat)	23 E
X30/19	Passenger-side voltage distributor (CAN C) connector	9 L
X30/19	Passenger-side voltage distributor (CAN C) connector	16 A
X30/19	Passenger-side voltage distributor (CAN C) connector	28 A
Z37/71	Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve	9 H
Z37/72	Reversible emergency tensioning retractor CAN engine bus (high) connector sleeve	8 H

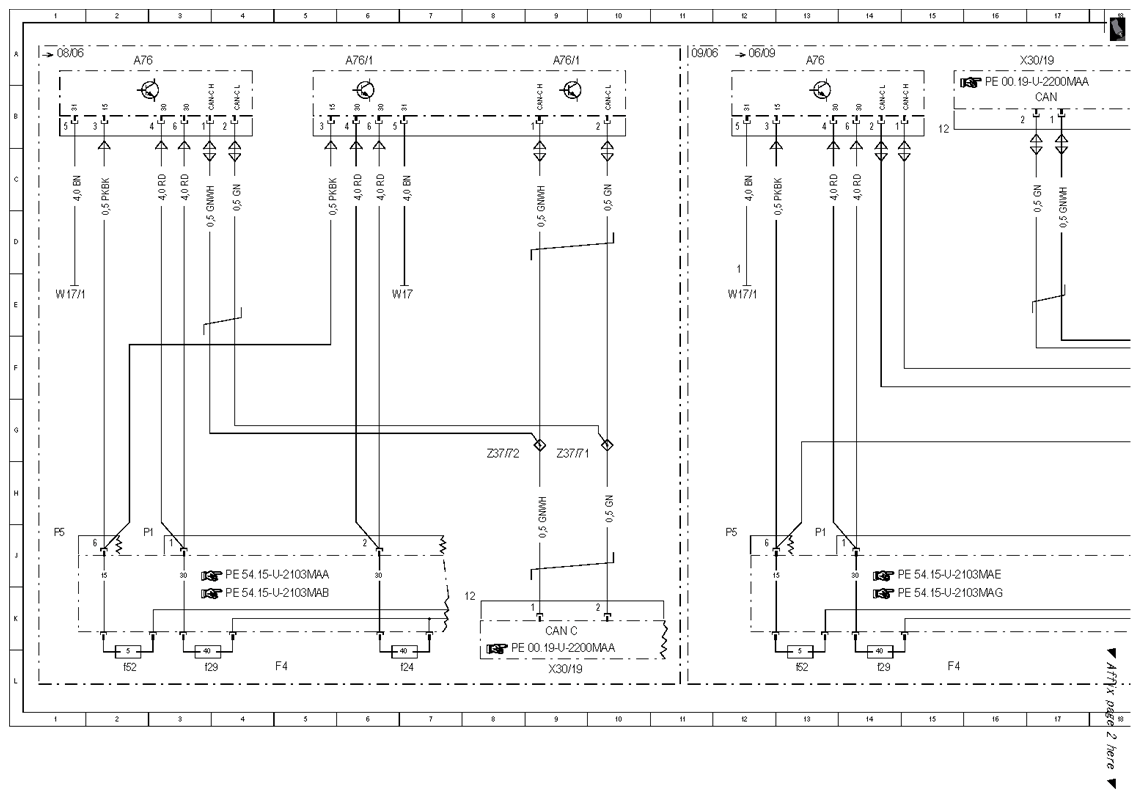

Fig 1: Reversible Emergency Tensioning Retractor - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

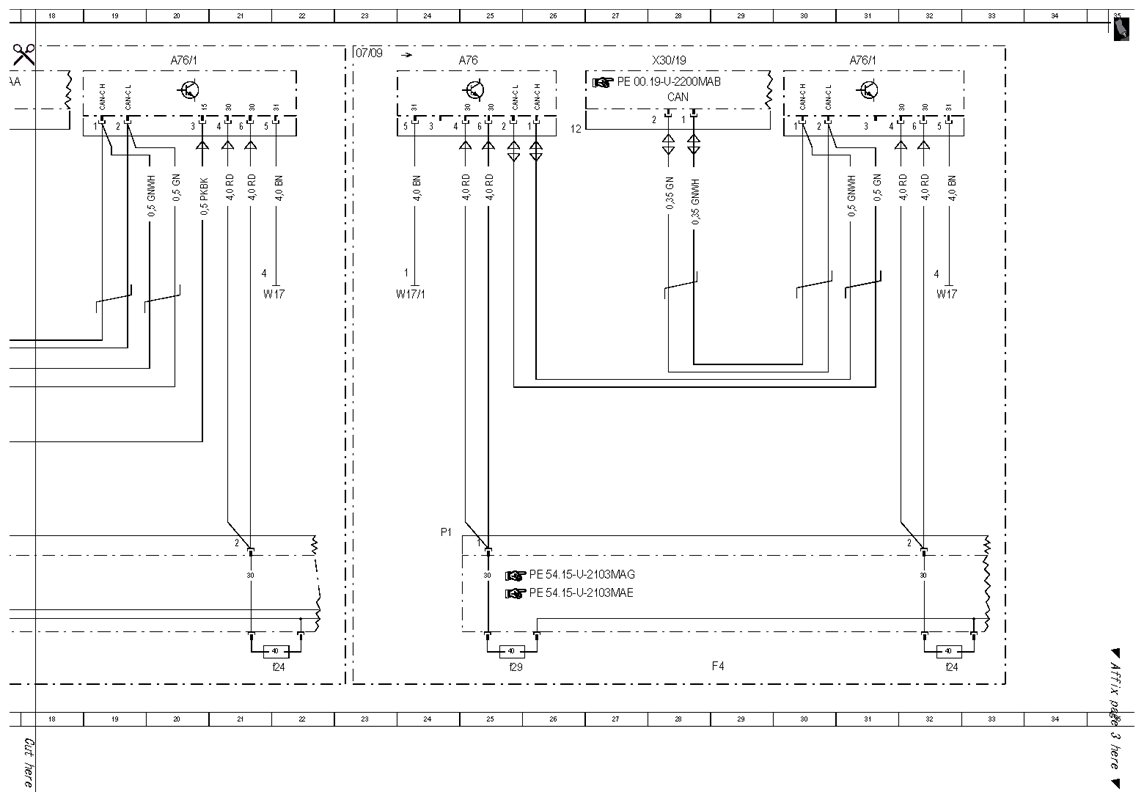

Fig 2: Reversible Emergency Tensioning Retractor - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

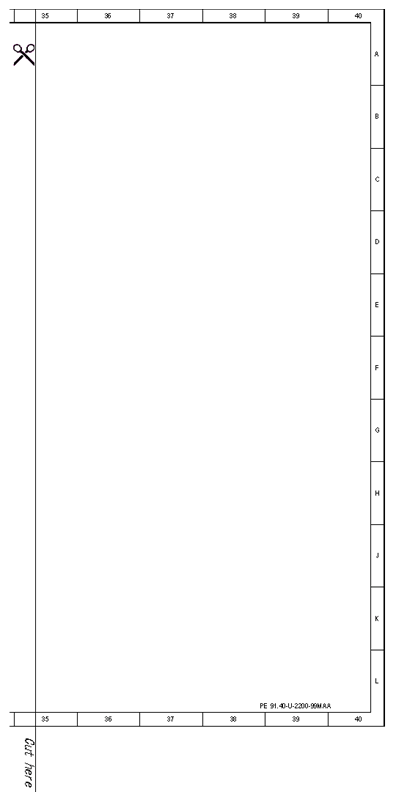

Fig 3: Reversible Emergency Tensioning Retractor - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
