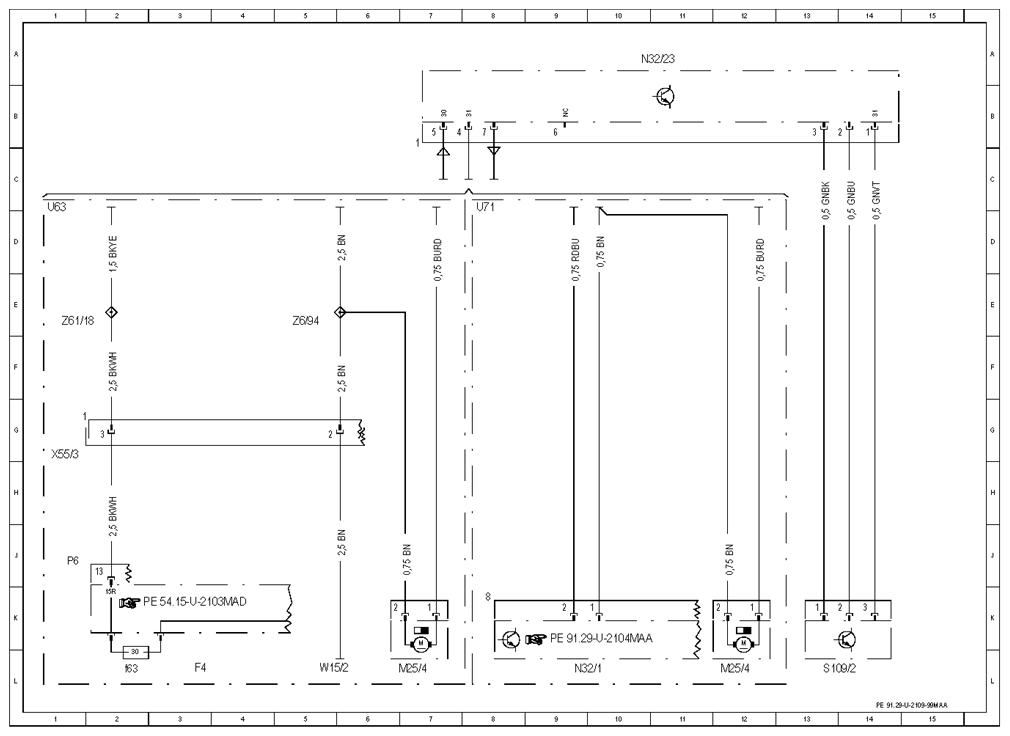

| F4 |
Load compartment fuse and relay box |
3 L |
| F4f63 |
Fuse 63 |
2 L |
| M25/4 |
Driver lumbar support pump |
6 L |
| M25/4 |
Driver lumbar support pump |
12 L |
| N32/1 |
Driver front seat adjustment control unit with memory |
9 L |
| N32/23 |
Driver lumbar support regulator control unit |
10 A |
| S109/2 |
Driver lumbar support adjustment switch |
13 L |
| U63 |
Valid for seat adjustment without memory |
1 D |
| U71 |
Valid for seat adjustment with memory |
8 D |
| W15/2 |
Ground (left footwell) |
5 L |
| X55/3 |
Left front seat contacting strip |
1 H |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
5 E |
| Z61/18 |
Driver seat circuit 15R connector sleeve |
1 E |
