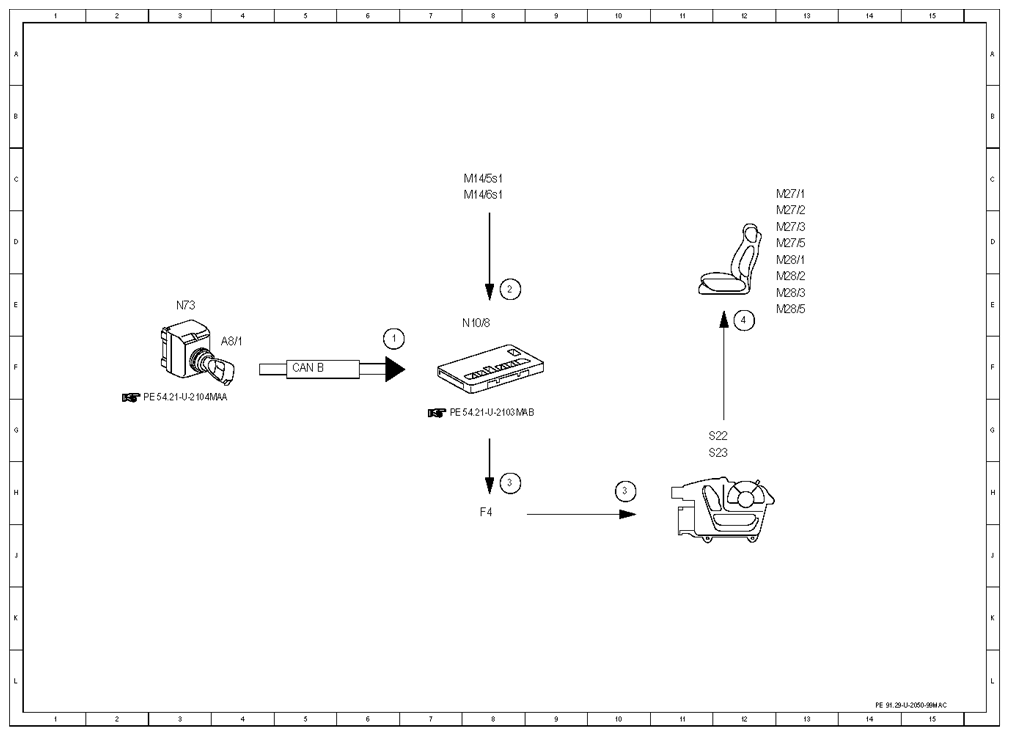

| 1 |
Circuit 15R/circuit 15, status ON |
6 F |
| 2 |
Door rotary tumbler switch, status |
8 E |
| 3 |
Power supply, status ON |
8 H |
| 3 |
Power supply, status ON |
10 H |
| 4 |
Seat adjustment motors, actuation |
12 E |
| A8/1 |
Transmitter key |
4 F |
| CAN B |
Interior CAN |
5 F |
| F4 |
Load compartment fuse and relay box |
8 H |
| M14/5s1 |
Right front door rotary tumbler microswitch |
7 C |
| M14/6s1 |
Left front door rotary tumbler microswitch |
7 C |
| M27/1 |
Seat fore/aft adjustment motor, driver |
12 C |
| M27/2 |
Rear seat height adjustment motor, driver |
12 D |
| M27/3 |
Front seat height adjustment motor, driver |
12 D |
| M27/5 |
Backrest angle adjustment motor, driver |
12 D |
| M28/1 |
Seat fore/aft adjustment motor, front passenger |
12 D |
| M28/2 |
Rear seat height adjustment motor, front passenger |
12 E |
| M28/3 |
Front seat height adjustment motor, front passenger |
12 E |
| M28/5 |
Backrest angle adjustment motor, front passenger |
12 E |
| N10/8 |
Rear SAM control module |
7 E |
| N73 |
EIS [EZS] control unit |
3 E |
| S22 |
Driver seat adjustment switch |
11 G |
| S23 |
Front passenger seat adjustment switch |
11 H |
