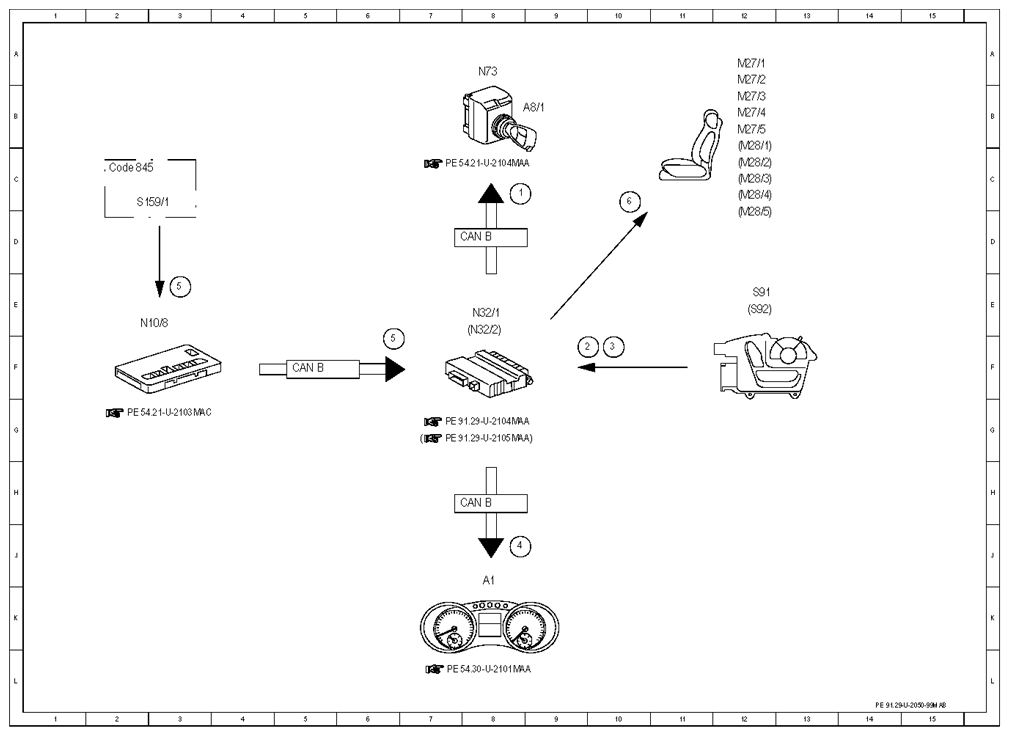

| 1 |
Circuit 15R (for normalization), status ON and circuit 50 (for adjustment), status OFF |
8 C |
| 2 |
Manual adjustment or memory function, request |
9 F |
| 3 |
Store memory positions, request |
10 F |
| 4 |
Acknowledgment tone after memory positions stored successfully, request |
8 J |
| 5 |
2nd seat row easy entry feature microswitch, status |
3 E |
| 5 |
2nd seat row easy entry feature microswitch, status |
6 F |
| 6 |
Seat adjustment motors, actuation |
10 D |
| A1 |
Instrument cluster |
8 K |
| A8/1 |
Transmitter key |
8 B |
| CAN B |
Interior CAN |
5 F |
| CAN B |
Interior CAN |
7 H |
| CAN B |
Interior CAN |
7 D |
| Code 845 |
3rd seat row, electric folding |
2 C |
| M27/1 |
Seat fore/aft adjustment motor, driver |
12 A |
| M27/2 |
Rear seat height adjustment motor, driver |
12 B |
| M27/3 |
Front seat height adjustment motor, driver |
12 B |
| M27/4 |
Head restraint motor, driver |
12 B |
| M27/5 |
Backrest angle adjustment motor, driver |
12 B |
| M28/1 |
Seat fore/aft adjustment motor, front passenger |
12 C |
| M28/2 |
Rear seat height adjustment motor, front passenger |
12 C |
| M28/3 |
Front seat height adjustment motor, front passenger |
12 C |
| M28/4 |
Head restraint motor, front passenger |
12 C |
| M28/5 |
Backrest angle adjustment motor, front passenger |
12 D |
| N10/8 |
Rear SAM control module |
2 E |
| N32/1 |
Driver front seat adjustment control module with memory |
8 E |
| N32/2 |
Front passenger front seat adjustment control module with memory |
8 F |
| N73 |
EIS [EZS] control unit |
8 A |
| S159/1 |
Right easy entry feature microswitch, 2nd seat row |
2 D |
| S91 |
Driver seat with memory adjustment switch group |
12 E |
| S92 |
Front passenger seat with memory adjustment switch group |
12 E |
