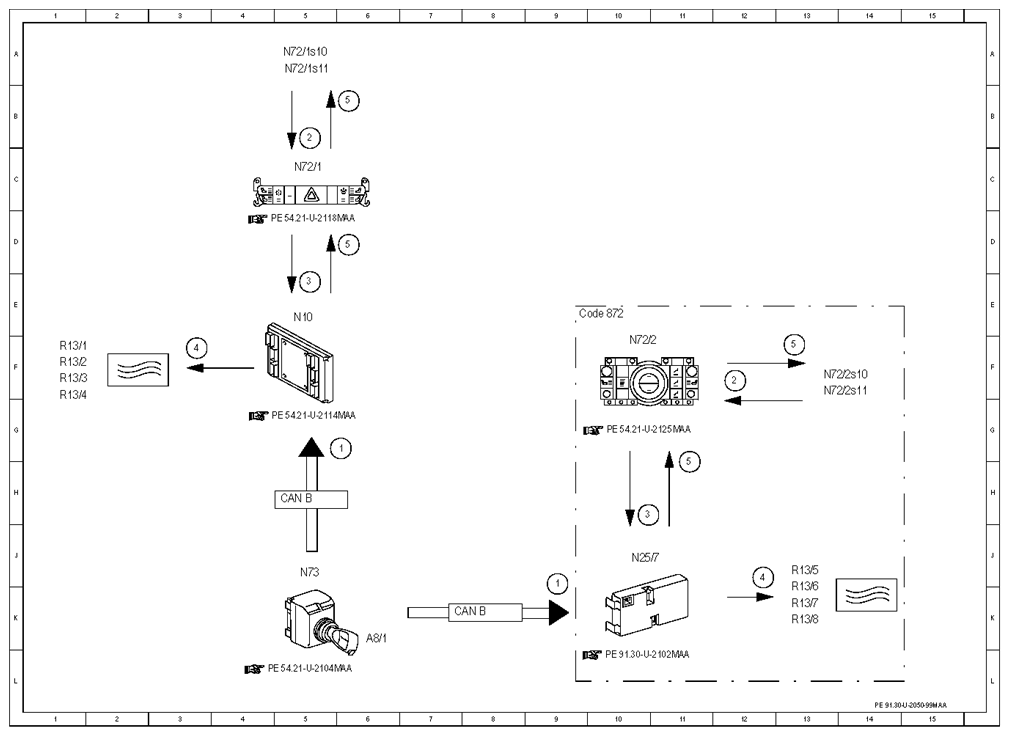

| 1 |
Circuit 15, status |
6 G |
| 1 |
Circuit 15, status |
9 K |
| 2 |
SIH switch, status |
5 B |
| 2 |
SIH switch, status |
12 F |
| 3 |
Seat heater, request |
5 E |
| 3 |
Seat heater, request |
10 H |
| 4 |
Seat heater, actuation |
3 F |
| 4 |
Seat heater, actuation |
12 J |
| 5 |
Seat heater status indication, signal |
6 D |
| 5 |
Seat heater status indication, signal |
6 B |
| 5 |
Seat heater status indication, signal |
11 H |
| 5 |
Seat heater status indication, signal |
13 F |
| A8/1 |
Transmitter key |
6 L |
| CAN B |
Interior CAN |
5 H |
| CAN B |
Interior CAN |
7 K |
| Code 872 |
Left and right rear seat heaters |
9 E |
| N10 |
Front SAM control unit |
5 E |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
10 J |
| N72/1 |
Upper control panel control module |
5 C |
| N72/1s10 |
Left front HS switch |
5 A |
| N72/1s11 |
Right front HS switch |
5 A |
| N72/2 |
RCP [HBF] control module |
10 F |
| N72/2s10 |
Left HS [SIH] switch, 2nd seat row |
13 F |
| N72/2s11 |
Right HS [SIH] switch, 2nd seat row |
13 G |
| N73 |
EIS [EZS] control unit |
5 J |
| R13/1 |
Left front seat heated cushion |
1 F |
| R13/2 |
Left front backrest heated cushion |
1 F |
| R13/3 |
Right front seat heated cushion |
1 F |
| R13/4 |
Right front backrest heated cushion |
1 G |
| R13/5 |
Left 2nd row seat heated cushion |
13 J |
| R13/6 |
Left 2nd row backrest heated cushion |
13 K |
| R13/7 |
Right 2nd row seat heated cushion |
13 K |
| R13/8 |
Right 2nd row backrest heated cushion |
13 K |
