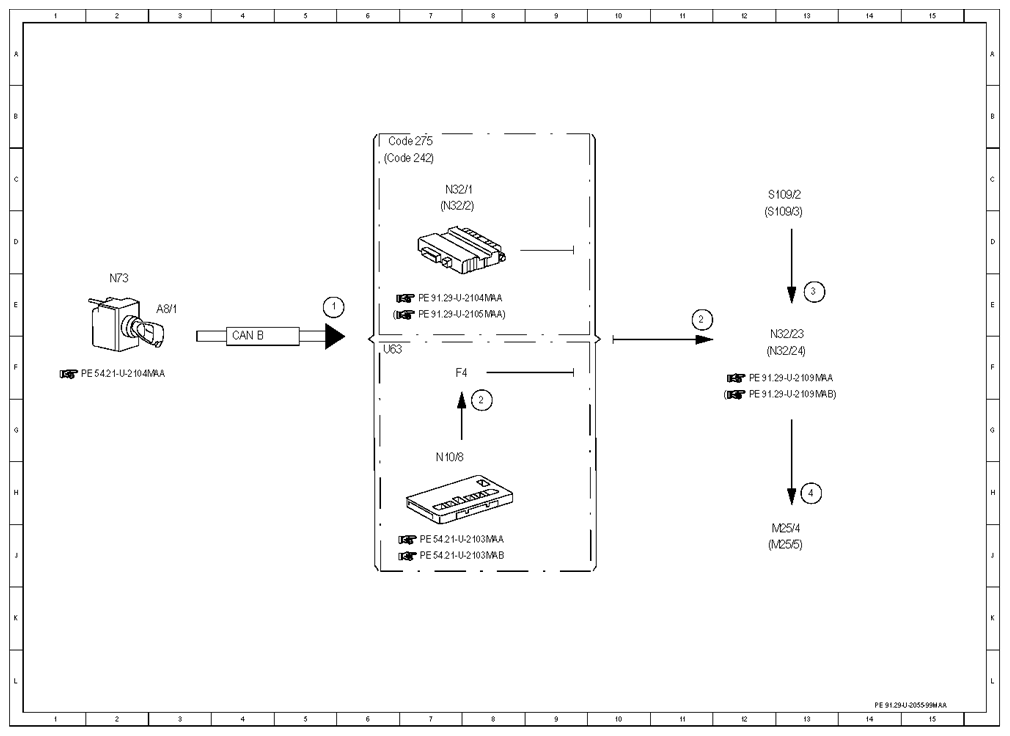

| 1 |
Circuit 15R, status |
5 E |
| 2 |
Power supply, status ON |
8 G |
| 2 |
Power supply, status ON |
11 E |
| 3 |
Lumbar support adjustment switch, request |
13 E |
| 4 |
Lumbar support pump, actuation |
13 H |
| A8/1 |
Transmitter key |
3 E |
| CAN B |
Interior CAN |
4 F |
| Code 242 |
Electrically adjustable front passenger seat with memory function |
6 C |
| Code 275 |
Memory package (driver seat, steering column, mirrors) |
6 C |
| F4 |
Load compartment fuse and relay box |
7 F |
| M25/4 |
Driver lumbar support pump |
12 J |
| M25/5 |
Front passenger lumbar support pump |
12 J |
| N10/8 |
Rear SAM control module |
7 H |
| N32/1 |
Driver front seat adjustment control module with memory |
7 C |
| N32/2 |
Front passenger front seat adjustment control module with memory |
7 D |
| N32/23 |
Driver lumbar support regulator control unit |
12 F |
| N32/24 |
Front passenger lumbar support regulator control unit |
12 F |
| N73 |
EIS [EZS] control unit |
2 E |
| S109/2 |
Driver lumbar support adjustment switch |
12 C |
| S109/3 |
Front passenger lumbar support adjustment switch |
12 D |
| U63 |
Valid for seat adjustment without memory |
6 F |
