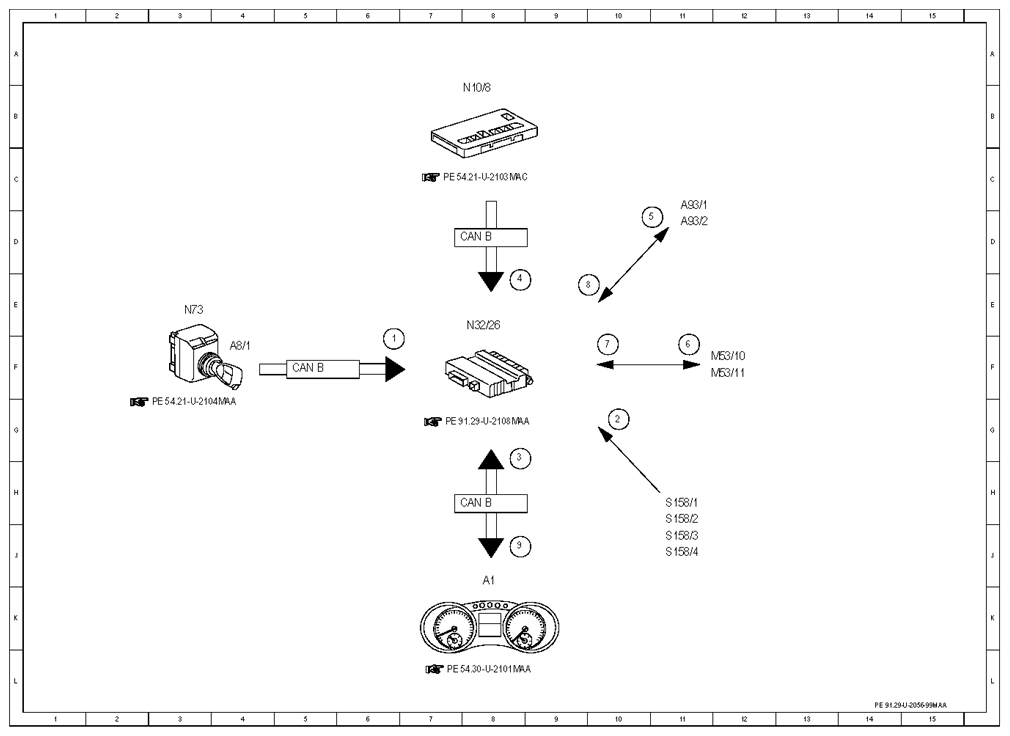

| 1 |
Circuit 30, status |
6 F |
| 2 |
Folding backrest switch, signal |
10 G |
| 3 |
Vehicle speed, signal |
8 H |
| 4 |
Rear doors and rear-end door, status |
8 E |
| 5 |
Backrest release unit, actuation |
10 D |
| 6 |
Folding rear bench seat motor, actuation |
11 F |
| 7 |
Hall sensors, signal |
10 F |
| 8 |
End position switch, status |
9 E |
| 9 |
Instrument cluster, message |
8 J |
| A1 |
Instrument cluster |
8 K |
| A8/1 |
Transmitter key |
4 F |
| A93/1 |
Left backrest release unit |
11 D |
| A93/2 |
Right backrest release unit |
11 D |
| CAN B |
Interior CAN |
5 F |
| CAN B |
Interior CAN |
7 H |
| CAN B |
Interior CAN |
7 D |
| M53/10 |
Left folding backrest motor |
11 F |
| M53/11 |
Right folding backrest motor |
11 F |
| N10/8 |
Rear SAM control module |
7 B |
| N32/26 |
Folding rear bench seat control unit |
8 E |
| N73 |
EIS [EZS] control unit |
3 E |
| S158/1 |
Front switch for left folding backrest |
11 H |
| S158/2 |
Rear switch for left folding backrest |
11 J |
| S158/3 |
Front switch for right folding backrest |
11 J |
| S158/4 |
Rear switch for right folding backrest |
11 J |
