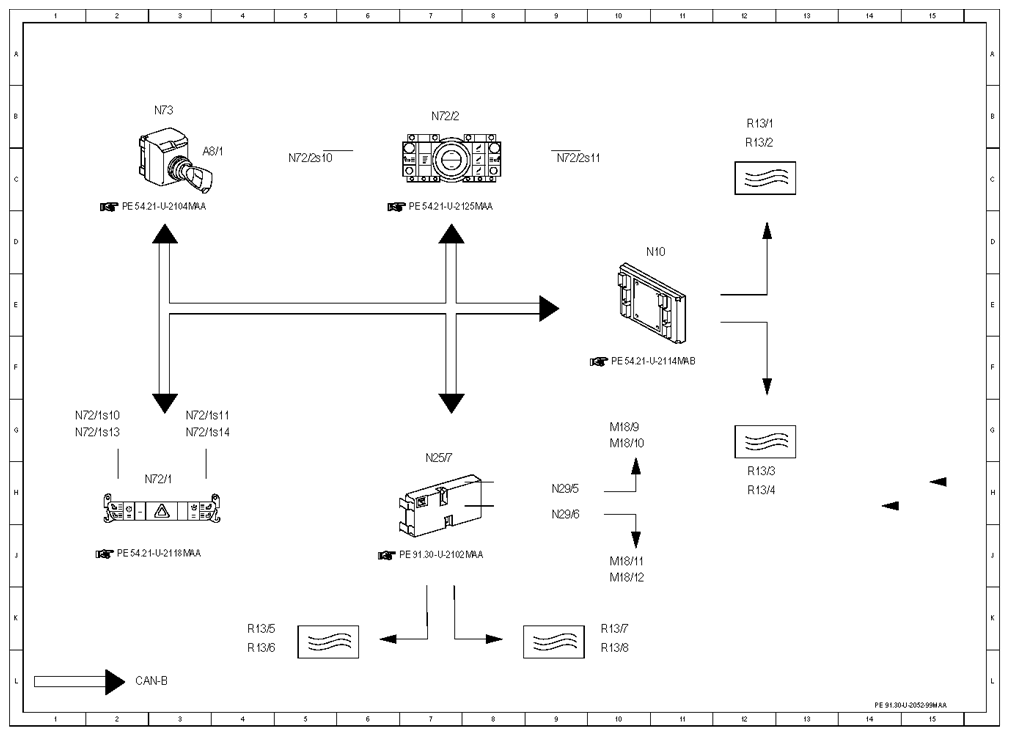

| A8/1 |
Transmitter key |
3 C |
| M18/10 |
Left front seat backrest ventilation motor group |
10 G |
| M18/11 |
Right front seat cushion ventilation motor group |
10 J |
| M18/12 |
Right front seat backrest ventilation motor group |
10 K |
| M18/9 |
Left front seat cushion ventilation motor group |
10 G |
| N10 |
Front SAM control unit |
10 D |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
7 H |
| N29/5 |
Left front seat ventilation blower regulator |
9 H |
| N29/6 |
Right front seat ventilation blower regulator |
9 J |
| N72/1 |
Upper control panel control module |
2 H |
| N72/1s10 |
Left front HS switch |
1 G |
| N72/1s11 |
Right front HS switch |
3 G |
| N72/1s13 |
Left front seat ventilation switch |
1 G |
| N72/1s14 |
Right front seat ventilation switch |
3 G |
| N72/2 |
RCP [HBF] control module |
7 B |
| N72/2s10 |
Left HS [SIH] switch, 2nd seat row |
5 C |
| N72/2s11 |
Right HS [SIH] switch, 2nd seat row |
9 C |
| N73 |
DI control module |
3 B |
| R13/1 |
Left front seat heated cushion |
12 B |
| R13/2 |
Left front backrest heated cushion |
12 C |
| R13/3 |
Right front seat heated cushion |
12 H |
| R13/4 |
Right front backrest heated cushion |
12 H |
| R13/5 |
Left 2nd row seat heated cushion |
4 K |
| R13/6 |
Left 2nd row backrest heated cushion |
4 L |
| R13/7 |
Right 2nd row seat heated cushion |
10 K |
| R13/8 |
Right 2nd row backrest heated cushion |
10 L |
