| A1 |
Instrument cluster |
16 F |
| A1e15 |
Airbag indicator and warning lamp |
17 F |
| A53 |
Left side airbag sensor |
9 C |
| A54 |
Right side airbag sensor |
9 C |
| A8/1 |
Transmitter key |
2 J |
| B48/1 |
Driver-side frontal acceleration sensor |
9 C |
| B48/10 |
Rear door pressure sensor, passenger-side |
9 E |
| B48/11 |
Sensor, WSS (Weight Sensing System), left front |
15 B |
| B48/12 |
Sensor, WSS (Weight Sensing System), right front |
15 C |
| B48/13 |
Sensor, WSS (Weight Sensing System), left rear |
15 C |
| B48/14 |
Sensor, WSS (Weight Sensing System), right rear |
15 C |
| B48/2 |
Passenger-side frontal acceleration sensor |
9 C |
| B48/7 |
Driver door pressure sensor |
9 D |
| B48/8 |
Front passenger door pressure sensor |
9 D |
| B48/9 |
Rear door pressure sensor, driver-side |
9 D |
| E1e5 |
Left turn signal lamp |
23 G |
| E2e5 |
Right turn signal lamp |
23 G |
| E3e1 |
Left turn signal lamp |
23 B |
| E4e1 |
Right turn signal lamp |
23 B |
| E6/5 |
Left exterior mirror turn signal lamp |
23 J |
| E6/6 |
Right exterior mirror turn signal lamp |
23 D |
| L |
|
1 L |
| L |
|
24 L |

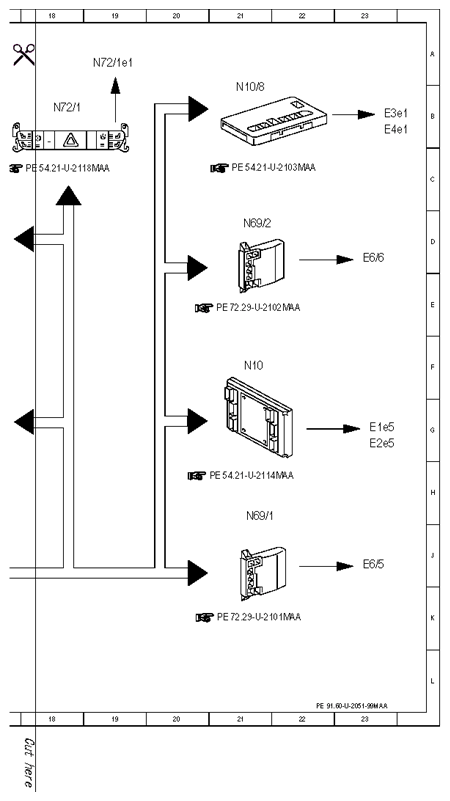

| N10 |
Front SAM control unit |
21 F |
| N10/8 |
Rear SAM control module |
21 B |
| N123/4 |
Emergency call system control unit |
11 C |
| N2/13 |
WSS control unit (Weight Sensing System) |
16 D |

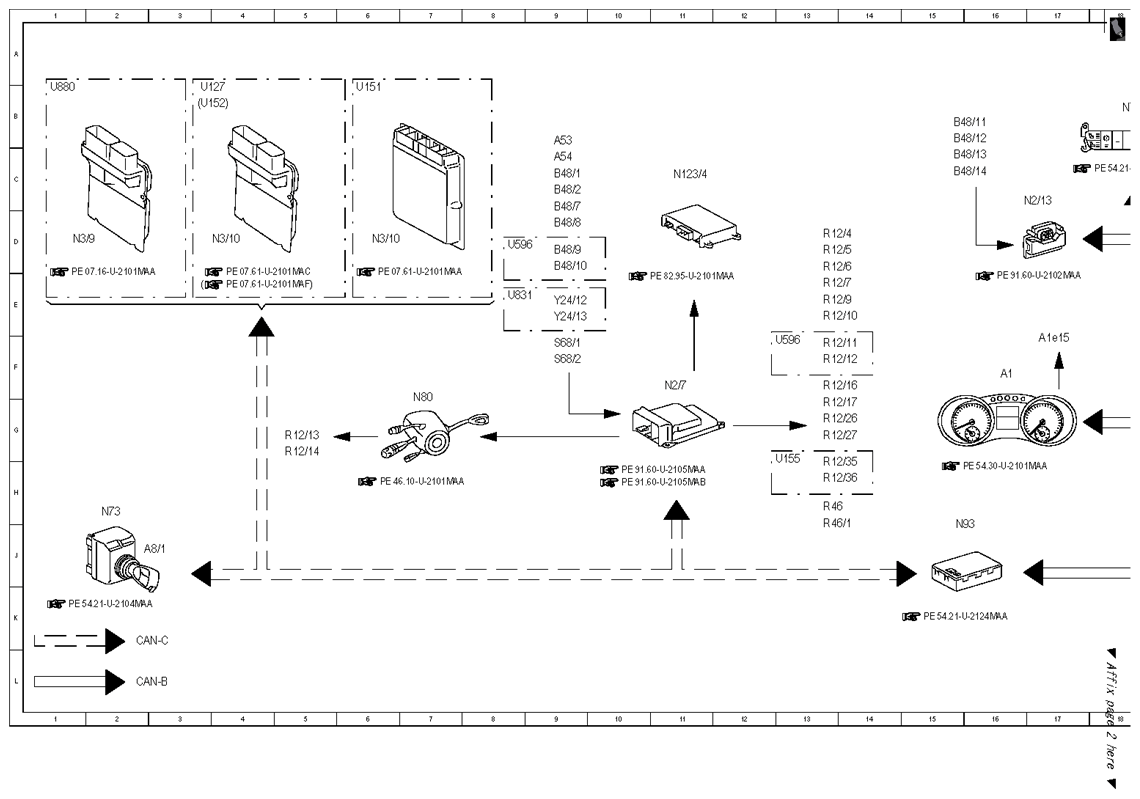

| N2/7 |
Restraint systems control module |
11 F |
| N3/9 |
CDI control module |
1 D |
| N69/1 |
Left front door control module |
21 J |
| N69/2 |
Right front door control module |
21 D |
| N72/1 |
Upper control panel control module |
18 B |
| N72/1e1 |
Automatic child seat recognition airbag OFF indicator lamp |
19 A |
| N73 |
EIS [EZS] control unit |
2 H |
| N80 |
Steering column module |
7 G |
| N93 |
Central gateway control module |
15 J |
| R12/10 |
Right side airbag ignition squib |
13 E |
| R12/11 |
Left 2nd row side airbag ignition squib |
13 F |
| R12/12 |
Right 2nd row side airbag ignition squib |
13 F |
| R12/13 |
Driver airbag ignition squib 1 |
5 G |
| R12/14 |
Driver airbag ignition squib 2 |
5 H |
| R12/16 |
Left window airbag squib |
13 F |
| R12/17 |
Right window airbag squib |
13 G |
| R12/26 |
Front passenger belt force limiter |
13 G |
| R12/27 |
Driver belt force limiter |
13 G |
| R12/35 |
Left 3rd row ETR [GUS] squib |
13 H |
| R12/36 |
Right 3rd row ETR [GUS] squib |
13 H |
| R12/4 |
Front passenger airbag ignition squib 1 |
13 D |
| R12/5 |
Front passenger airbag ignition squib 2 |
13 D |
| R12/6 |
Left 2nd row ETR [GUS] squib |
13 E |
| R12/7 |
Right 2nd row ETR [GUS] squib |
13 E |
| R12/9 |
Driver side airbag squib |
13 E |
| R46 |
Driver buckle ETR squib |
13 H |
| R46/1 |
Front passenger buckle ETR squib |
13 J |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
9 F |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
9 F |
| U127 |
Valid for engine 272, engine 273 KE |
3 B |
| U151 |
Valid for engine 113 |
6 B |
| U152 |
Valid for engine 156 |
3 B |
| U155 |
Valid for 164.8 |
12 H |
| U596 |
Valid for rear side airbag |
8 D |
| U596 |
Valid for rear side airbag |
12 F |
| U831 |
Valid for crash-active head restraints |
8 E |
| U880 |
Valid for engine 642 |
1 B |
| Y24/12 |
Driver NECK-PRO head restraint solenoid |
9 E |
| Y24/13 |
Front passenger NECK-PRO head restraint solenoid |
9 E |
