| A0 |
Color code key |
80A |

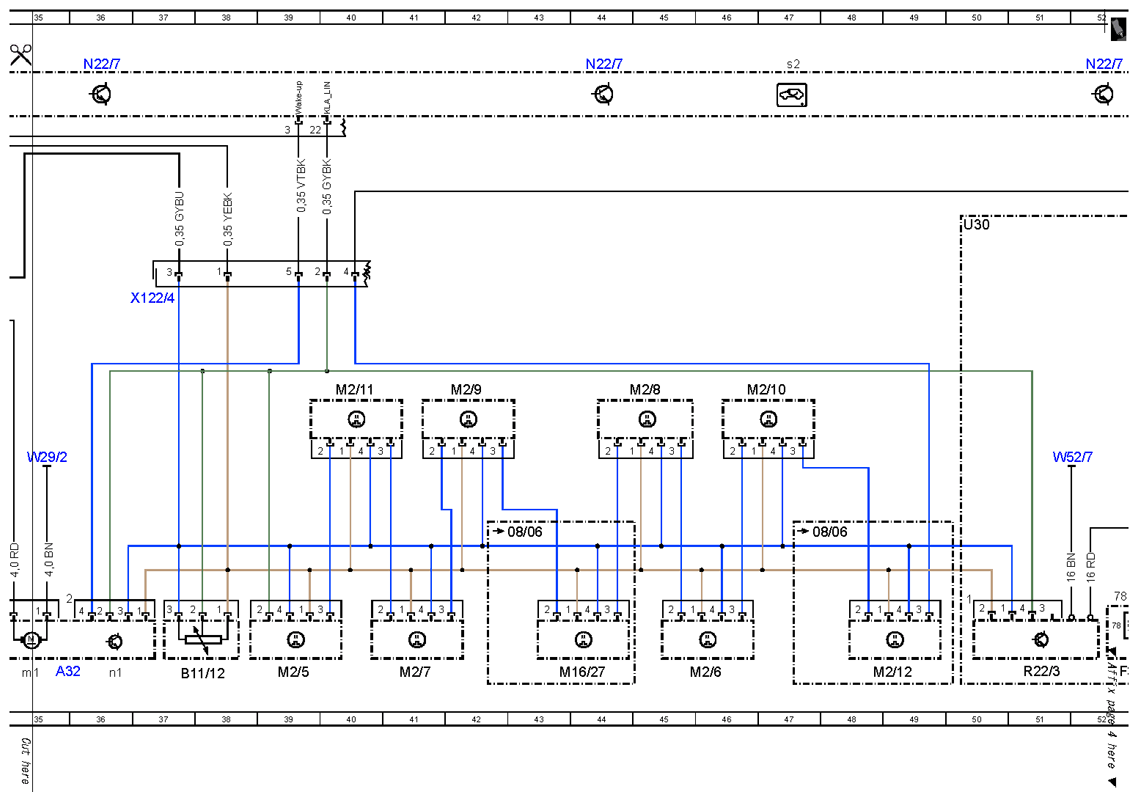

| A32 |
AC air recirculation unit |
35L |
| A32m1 |
Blower motor |
35L |
| A32n1 |
Blower regulator |
36L |
| A9 |
Refrigerant compressor |
14L |
| A9 |
Refrigerant compressor |
16L |
| A9 |
Refrigerant compressor |
20L |
| A9 |
Refrigerant compressor |
23L |
| A9 |
Refrigerant compressor |
26L |
| A9x1 |
Refrigerant compressor connector |
19K |
| A9x1 |
Refrigerant compressor connector |
13K |
| B10/31 |
Left side outlet temperature sensor |
64L |
| B10/32 |
Right side outlet temperature sensor |
63L |
| B10/33 |
Left center outlet temperature sensor |
67L |
| B10/34 |
Right center outlet temperature sensor |
66L |
| B10/35 |
Left footwell temperature sensor |
65L |
| B10/36 |
Right footwell temperature sensor |
29L |
| B10/6 |
Evaporator temperature sensor |
30L |
| B10/7 |
Center rear interior temperature sensor |
62L |
| B11/12 |
Dew point sensor |
37L |
| B12 |
Refrigerant pressure sensor |
11L |
| B14 |
Outside temperature display temperature sensor |
80L |
| B14x1 |
Outside temperature indicator temperature sensor connector |
79K |

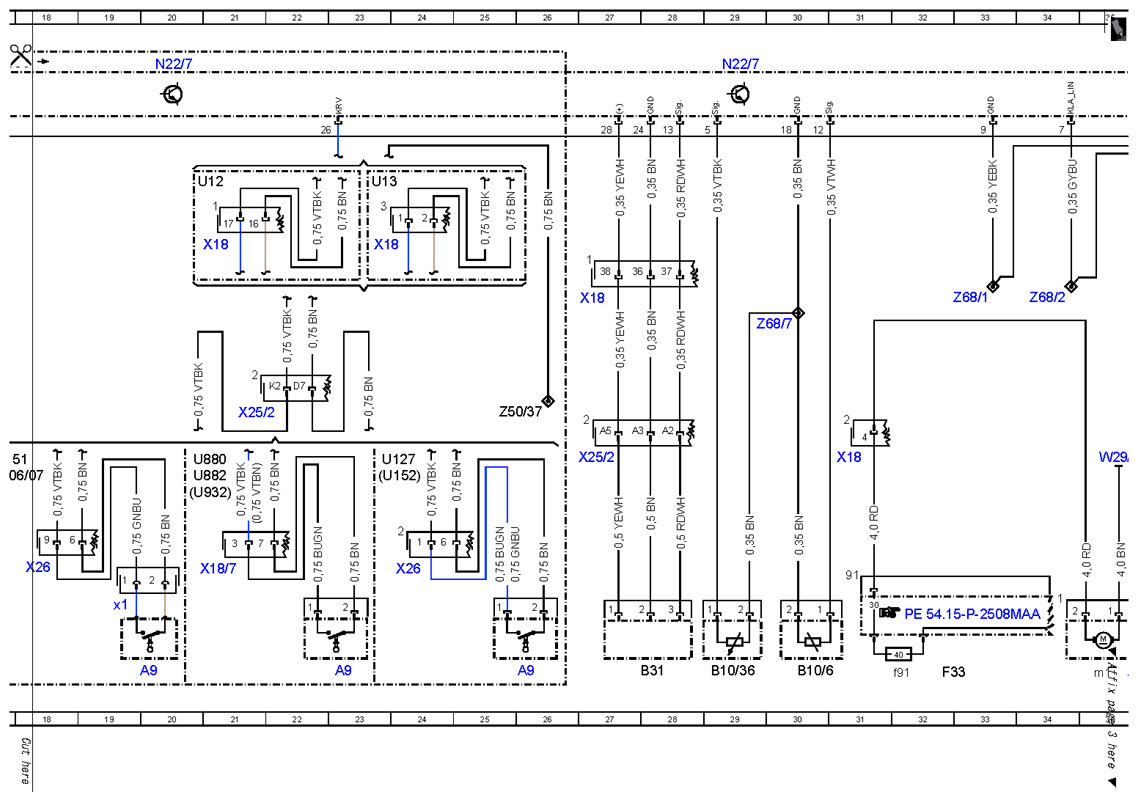

| B31 |
Emissions sensor |
28L |

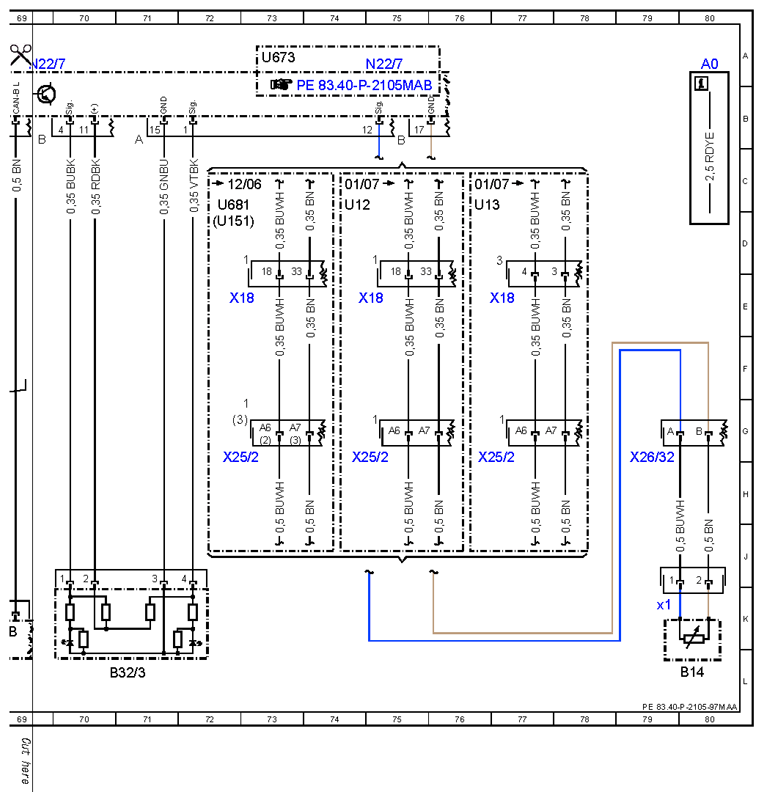

| B32/3 |
Dual sun sensor |
71L |
| CAN B |
Interior CAN |
68K |

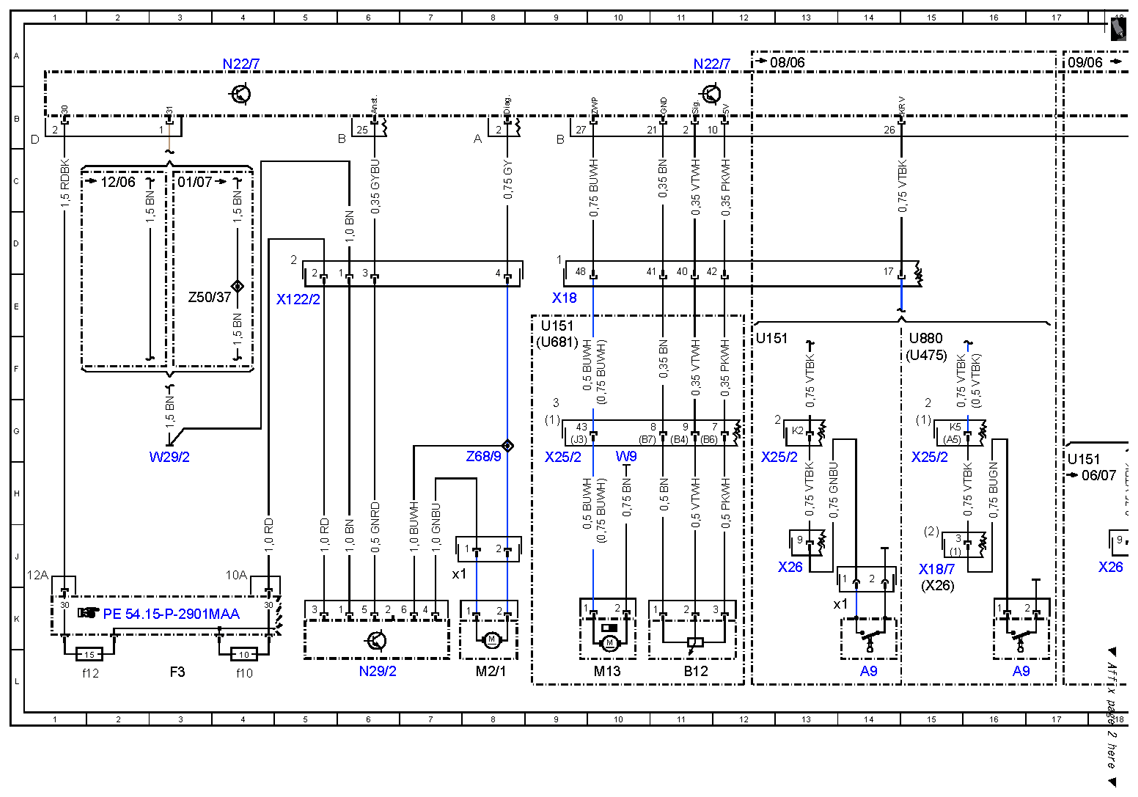

| F3 |
Cockpit fuse box |
3L |
| F33 |
Battery compartment prefuse box |
32L |
| F33 |
Battery compartment prefuse box |
52L |
| F33f78 |
Fuse 78 |
52K |
| F33f91 |
Fuse 91 |
31L |
| F3f10 |
Fuse 10 |
4L |
| F3f12 |
Fuse 12 |
2L |
| M13 |
Coolant circulation pump |
10L |

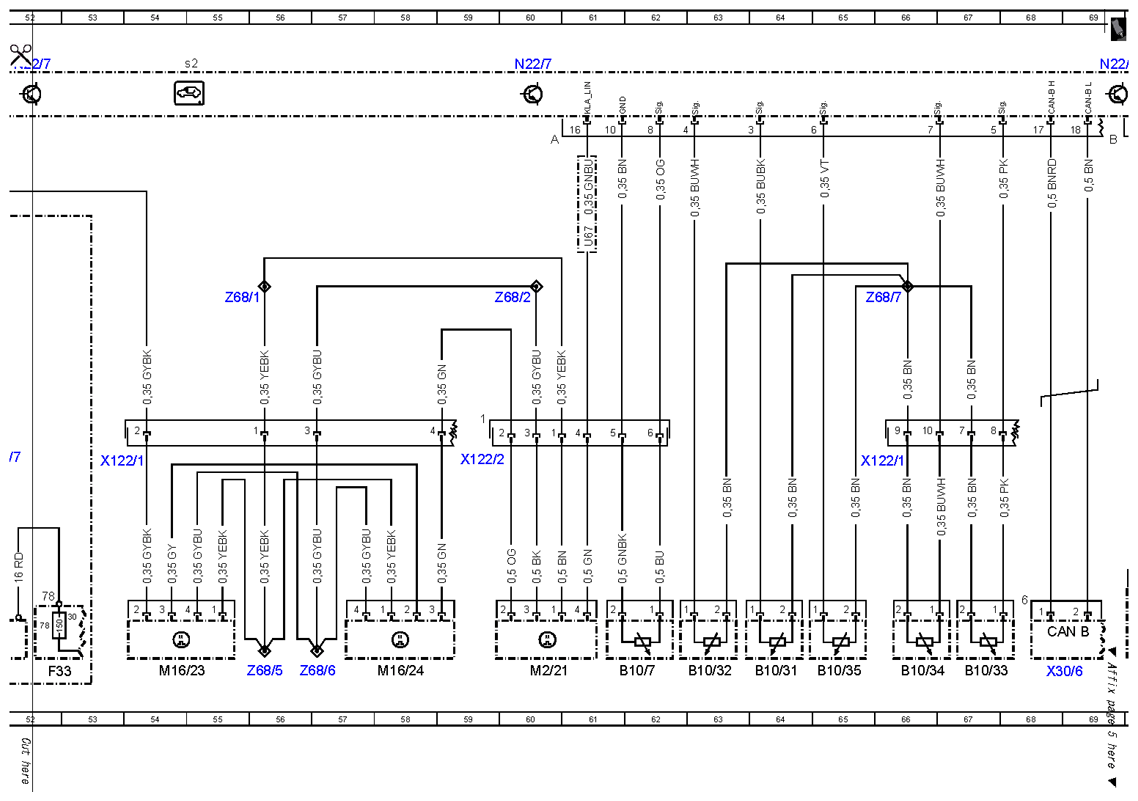

| M16/23 |
Left center air flap actuator motor |
54L |
| M16/24 |
Right center air flap actuator motor |
58L |
| M16/27 |
Diverter flap actuator motor |
44L |
| M2/1 |
Booster blower motor |
8L |
| M2/10 |
Left footwell flap actuator motor |
46F |
| M2/11 |
Right footwell flap actuator motor |
40F |
| M2/12 |
Rear shutoff flap actuator motor |
49L |
| M2/21 |
Rear air distribution flap actuator motor |
60L |
| M2/5 |
Fresh air/air recirculation flaps actuator motor |
39L |
| M2/6 |
Left blending air flap actuator |
46L |
| M2/7 |
Right blending air flap actuator |
41L |
| M2/8 |
Left defroster vent flap actuator motor |
45F |
| M2/9 |
Right defroster vent flap actuator motor |
42F |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
4A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
11A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
20A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
29A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
36A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
44A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
52A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
60A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
69A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
75A |
| N22/7s2 |
Air recirculation switch |
47A |
| N22/7s2 |
Air recirculation switch |
55A |
| N29/2 |
Booster blower electronic blower controller |
6L |
| N29/2x1 |
Rear air conditioning electronic blower regulator connector |
7J |
| R22/3 |
PTC heater booster |
51L |
| U12 |
Valid for left-hand drive vehicles |
20C |
| U12 |
Valid for left-hand drive vehicles |
74C |
| U127 |
Valid for engine 272, engine 273 KE |
23H |
| U13 |
Valid for right-hand drive vehicles |
23C |
| U13 |
Valid for right-hand drive vehicles |
76C |
| U151 |
Valid for engine 113 |
17H |
| U151 |
Valid for engine 113 |
9E |
| U151 |
Valid for engine 113 |
12F |
| U151 |
Valid for engine |
113 |
| U152 |
Valid for engine |
156 |
| U30 |
Valid for heater booster |
50D |
| U475 |
Valid for M |
272 |
| U67 |
Not valid for rear air conditioning |
61D |
| U673 |
Valid for comfort AAC [K-KLA] |
73A |
| U681 |
Valid for all except M113 |
72C |
| U681 |
Valid for all except M113 |
9E |
| U880 |
Valid for engine 642 |
20H |
| U880 |
Valid for engine 642 |
15F |
| U882 |
Valid for engine 629 |
20H |
| U932 |
Valid for engine 642 BLUETEC |
21H |
| W29/2 |
Ground (right A-pillar) |
3H |
| W29/2 |
Ground (right A-pillar) |
35G |
| W52/7 |
Ground (PTC heater booster) |
51G |
| W9 |
Ground (left front, at lamp unit) |
10G |
| X122/1 |
Center air outlet connector |
53H |
| X122/1 |
Center air outlet connector |
66H |
| X122/2 |
Booster blower connector (air conditioning) |
5E |
| X122/2 |
Booster blower connector (air conditioning) |
59H |
| X122/4 |
Cockpit AC connector |
37E |
| X18 |
Interior/cockpit connector |
31H |
| X18 |
Interior/cockpit connector |
9E |
| X18 |
Interior/cockpit connector |
27E |
| X18 |
Interior/cockpit connector |
21D |
| X18 |
Interior/cockpit connector |
23D |
| X18 |
Interior/cockpit connector |
73E |
| X18 |
Interior/cockpit connector |
75E |
| X18 |
Interior/cockpit connector |
77E |
| X18/7 |
Interior/engine connector |
15J |
| X18/7 |
Interior/engine connector |
21J |
| X25/2 |
Engine compartment/interior compartment connector |
9H |
| X25/2 |
Engine compartment/interior compartment connector |
15H |
| X25/2 |
Engine compartment/interior compartment connector |
13H |
| X25/2 |
Engine compartment/interior compartment connector |
21G |
| X25/2 |
Engine compartment/interior compartment connector |
27H |
| X25/2 |
Engine compartment/interior compartment connector |
72H |
| X25/2 |
Engine compartment/interior compartment connector |
75H |
| X25/2 |
Engine compartment/interior compartment connector |
77H |
| X26 |
Interior and engine wiring harness connector |
13J |
| X26 |
Interior and engine wiring harness connector |
18J |
| X26 |
Interior and engine wiring harness connector |
24J |
| X26 |
Interior and engine wiring harness connector |
15J |
| X26/32 |
Left front engine compartment/bumper connector |
79H |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
68L |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
26G |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
3E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
33E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
55E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
34E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
60E |
| Z68/5 |
Center ventilator circuit 31 climate control LIN connector sleeve |
56L |
| Z68/6 |
Center ventilator climate control LIN positive line connector sleeve |
56L |
| Z68/7 |
Cockpit AC system sensor ground |
30E |
| Z68/7 |
Cockpit AC system sensor ground |
66E |
| Z68/9 |
Rear air conditioning blower regulator diagnosis connector sleeve |
8G |
