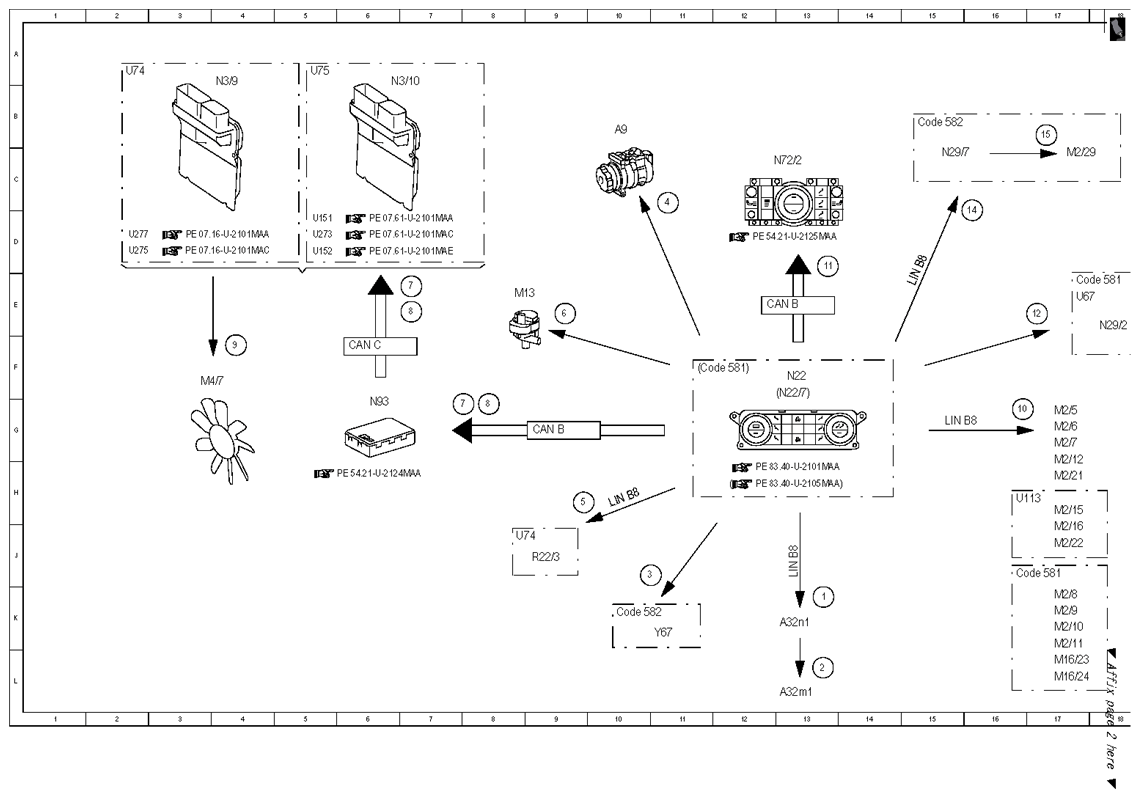

| 1 |
Blower motor, request |
13 K |
| 10 |
Actuator motors, actuation |
16 G |
| 11 |
RCP control unit, actuation |
13 E |
| 12 |
Booster blower motor, request |
17 E |
| 13 |
Booster blower motor, actuation |
19 E |
| 14 |
Rear blower motor, request |
16 D |
| 15 |
Rear blower motor, actuation |
17 B |
| 2 |
Blower motor, actuation |
13 L |
| 3 |
Rear air conditioning refrigerant shutoff valve, actuation |
10 J |
| 4 |
Refrigerant compressor, actuation |
11 D |
| 5 |
PTC heater booster, actuation |
9 H |
| 6 |
Hot water circulation pump, actuation |
9 E |
| 7 |
Idle speed increase, request |
7 E |
| 7 |
Idle speed increase, request |
7 G |
| 8 |
Electric radiator fan, request |
7 E |
| 8 |
Electric radiator fan, request |
8 G |
| 9 |
Electric radiator fan, actuation |
4 F |
| A32m1 |
Blower motor |
13 L |
| A32n1 |
Blower regulator |
13 K |
| A9 |
AC compressor |
10 B |
| CAN B |
Interior CAN |
9 G |
| CAN B |
Interior CAN |
12 E |
| CAN C |
Engine compartment CAN |
6 F |
| Code 581 |
Comfort automatic air conditioning |
11 F |
| Code 581 |
Comfort automatic air conditioning |
16 J |
| Code 581 |
Comfort automatic air conditioning |
17 E |
| Code 582 |
Rear air conditioning |
10 K |
| Code 582 |
Rear air conditioning |
15 B |
| LIN B8 |
Climate control LIN |
10 H |
| LIN B8 |
Climate control LIN |
13 J |
| LIN B8 |
Climate control LIN |
15 E |
| LIN B8 |
Climate control LIN |
15 G |
| M13 |
Coolant circulation pump |
8 E |
| M16/23 |
Left center air flap actuator motor |
17 L |
| M16/24 |
Right center air flap actuator motor |
17 L |

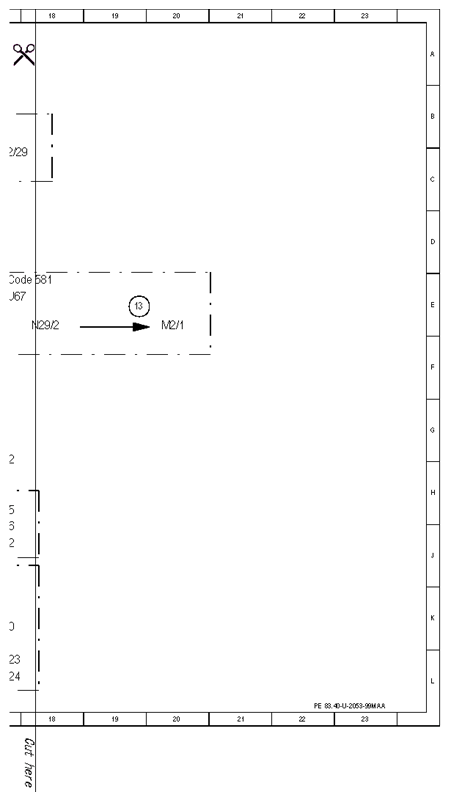

| M2/1 |
Booster blower motor |
20 E |
| M2/10 |
Left footwell flap actuator motor |
17 K |
| M2/11 |
Right footwell flap actuator motor |
17 L |
| M2/12 |
Rear shutoff flap actuator motor |
17 H |
| M2/15 |
Left and right footwell flaps actuator |
17 H |
| M2/16 |
Left and right defroster flaps actuator |
17 J |
| M2/21 |
Rear air distribution flap actuator motor |
17 H |
| M2/22 |
Center outlet flap actuator motor |
17 J |
| M2/29 |
Rear air conditioning blower motor |
17 C |
| M2/5 |
Fresh air/recirculated air flaps actuator motor |
17 G |
| M2/6 |
Left blending air flap actuator |
17 G |
| M2/7 |
Right blending air flap actuator |
17 G |
| M2/8 |
Left defroster vent flap actuator motor |
17 K |
| M2/9 |
Right defroster vent flap actuator motor |
17 K |
| M4/7 |
Electric suction fan engine and AC with integrated control |
3 F |
| N22 |
AAC push-button control module |
13 F |
| N22/7 |
Comfort AAC push-button control module |
12 G |
| N29/2 |
Booster blower electronic blower controller |
18 E |
| N29/7 |
Rear air conditioning blower regulator |
15 C |
| N3/10 |
ME-SFI [ME] control module |
6 B |
| N3/9 |
CDI control module |
4 B |
| N72/2 |
RCP [HBF] control module |
12 C |
| N93 |
Central gateway control module |
6 G |
| R22/3 |
PTC heater booster |
9 J |
| U113 |
Valid for 2-zone THERMATIC |
16 H |
| U151 |
Valid for engine 113 |
5 D |
| U152 |
Valid for engine 156 |
5 D |
| U273 |
Valid for engine 272 except 272.973, 273 |
5 D |
| U275 |
Valid for engine 642.8 |
2 D |
| U277 |
Valid for engine 642.9 |
2 D |
| U67 |
Not valid for rear air conditioning |
17 E |
| U74 |
Valid for diesel vehicles |
2 A |
| U74 |
Valid for diesel vehicles |
8 J |
| U75 |
Valid for gasoline engines |
5 A |
| Y67 |
Rear AC refrigerant shutoff valve |
11 K |
