| 1 |
Circuit 15, status |
16 H |
| 10 |
Tilting/sliding roof motor, signal |
21 H |
| 11 |
Sun sensor, signal |
19 J |
| 12 |
Coolant temperature sensor, signal |
5 D |
| 12 |
Coolant temperature sensor, signal |
5 K |
| 12 |
Coolant temperature sensor, signal |
18 J |
| 13 |
Engine speed, signal |
6 K |
| 13 |
Engine speed, signal |
18 J |
| 14 |
RCP control unit, signal |
20 E |
| 15 |
Rear air conditioning evaporator temperature sensor, signal |
21 F |
| 16 |
Rear-end door locking unit, status |
21 G |
| 16 |
Rear-end door locking unit, status |
35 G |
| 17 |
Rotary tumbler microswitch, status |
22 G |
| 17 |
Rotary tumbler microswitch, status |
34 F |
| 18 |
Vent window motor, signal |
22 G |
| 18 |
Vent window motor, signal |
35 G |
| 19 |
Voice input, status |
18 E |
| 2 |
Vehicle speed, signal |
17 E |
| 20 |
Evaporator drying, request |
16 D |
| 3 |
Power window motor, signal |
20 J |
| 3 |
Power window motor, signal |
21 J |
| 4 |
Air outlet temperature sensor, signal |
21 F |
| 5 |
Dew point sensor, signal |
16 J |
| 6 |
Outside temperature sensor, signal |
16 G |
| 7 |
Refrigerant pressure sensor, signal |
16 F |
| 8 |
Pollutant sensor, signal |
16 F |
| 9 |
Evaporator temperature sensor, signal |
21 E |

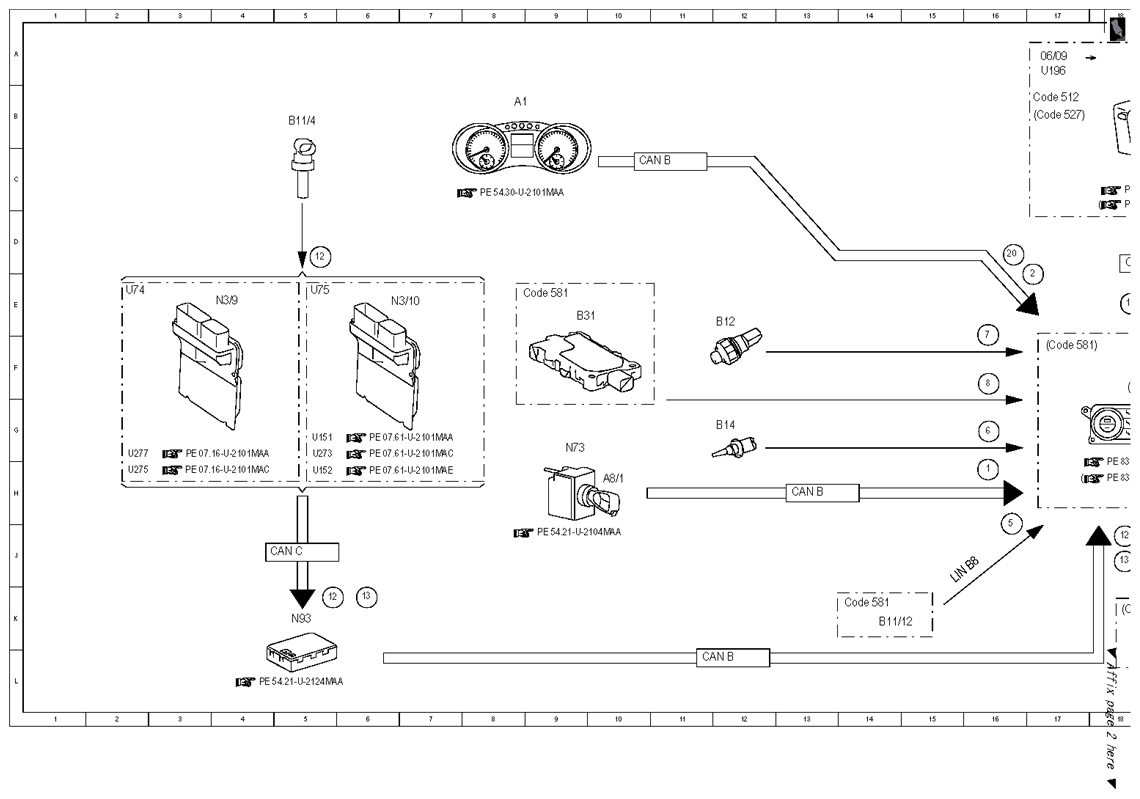

| A1 |
Instrument cluster |
8 B |

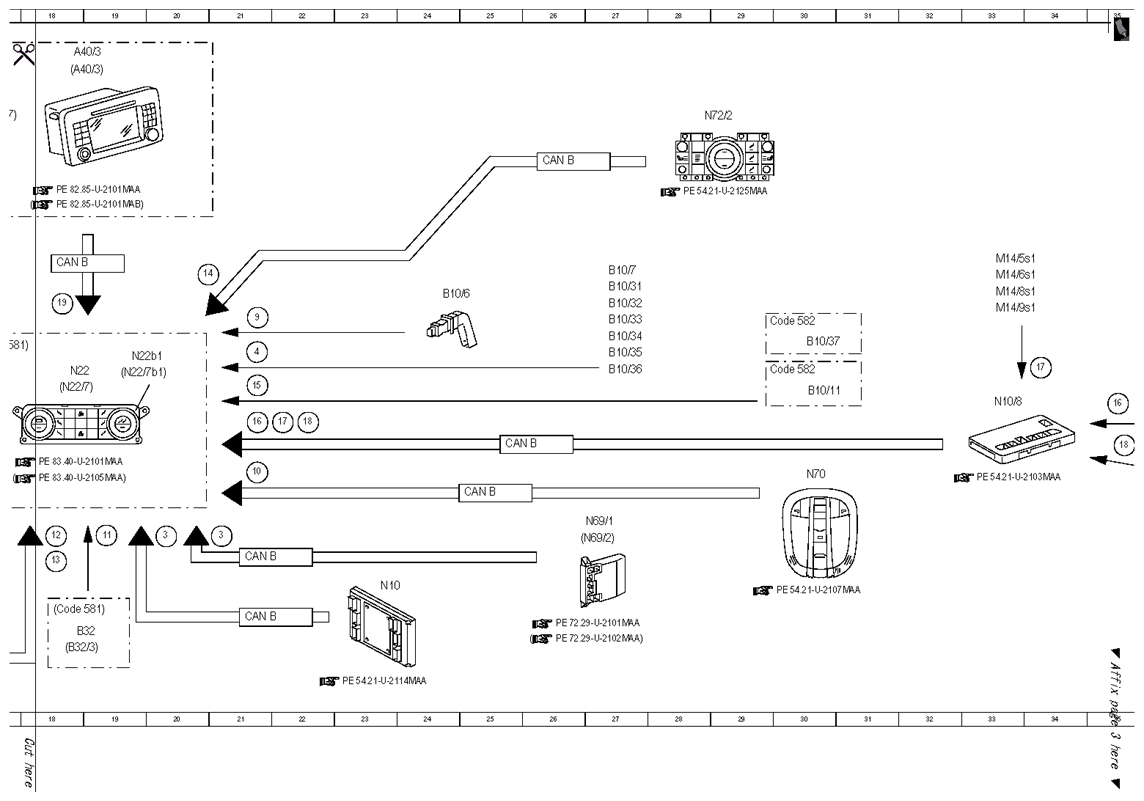

| A40/3 |
COMAND operating, display and control module |
18 A |
| A40/3 |
COMAND operating, display and control module |
18 A |

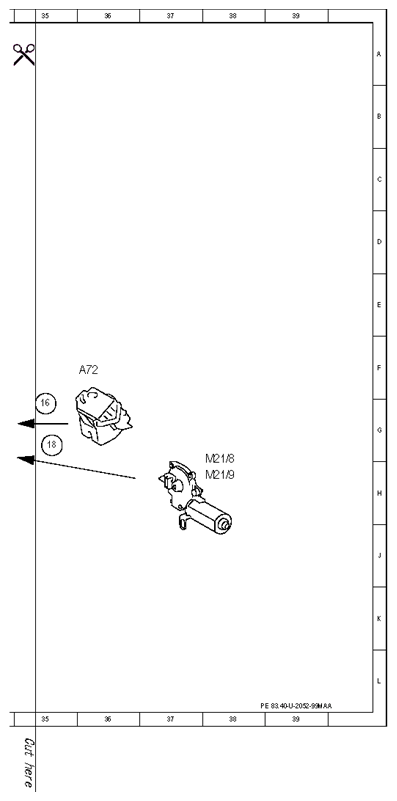

| A72 |
Rear door locking unit |
35 F |
| A8/1 |
Transmitter key |
10 H |
| B10/11 |
Rear air conditioning evaporator temperature sensor |
30 G |
| B10/31 |
Left side outlet temperature sensor |
27 E |
| B10/32 |
Right side outlet temperature sensor |
27 E |
| B10/33 |
Left center outlet temperature sensor |
27 E |
| B10/34 |
Right center outlet temperature sensor |
27 F |
| B10/35 |
Left footwell temperature sensor |
27 F |
| B10/36 |
Right footwell temperature sensor |
27 F |
| B10/37 |
Rear headroom AC temperature sensor |
30 F |
| B10/6 |
Evaporator temperature sensor |
24 E |
| B10/7 |
Center rear interior temperature sensor |
27 E |
| B11/12 |
Dew point sensor |
14 K |
| B11/4 |
Coolant temperature sensor |
5 B |
| B12 |
Refrigerant pressure sensor |
12 E |
| B14 |
Ambient temperature display temperature sensor |
12 G |
| B31 |
Emissions sensor |
9 E |
| B32 |
Sun sensor |
18 K |
| B32/3 |
Dual sun sensor |
18 L |
| CAN B |
Interior CAN |
10 C |
| CAN B |
Interior CAN |
11 L |
| CAN B |
Interior CAN |
13 H |
| CAN B |
Interior CAN |
18 D |
| CAN B |
Interior CAN |
21 K |
| CAN B |
Interior CAN |
21 J |
| CAN B |
Interior CAN |
25 H |
| CAN B |
Interior CAN |
25 G |
| CAN B |
Interior CAN |
26 C |
| CAN C |
Engine compartment CAN |
4 J |
| Code 512 |
COMAND APS with DVD changer |
17 B |
| Code 527 |
COMAND APS (with navigation) |
17 B |
| Code 581 |
Comfort automatic air conditioning |
8 E |
| Code 581 |
Comfort automatic air conditioning |
14 K |
| Code 581 |
Comfort automatic air conditioning |
17 F |
| Code 581 |
Comfort automatic air conditioning |
18 K |
| Code 582 |
Rear air conditioning |
29 F |
| Code 582 |
Rear air conditioning |
29 E |
| LIN B8 |
Climate control LIN |
15 K |
| M14/5s1 |
Right front door rotary tumbler microswitch |
33 D |
| M14/6s1 |
Left front door rotary tumbler microswitch |
33 E |
| M14/8s1 |
Left rear door rotary tumbler microswitch |
33 E |
| M14/9s1 |
Right rear door rotary tumbler microswitch |
33 E |
| M21/8 |
Left vent window motor |
38 H |
| M21/9 |
Right vent window motor |
38 H |
| N10 |
Front SAM control unit |
23 K |
| N10/8 |
Rear SAM control module |
33 G |
| N22 |
AAC push-button control module |
18 F |
| N22/7 |
Comfort AAC push-button control module |
18 F |
| N22/7b1 |
In-car temperature sensor |
19 F |
| N22b1 |
In-car temperature sensor |
19 F |
| N3/10 |
ME-SFI [ME] control module |
6 E |
| N3/9 |
CDI control module |
4 E |
| N69/1 |
Left front door control module |
26 J |
| N69/2 |
Right front door control module |
26 J |
| N70 |
Overhead control panel control module |
30 H |
| N72/2 |
RCP [HBF] control module |
28 B |
| N73 |
EIS [EZS] control unit |
9 G |
| N93 |
Central gateway control module |
5 K |
| U151 |
Valid for engine 113 |
5 G |
| U152 |
Valid for engine 156 |
5 H |
| U196 |
Valid for VCS [SBS] |
17 A |
| U273 |
Valid for engine 272 except 272.973, 273 |
5 H |
| U275 |
Valid for engine 642.8 |
2 H |
| U277 |
Valid for engine 642.9 |
2 H |
| U74 |
Valid for diesel vehicles |
2 E |
| U75 |
Valid for gasoline engines |
5 E |
