Electric wiring diagram of ground wiring - PE00.19-U-2800-99MAF

MODEL 164 W6/6, W15/2, Solder joints/Z connector sleeves Z204/5, Z204/7

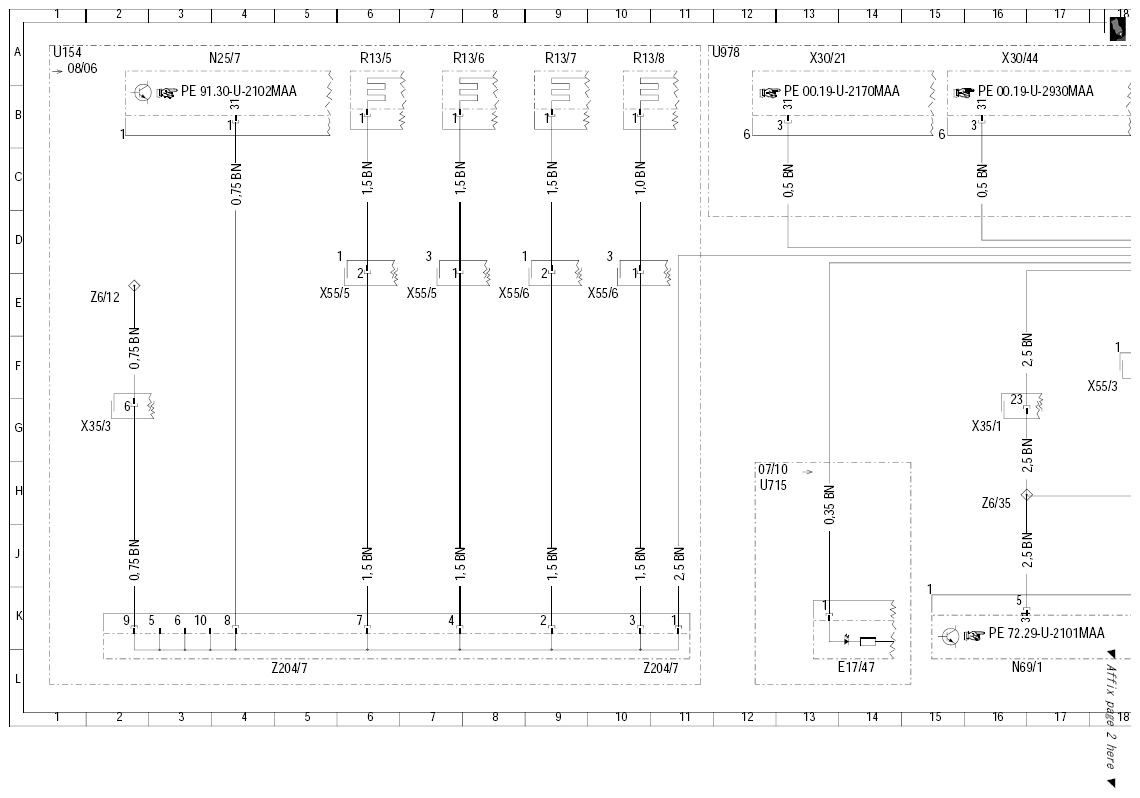

Fig 1: Electric Ground - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

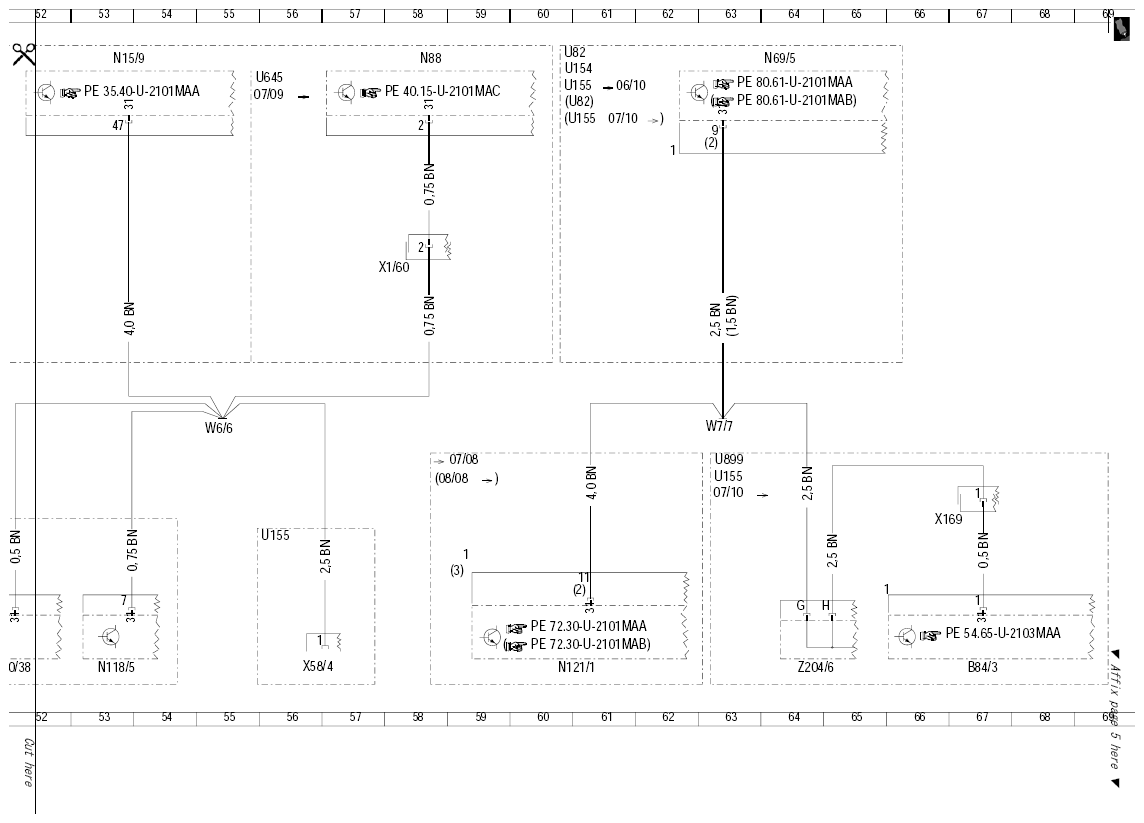

Fig 2: Electric Ground - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

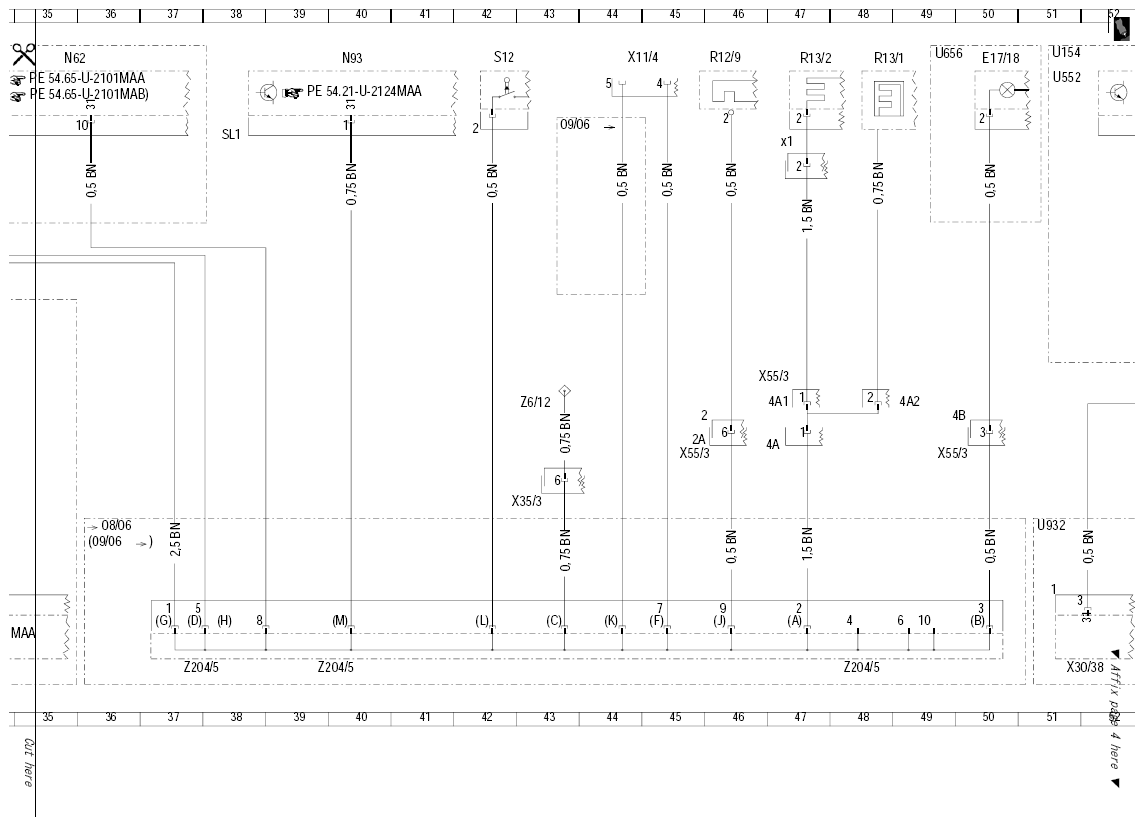

Fig 3: Electric Ground - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

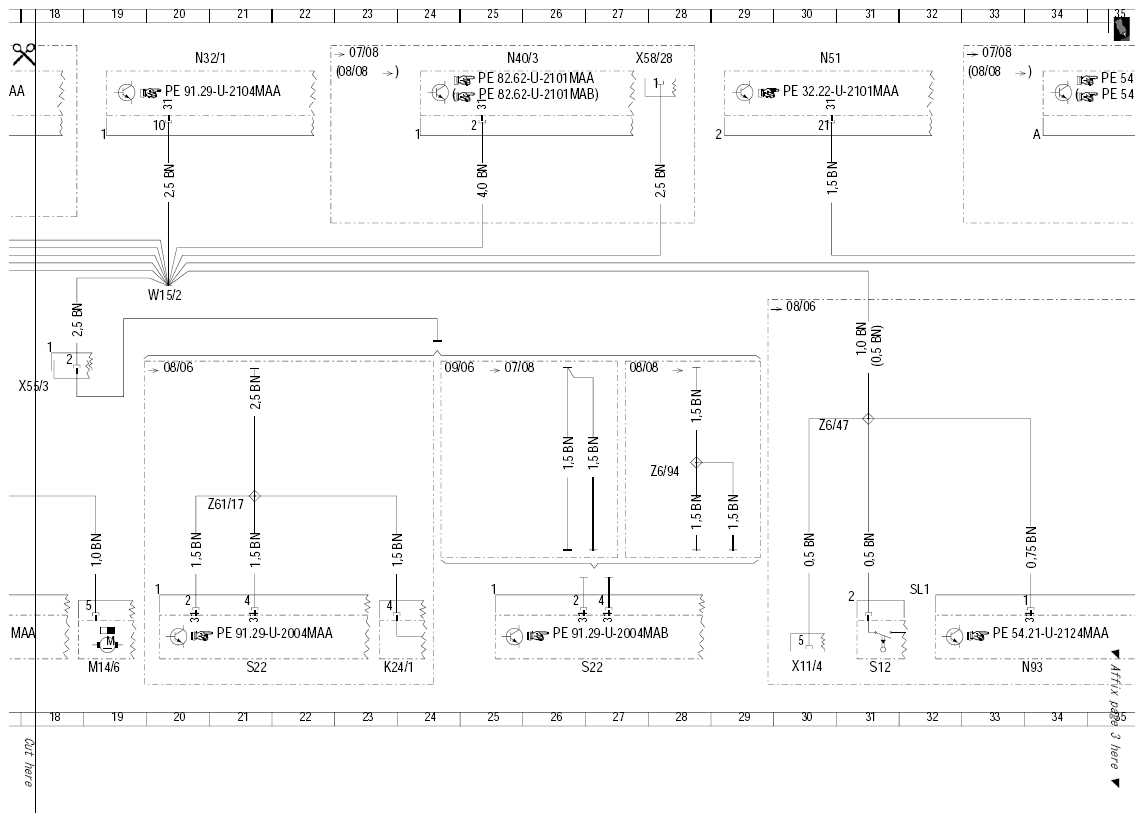

Fig 4: Electric Ground - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

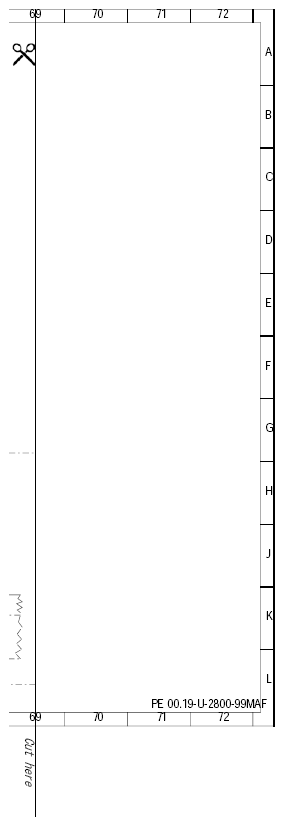

Fig 5: Electric Ground - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
