Electric wiring diagram of ground wiring - PE00.19-U-2800-99MAE

MODEL 164 W26, W29/2, W29/8, W8/1, Solder joints/Z connector sleeves Z6/14, Z6/15, Z43, Z50/3, Z50/4, Z50/36

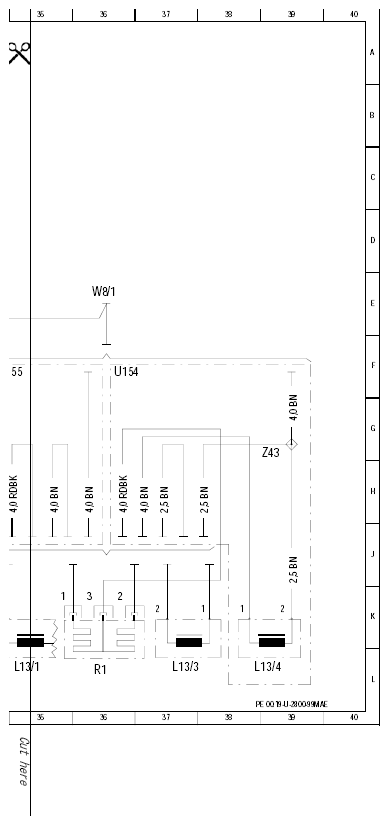

Fig 1: Electric Ground - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

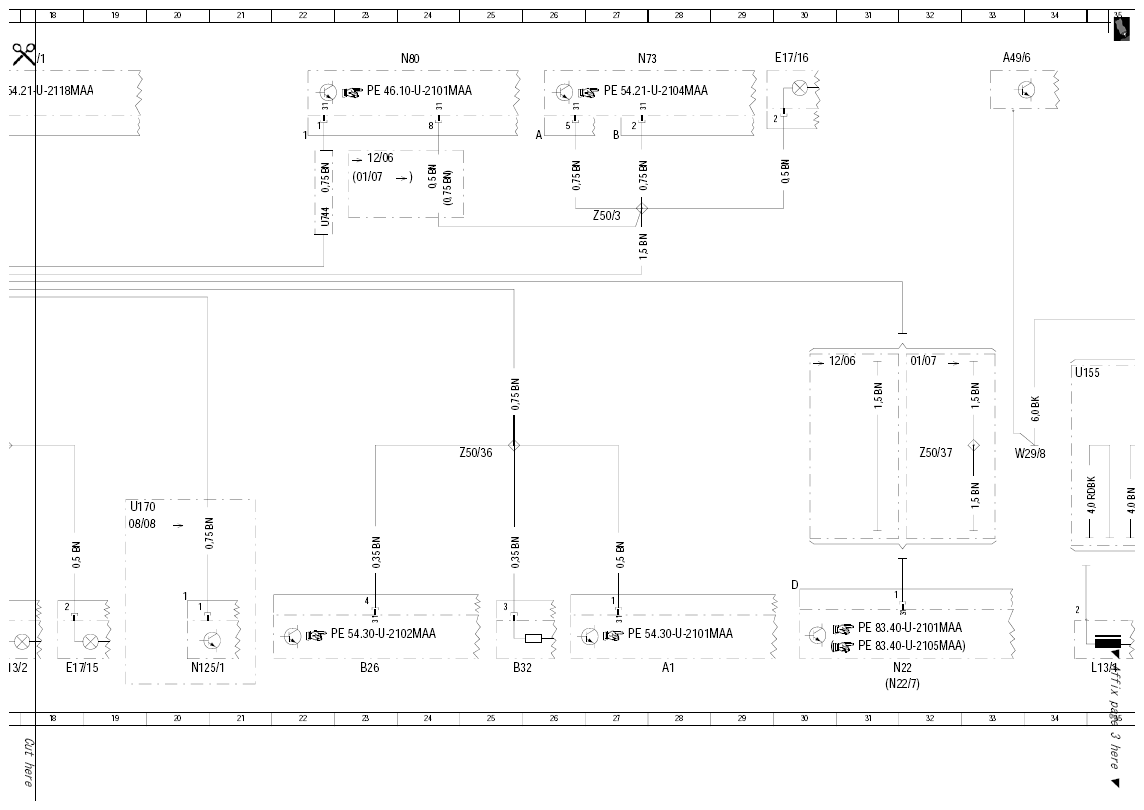

Fig 2: Electric Ground - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

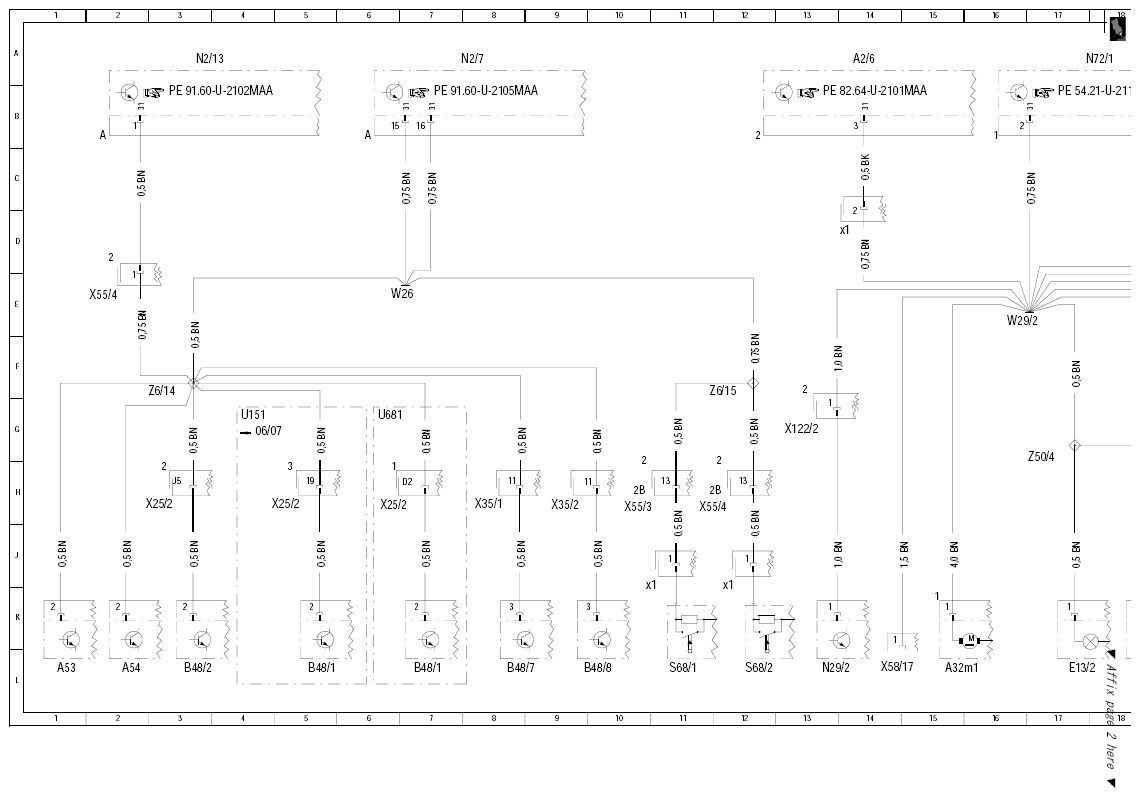

Fig 3: Electric Ground - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
