Electric wiring diagram of ground wiring - PE00.19-U-2800-99MAA

MODEL 164 W2, W6, W7, W7/7, W8, W8/2, W9, W29/9, Solder joints/Z connector sleeves Z6/48, Z6/99 (M113), Z55/1, Z60/4, Z204/1, Z204/2

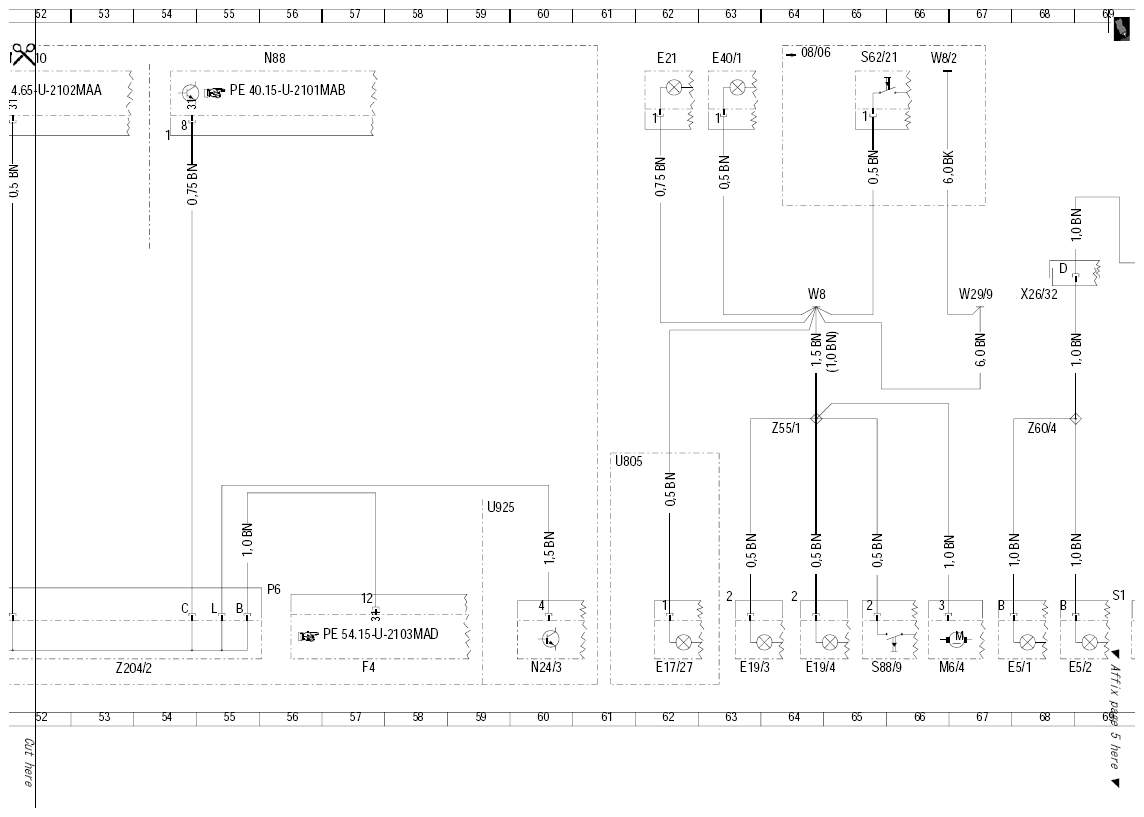

Fig 1: Electric Ground - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

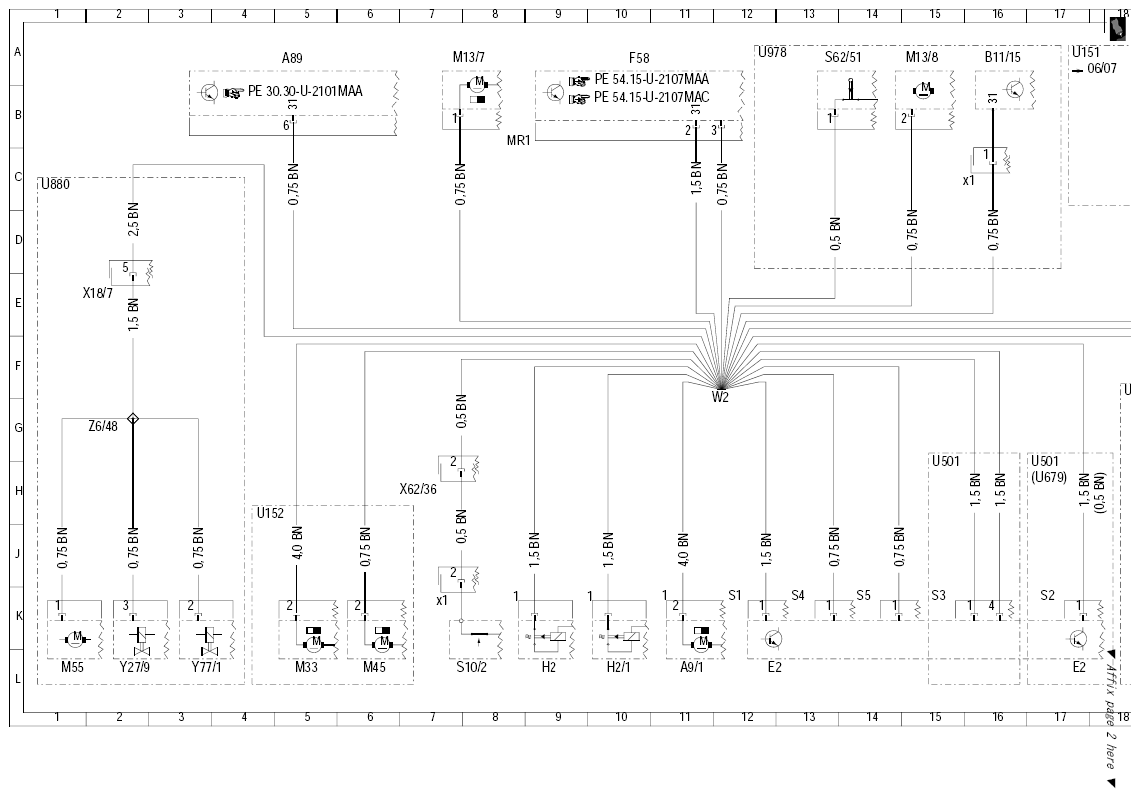

Fig 2: Electric Ground - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

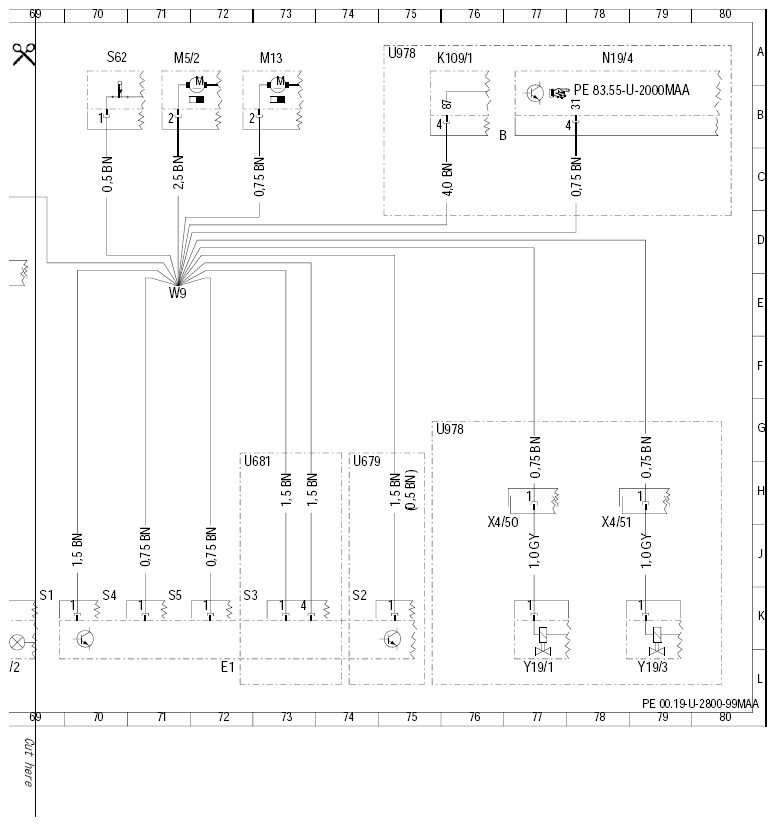

Fig 3: Electric Ground - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

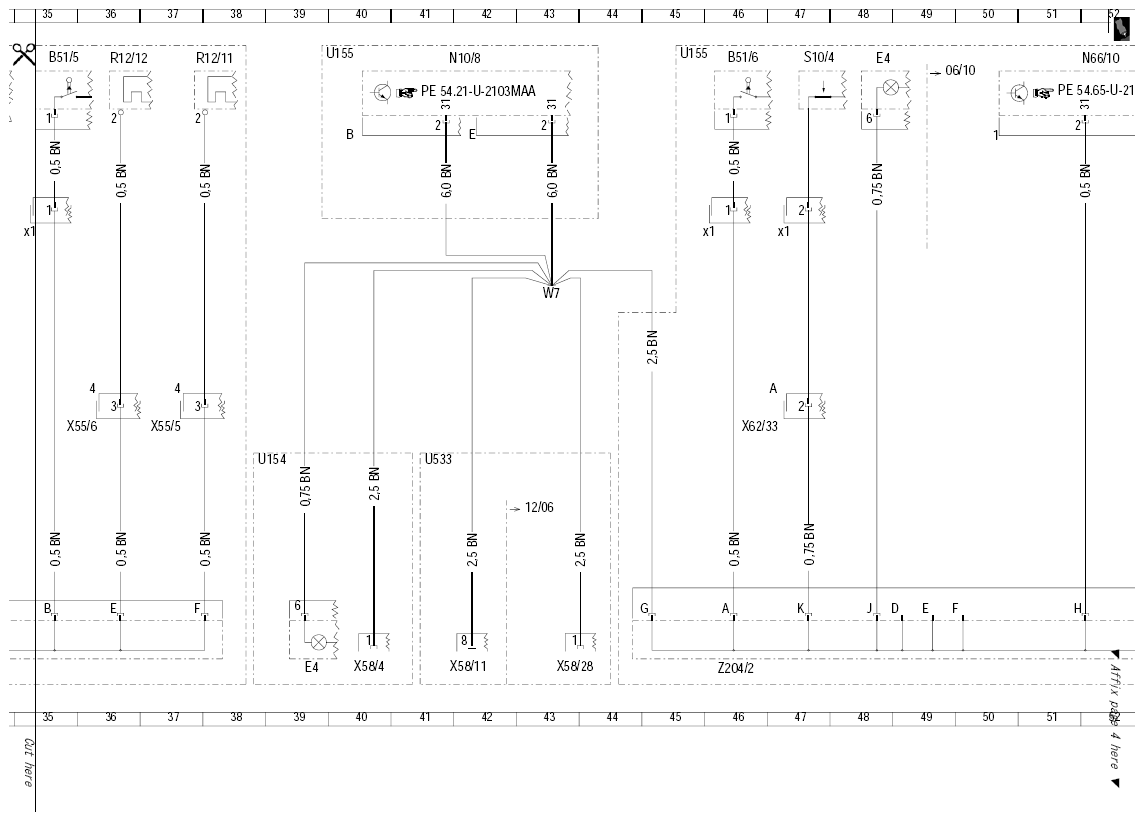

Fig 4: Electric Ground - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

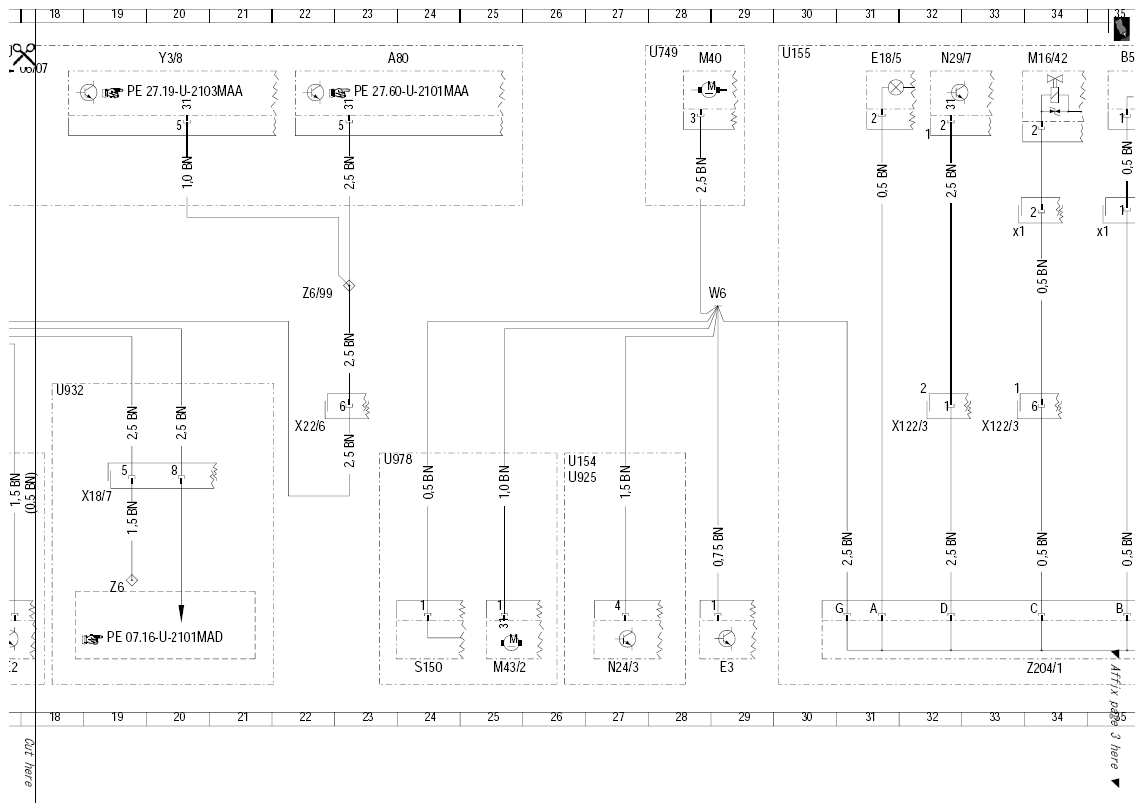

Fig 5: Electric Ground - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
