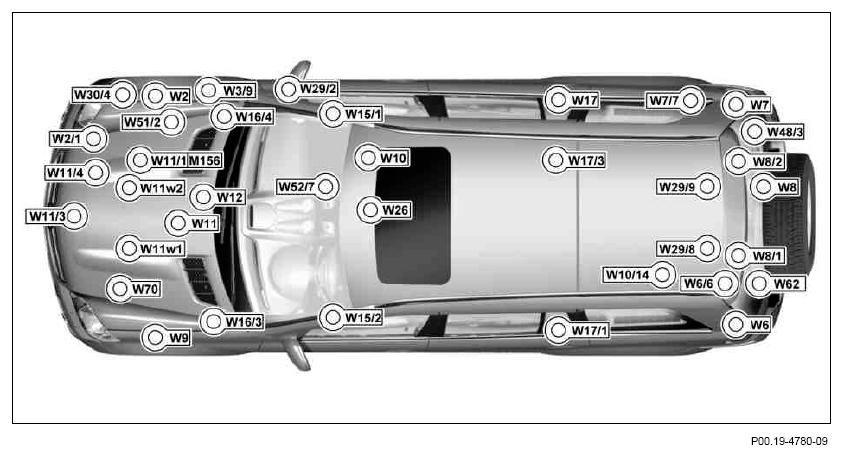

Location and assignment of ground points - GF00.19-P-2000MAA
MODEL 164
| W10 | Ground (battery) | GF00.19-P-2000-05MAA | |
| W10/14 | High-voltage battery module ground | Engine 272.973 in model 164.195 | GF00.19-P-2000-06MAA |
| W11 | Ground (engine - electrical line connected) | GF00.19-P-2000-01MAA | |
| W12 | Ground point for fuel filter with heating element | GF00.19-P-2000-02MAA | |
| W11/1 | Ground (engine - ground strap) | GF00.19-P-2000-02MAA | |
| W11/3 | Ground (engine, left) | GF00.19-P-2000-01MAA | |
| W11/4 | Ground (engine support) | GF00.19-P-2000-02MAA | |
| W11w1 | Ground (engine - electrical line connected), left cylinder bank | GF00.19-P-2000-01MAA | |
| W11w2 | Ground (engine - electrical line connected), right cylinder bank | GF00.19-P-2000-02MAA | |
| W15/1 | Ground (right footwell) | GF00.19-P-2000-05MAA | |
| W15/2 | Ground (left footwell) | GF00.19-P-2000-04MAA | |
| W16/3 | Ground (left assembly compartment, power ground) | GF00.19-P-2000-01MAA | |
| W16/4 | Ground (right assembly compartment, power ground) | GF00.19-P-2000-02MAA | |
| W17 | Ground (right rear seat) | GF00.19-P-2000-05MAA | |
| W17/1 | Ground (left rear seat) | GF00.19-P-2000-04MAA | |
| W17/3 | Ground 2 (right rear seat) | GF00.19-P-2000-05MAA | |
| W2 | Ground (right front, at lamp unit) | GF00.19-P-2000-02MAA | |
| W2/1 | Ground (right front - fan) | GF00.19-P-2000-02MAA | |
| W26 | Ground (restraint systems control unit) | GF00.19-P-2000-04MAA | |
| W29/2 | Ground (right A-pillar) | GF00.19-P-2000-05MAA | |
| W29/8 | Ground (left D-pillar) | GF00.19-P-2000-06MAA | |
| W29/9 | Ground (right D-pillar) | GF00.19-P-2000-06MAA | |
| W3/9 | DC/DC converter ground, right front wheel arch | M272.973 | GF00.19-P-2000-02MAA |
| W30/4 | Power steering pump ground | EHPS | GF00.19-P-2000-02MAA |
| W48/3 | Ground (headliner supply) | GF00.19-P-2000-09MAA | |
| W51/2 | Ground (engine-frame) | GF00.19-P-2000-02MAA | |
| W52/7 | Ground (PTC heater booster) | GF00.19-P-2000-05MAA | |
| W6 | Ground (left wheelhouse in luggage compartment) | GF00.19-P-2000-06MAA | |
| W6/6 | Ground (left spare tire well) | GF00.19-P-2000-06MAA | |
| W62 | Ground (left rear longitudinal member) | GF00.19-P-2000-06MAA | |
| W7 | Ground (right wheelhouse in luggage compartment) | GF00.19-P-2000-09MAA | |
| W7/7 | Ground (right spare tire well) | GF00.19-P-2000-09MAA | |
| W70 | Ground (ESP) | GF00.19-P-2000-01MAA | |
| W8 | Ground (liftgate) | GF00.19-P-2000-09MAA | |
| W8/1 | Ground (left liftgate) | GF00.19-P-2000-06MAA | |
| W8/2 | Ground (right liftgate) | GF00.19-P-2000-09MAA | |
| W9 | Ground (left front, at lamp unit) | GF00.19-P-2000-01MAA | |
| Location and assignment of ground points, engine compartment, left | GF00.19-P-2000-01MAA | ||
| Location and assignment of ground points, engine compartment, right | GF00.19-P-2000-02MAA | ||
| Location and assignment of ground points - interior left | GF00.19-P-2000-04MAA | ||
| Location and assignment of ground points, interior compartment, right | GF00.19-P-2000-05MAA | ||
| Location and assignment of ground points, trunk, left | GF00.19-P-2000-06MAA | ||
| Location and assignment of ground points - trunk right | GF00.19-P-2000-09MAA |
