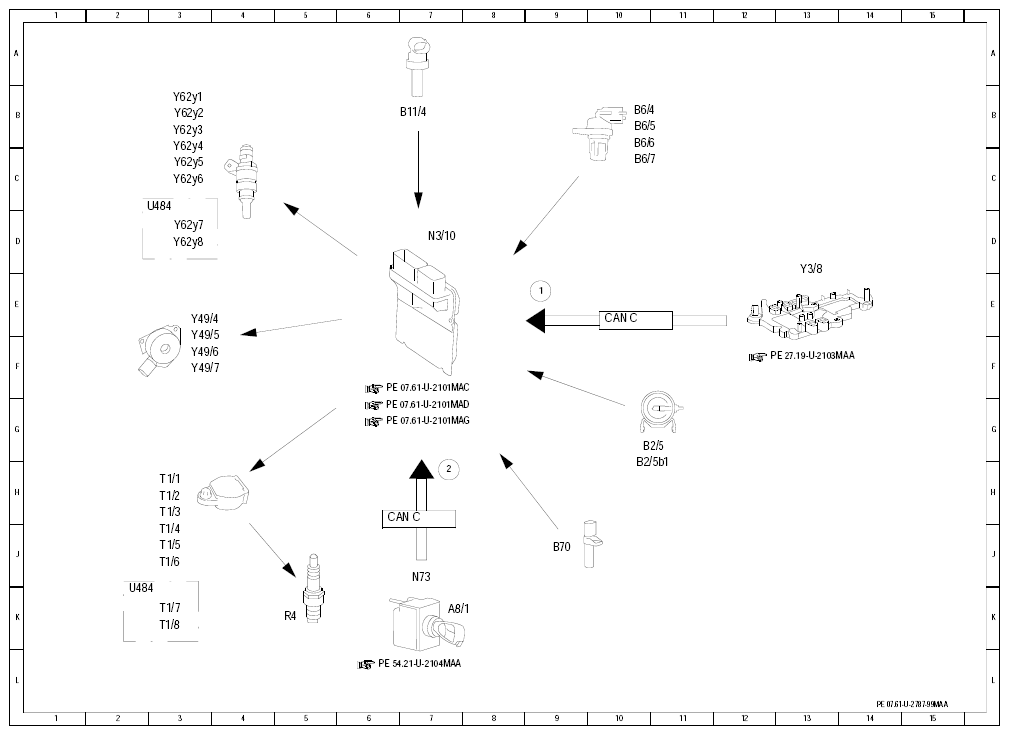

| 1 |
Selector lever position, status |
9 E |
| 2 |
Circuit 50, status |
7 H |
| A8/1 |
Transmitter key |
7 K |
| B11/4 |
Coolant temperature sensor |
6 B |
| B2/5 |
Hot film MAF sensor |
10 G |
| B2/5b1 |
Intake air temperature sensor |
10 H |
| B6/4 |
Left intake camshaft Hall sensor |
10 B |
| B6/5 |
Right intake camshaft Hall sensor |
10 B |
| B6/6 |
Left exhaust camshaft Hall sensor |
10 C |
| B6/7 |
Right exhaust camshaft Hall sensor |
10 C |
| B70 |
Crankshaft Hall sensor |
9 J |
| CAN C |
Engine compartment CAN |
6 J |
| CAN C |
Engine compartment CAN |
10 E |
| N3/10 |
ME-SFI [ME] control module |
7 D |
| N73 |
EIS [EZS] control unit |
7 K |
| R4 |
Spark plugs |
5 K |
| T1/1 |
Cylinder 1 ignition coil |
3 H |
| T1/2 |
Cylinder 2 ignition coil |
3 H |
| T1/3 |
Cylinder 3 ignition coil |
3 H |
| T1/4 |
Cylinder 4 ignition coil |
3 J |
| T1/5 |
Cylinder 5 ignition coil |
3 J |
| T1/6 |
Cylinder 6 ignition coil |
3 J |
| T1/7 |
Cylinder 7 ignition coil |
3 K |
| T1/8 |
Cylinder 8 ignition coil |
3 K |
| U484 |
Valid for M273 ME |
2 K |
| U484 |
Valid for M273 ME |
2 D |
| Y3/8 |
Electric control unit (VGS) |
13 E |
| Y49/4 |
Left camshaft intake solenoid |
3 E |
| Y49/5 |
Right camshaft intake solenoid |
3 F |
| Y49/6 |
Left camshaft exhaust solenoid |
3 F |
| Y49/7 |
Right camshaft exhaust solenoid |
3 F |
| Y62y1 |
Fuel injector cylinder 1 |
3 B |
| Y62y2 |
Fuel injector cylinder 2 |
3 B |
| Y62y3 |
Fuel injector cylinder 3 |
3 B |
| Y62y4 |
Fuel injector cylinder 4 |
3 C |
| Y62y5 |
Fuel injector cylinder 5 |
3 C |
| Y62y6 |
Fuel injector cylinder 6 |
3 C |
| Y62y7 |
Fuel injector cylinder 7 |
3 D |
| Y62y8 |
Fuel injector cylinder 8 |
3 D |
