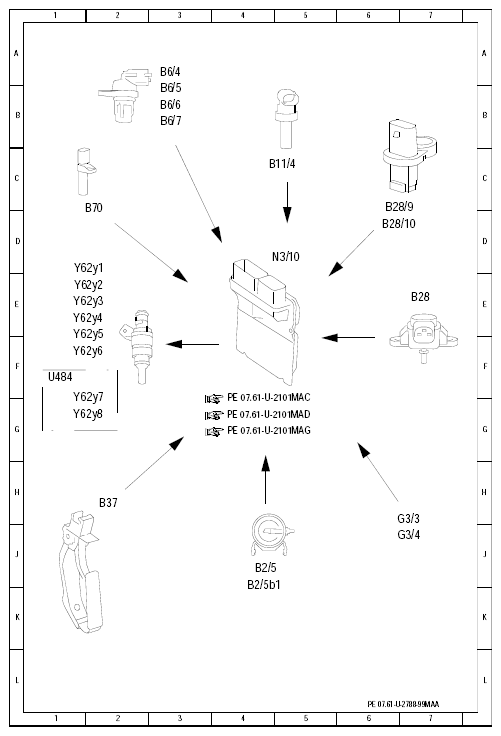

| B11/4 |
Coolant temperature sensor |
4 C |
| B2/5 |
Hot film MAF sensor |
4 J |
| B2/5b1 |
Intake air temperature sensor |
4 K |
| B28 |
Pressure sensor |
7 E |
| B28/10 |
Right intake manifold tumble flap position sensor |
6 D |
| B28/9 |
Left intake manifold tumble flap position sensor |
6 D |
| B37 |
Accelerator pedal sensor |
2 H |
| B6/4 |
Left intake camshaft Hall sensor |
3 A |
| B6/5 |
Right intake camshaft Hall sensor |
3 B |
| B6/6 |
Left exhaust camshaft Hall sensor |
3 B |
| B6/7 |
Right exhaust camshaft Hall sensor |
3 B |
| B70 |
Crankshaft Hall sensor |
1 D |
| G3/3 |
Left O2 sensor upstream TWC [KAT] |
6 J |
| G3/4 |
Right O2 sensor upstream TWC [KAT] |
6 J |
| N3/10 |
ME-SFI [ME] control module |
4 D |
| U484 |
Valid for M273 ME |
1 F |
| Y62y1 |
Fuel injector cylinder 1 |
1 E |
| Y62y2 |
Fuel injector cylinder 2 |
1 E |
| Y62y3 |
Fuel injector cylinder 3 |
1 E |
| Y62y4 |
Fuel injector cylinder 4 |
1 E |
| Y62y5 |
Fuel injector cylinder 5 |
1 F |
| Y62y6 |
Fuel injector cylinder 6 |
1 F |
| Y62y7 |
Fuel injector cylinder 7 |
1 G |
| Y62y8 |
Fuel injector cylinder 8 |
1 G |
