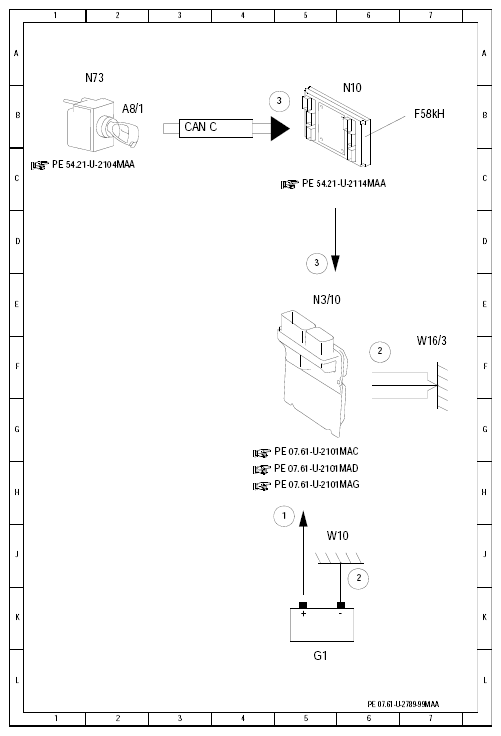

Electrical function schematic for ignition OFF - PE07.61-U-2789-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 30, status | 5 J |
| 2 | Circuit 31, status | 6 J |
| 2 | Circuit 31, status | 6 F |
| 3 | Circuit 15, status OFF | 5 B |
| 3 | Circuit 15, status OFF | 5 D |
| A8/1 | Transmitter key | 2 B |
| F58kH | Circuit 15 relay | 7 B |
| G1 | Battery | 5 L |
| N10 | Front SAM control unit | 6 B |
| N3/10 | ME-SFI [ME] control module | 5 E |
| N73 | EIS [EZS] control unit | 1 B |
| W10 | Ground (battery) | 5 J |
| W16/3 | Ground (output ground - component compartment - left) | 7 F |
