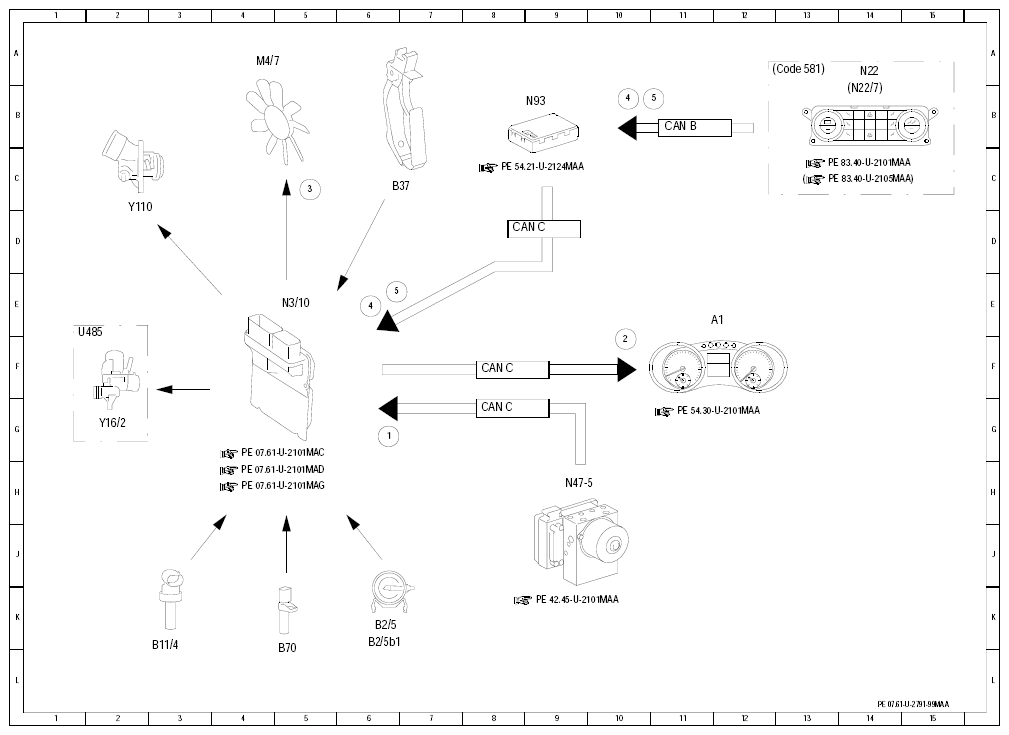

| 1 |
Vehicle speed, signal |
6 G |
| 2 |
Instrument cluster, message |
10 F |
| 3 |
Fan motor, specified rpm request |
5 C |
| 4 |
Air conditioning, status |
6 E |
| 4 |
Air conditioning, status |
10 B |
| 5 |
Outside temperature, signal |
6 E |
| 5 |
Outside temperature, signal |
10 B |
| A1 |
Instrument cluster |
11 E |
| B11/4 |
Coolant temperature sensor |
3 L |
| B2/5 |
Hot film MAF sensor |
6 K |
| B2/5b1 |
Intake air temperature sensor |
6 L |
| B37 |
Accelerator pedal sensor |
6 C |
| B70 |
Crankshaft Hall sensor |
5 L |
| CAN B |
Interior CAN |
11 B |
| CAN C |
Engine compartment CAN |
8 G |
| CAN C |
Engine compartment CAN |
8 F |
| CAN C |
Engine compartment CAN |
8 D |
| Code 581 |
Comfort automatic air conditioning |
12 A |
| M4/7 |
Electric suction fan engine and AC with integrated control |
4 A |
| N22 |
AAC pushbutton control module |
14 A |
| N22/7 |
Comfort AAC pushbutton control module |
14 B |
| N3/10 |
ME-SFI [ME] control module |
5 E |
| N47-5 |
ESP control module |
9 H |
| N93 |
Central gateway control module |
8 B |
| U485 |
Not valid for M273 ME |
1 F |
| Y110 |
Three-disk thermostat valve |
2 D |
| Y16/2 |
Heating system shutoff valve |
2 G |
