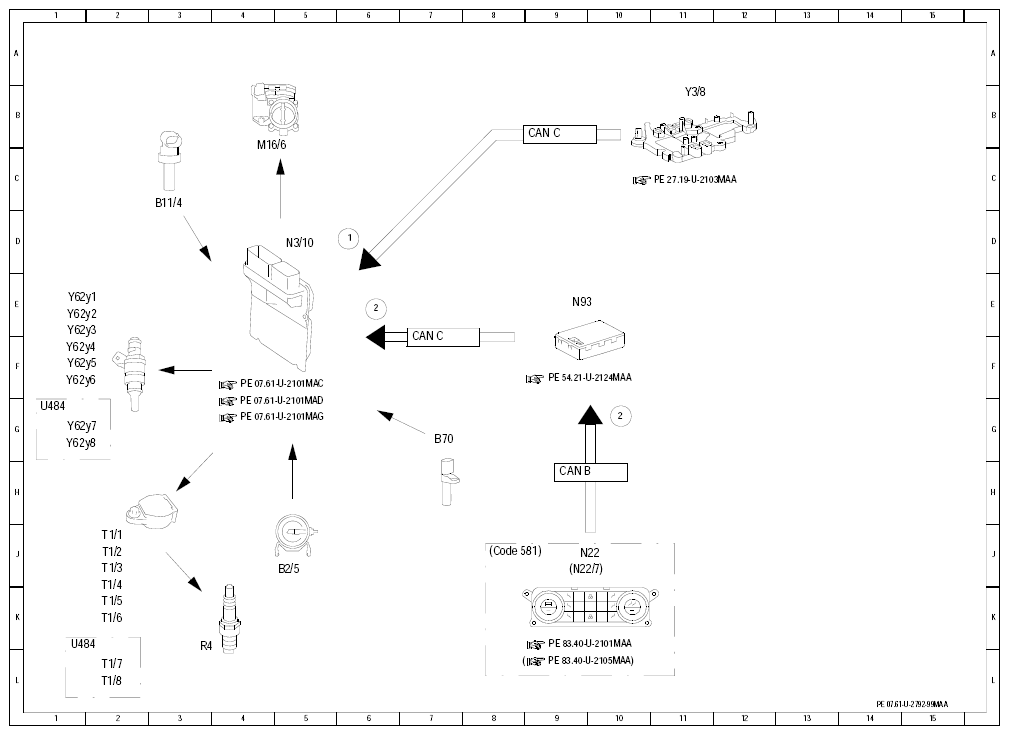

| 1 |
Gear range, status |
6 D |
| 2 |
Air conditioning, status |
6 E |
| 2 |
Air conditioning, status |
10 G |
| B11/4 |
Coolant temperature sensor |
3 D |
| B2/5 |
Hot film MAF sensor |
5 J |
| B70 |
Crankshaft Hall sensor |
7 G |
| CAN B |
Interior CAN |
9 H |
| CAN C |
Engine compartment CAN |
7 F |
| CAN C |
Engine compartment CAN |
9 B |
| Code 581 |
Comfort automatic air conditioning |
8 J |
| M16/6 |
Throttle valve actuator |
4 C |
| N22 |
AAC pushbutton control module |
9 J |
| N22/7 |
Comfort AAC pushbutton control module |
9 J |
| N3/10 |
ME-SFI [ME] control module |
5 D |
| N93 |
Central gateway control module |
9 E |
| R4 |
Spark plugs |
3 L |
| T1/1 |
Cylinder 1 ignition coil |
2 J |
| T1/2 |
Cylinder 2 ignition coil |
2 J |
| T1/3 |
Cylinder 3 ignition coil |
2 J |
| T1/4 |
Cylinder 4 ignition coil |
2 K |
| T1/5 |
Cylinder 5 ignition coil |
2 K |
| T1/6 |
Cylinder 6 ignition coil |
2 K |
| T1/7 |
Cylinder 7 ignition coil |
2 L |
| T1/8 |
Cylinder 8 ignition coil |
2 L |
| U484 |
Valid for M273 ME |
1 G |
| U484 |
Valid for M273 ME |
1 L |
| Y3/8 |
Electric control unit (VGS) |
11 B |
| Y62y1 |
Fuel injector cylinder 1 |
1 E |
| Y62y2 |
Fuel injector cylinder 2 |
1 E |
| Y62y3 |
Fuel injector cylinder 3 |
1 F |
| Y62y4 |
Fuel injector cylinder 4 |
1 F |
| Y62y5 |
Fuel injector cylinder 5 |
1 F |
| Y62y6 |
Fuel injector cylinder 6 |
1 F |
| Y62y7 |
Fuel injector cylinder 7 |
1 G |
| Y62y8 |
Fuel injector cylinder 8 |
1 G |
