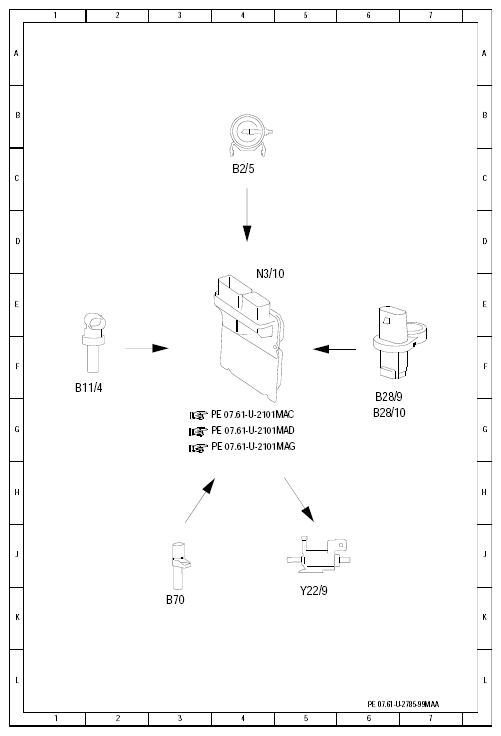

Electrical function diagram for tumble flap switchover - PE07.61-U-2785-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 1 G |
| B2/5 | Hot film MAF sensor | 4 C |
| B28/10 | Right intake manifold tumble flap position sensor | 6 G |
| B28/9 | Left intake manifold tumble flap position sensor | 6 G |
| B70 | Crankshaft Hall sensor | 3 K |
| N3/10 | ME-SFI [ME] control module | 4 E |
| Y22/9 | Intake manifold tumble flap switchover valve | 5 K |
