Electrical function diagram for intake manifold switchover - PE07.61-U-2781-99MAA

Code:	Designation:	Position:
B2/5	Hot film MAF sensor	4 C
B70	Crankshaft Hall sensor	1 F
N3/10	ME-SFI [ME] control module	4 E
Y22/6	Variable intake manifold switchover valve	6 F

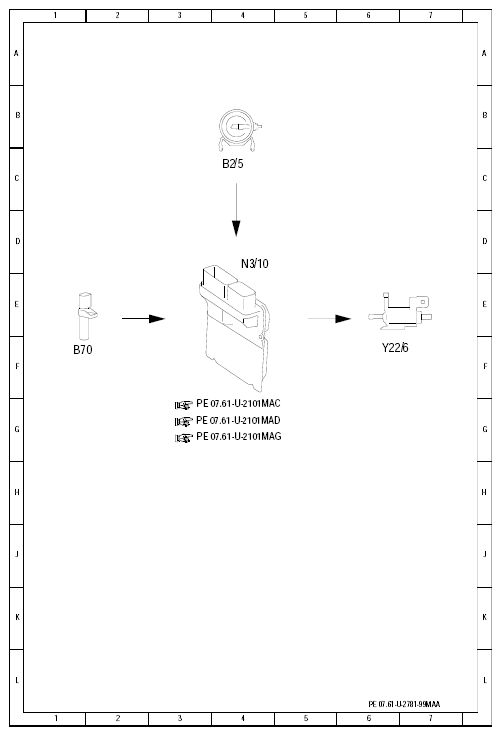

Fig 1: Intake Manifold Switchover Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
