Electrical function diagram for ME transmission shift delay - PE07.61-U-2775-99MAA

Code:	Designation:	Position:
1	Vehicle speed, signal	5 H
2	Shift point, increase request	5 C
B11/4	Coolant temperature sensor	1 F
CAN C	Engine compartment CAN	4 H
CAN C	Engine compartment CAN	4 D
N3/10	ME-SFI [ME] control module	4 E
N47-5	ESP control module	4 J
Y3/8	Electric control unit (VGS)	4 A

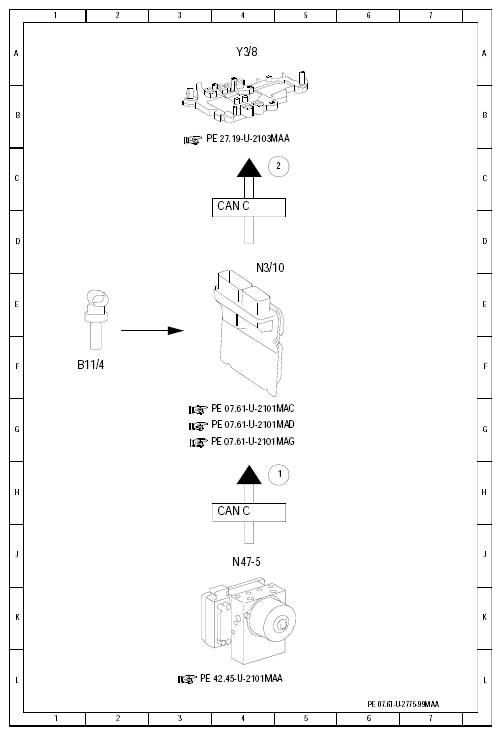

Fig 1: Transmission Shift Delay Electrical Function Diagram

Courtesy of MERCEDES-BENZ USA
