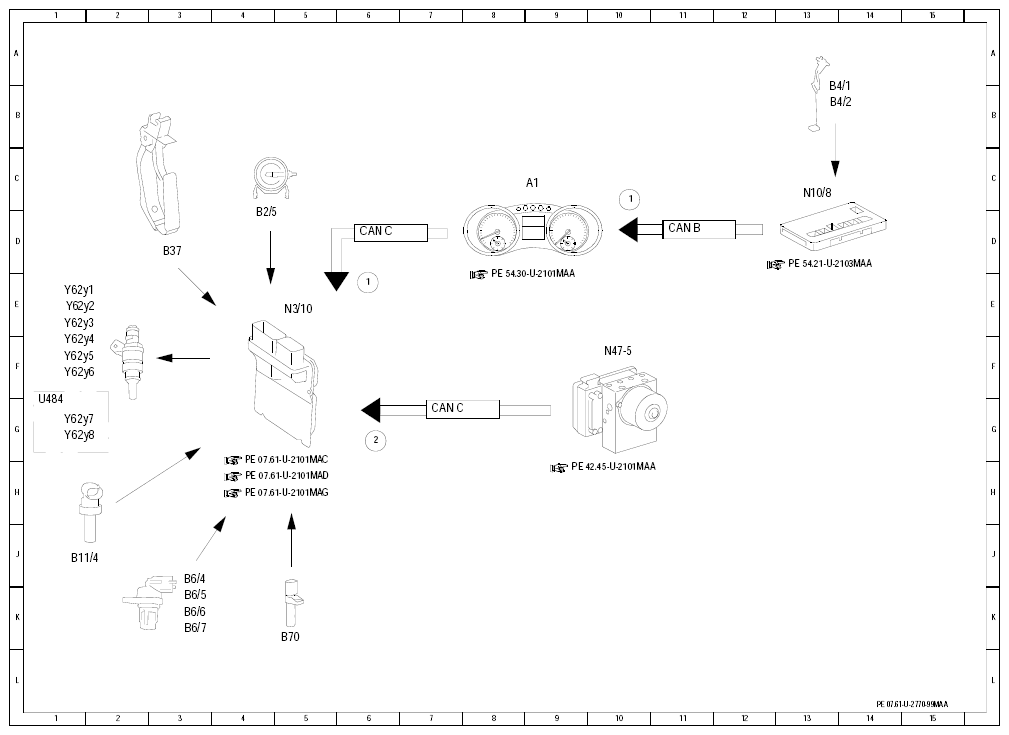

| 1 |
Fuel level, signal |
6 E |
| 1 |
Fuel level, signal |
10 C |
| 2 |
Wheel speed, signal |
6 G |
| A1 |
Instrument cluster |
9 C |
| B11/4 |
Coolant temperature sensor |
1 J |
| B2/5 |
Hot film MAF sensor |
4 D |
| B37 |
Accelerator pedal sensor |
3 D |
| B4/1 |
Left fuel level sensor |
13 B |
| B4/2 |
Right fuel level sensor |
13 B |
| B6/4 |
Left intake camshaft Hall sensor |
3 K |
| B6/5 |
Right intake camshaft Hall sensor |
3 K |
| B6/6 |
Left exhaust camshaft Hall sensor |
3 K |
| B6/7 |
Right exhaust camshaft Hall sensor |
3 K |
| B70 |
Crankshaft Hall sensor |
5 K |
| CAN B |
Interior CAN |
11 D |
| CAN C |
Engine compartment CAN |
6 D |
| CAN C |
Engine compartment CAN |
7 G |
| N10/8 |
Rear SAM control module |
13 C |
| N3/10 |
ME-SFI [ME] control module |
5 E |
| N47-5 |
ESP control module |
10 F |
| U484 |
Valid for M273 ME |
1 G |
| Y62y1 |
Fuel injector cylinder 1 |
1 E |
| Y62y2 |
Fuel injector cylinder 2 |
1 E |
| Y62y3 |
Fuel injector cylinder 3 |
1 E |
| Y62y4 |
Fuel injector cylinder 4 |
1 F |
| Y62y5 |
Fuel injector cylinder 5 |
1 F |
| Y62y6 |
Fuel injector cylinder 6 |
1 F |
| Y62y7 |
Fuel injector cylinder 7 |
1 G |
| Y62y8 |
Fuel injector cylinder 8 |
1 G |
