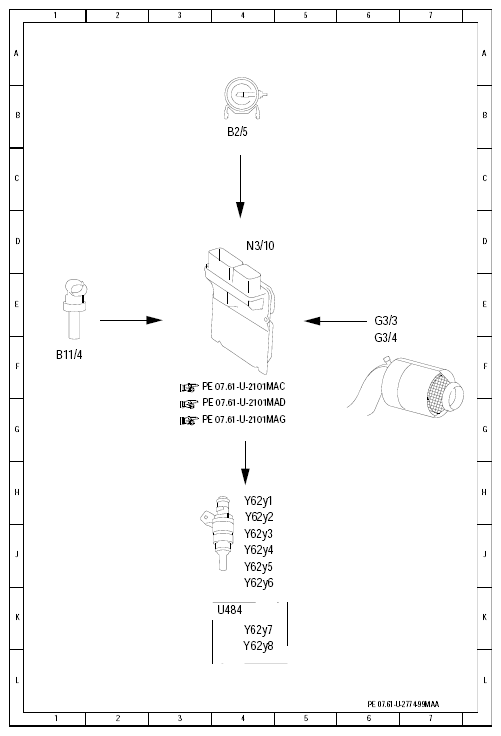

Electrical function diagram for ME lambda control - PE07.61-U-2774-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 1 F |
| B2/5 | Hot film MAF sensor | 4 B |
| G3/3 | Left O2 sensor upstream TWC [KAT] | 6 E |
| G3/4 | Right O2 sensor upstream TWC [KAT] | 6 F |
| N3/10 | ME-SFI [ME] control module | 4 D |
| U484 | Valid for M273 ME | 4 K |
| Y62y1 | Fuel injector cylinder 1 | 4 H |
| Y62y2 | Fuel injector cylinder 2 | 4 J |
| Y62y3 | Fuel injector cylinder 3 | 4 J |
| Y62y4 | Fuel injector cylinder 4 | 4 J |
| Y62y5 | Fuel injector cylinder 5 | 4 J |
| Y62y6 | Fuel injector cylinder 6 | 4 K |
| Y62y7 | Fuel injector cylinder 7 | 4 K |
| Y62y8 | Fuel injector cylinder 8 | 4 L |
