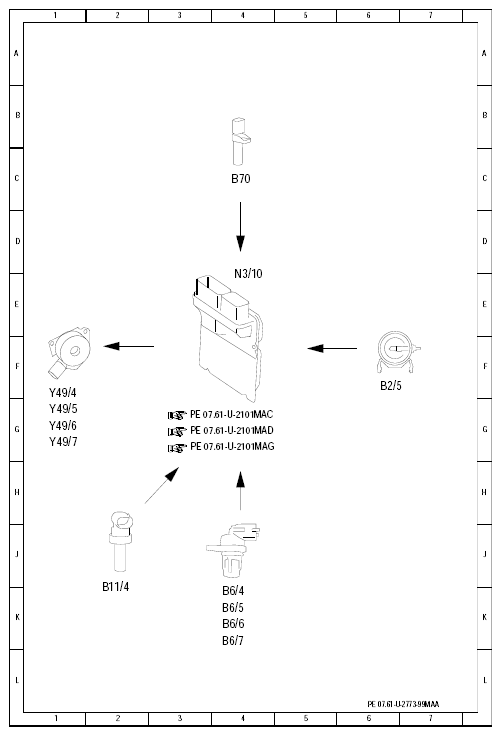

Electrical function diagram for ME camshaft adjustment - PE07.61-U-2773-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | 2 K |
| B2/5 | Hot film MAF sensor | 6 F |
| B6/4 | Left intake camshaft Hall sensor | 4 K |
| B6/5 | Right intake camshaft Hall sensor | 4 K |
| B6/6 | Left exhaust camshaft Hall sensor | 4 K |
| B6/7 | Right exhaust camshaft Hall sensor | 4 L |
| B70 | Crankshaft Hall sensor | 4 C |
| N3/10 | ME-SFI [ME] control module | 4 E |
| Y49/4 | Left camshaft intake solenoid | 1 G |
| Y49/5 | Right camshaft intake solenoid | 1 G |
| Y49/6 | Left camshaft exhaust solenoid | 1 G |
| Y49/7 | Right camshaft exhaust solenoid | 1 G |
