Wiring diagram ME-SFI fuel injection and ignition system control module - PE07.61-U-2101-99MAD

ENGINE 272.967 in MODEL 164 ME 9.7.1, control unit N3/10, specification 2

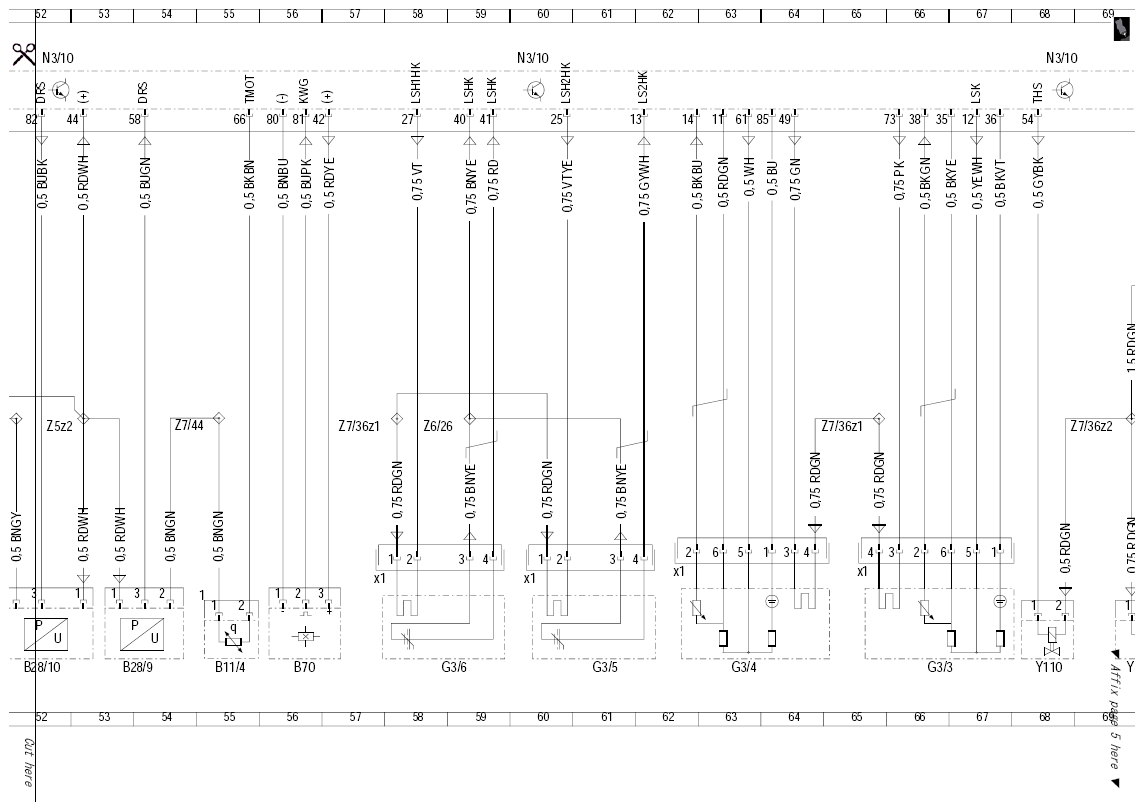

Fig 1: ME-SFI Fuel Injection And Ignition System Control Module - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

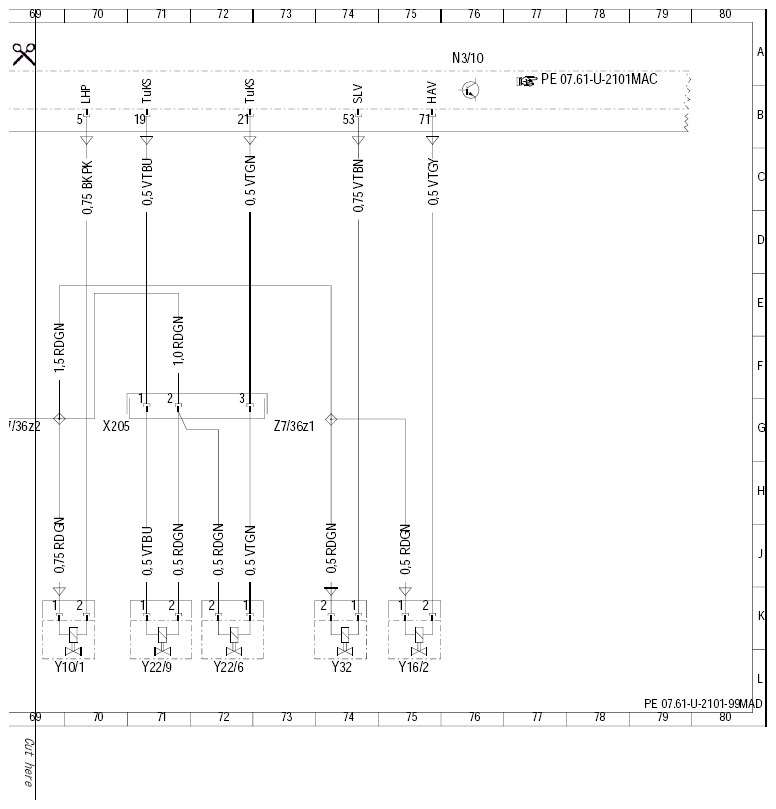

Fig 2: ME-SFI Fuel Injection And Ignition System Control Module - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

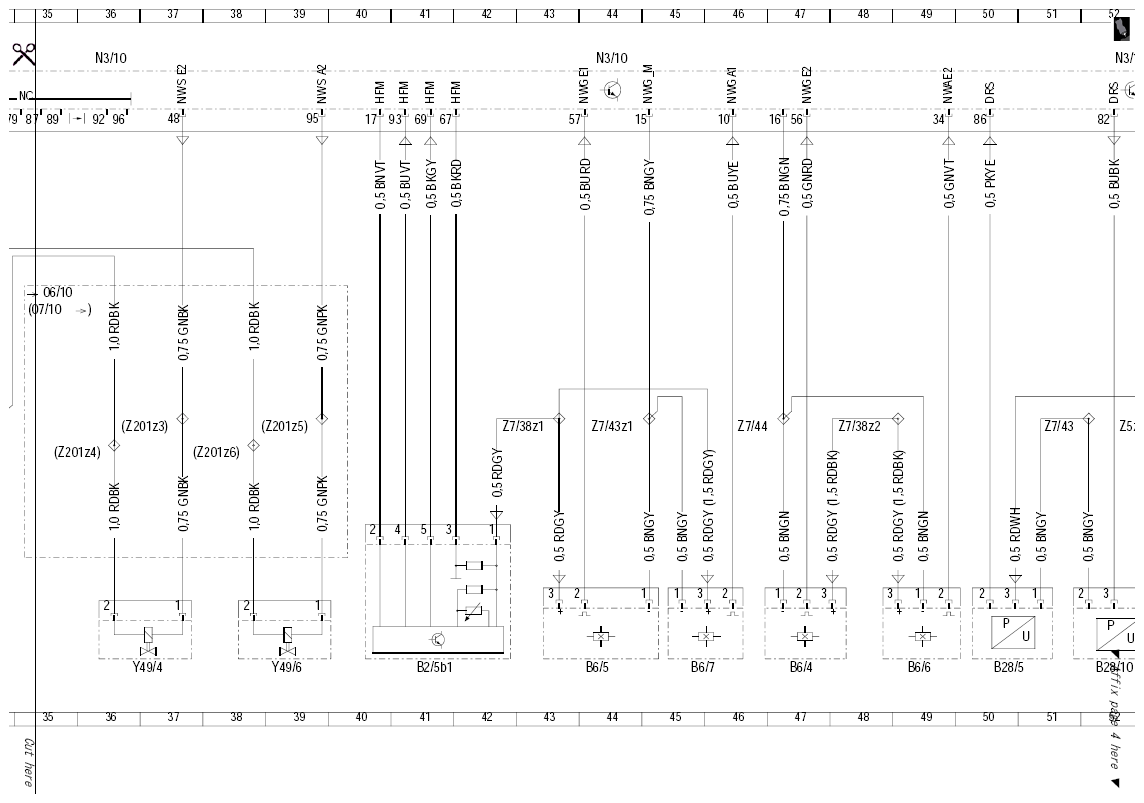

Fig 3: ME-SFI Fuel Injection And Ignition System Control Module - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

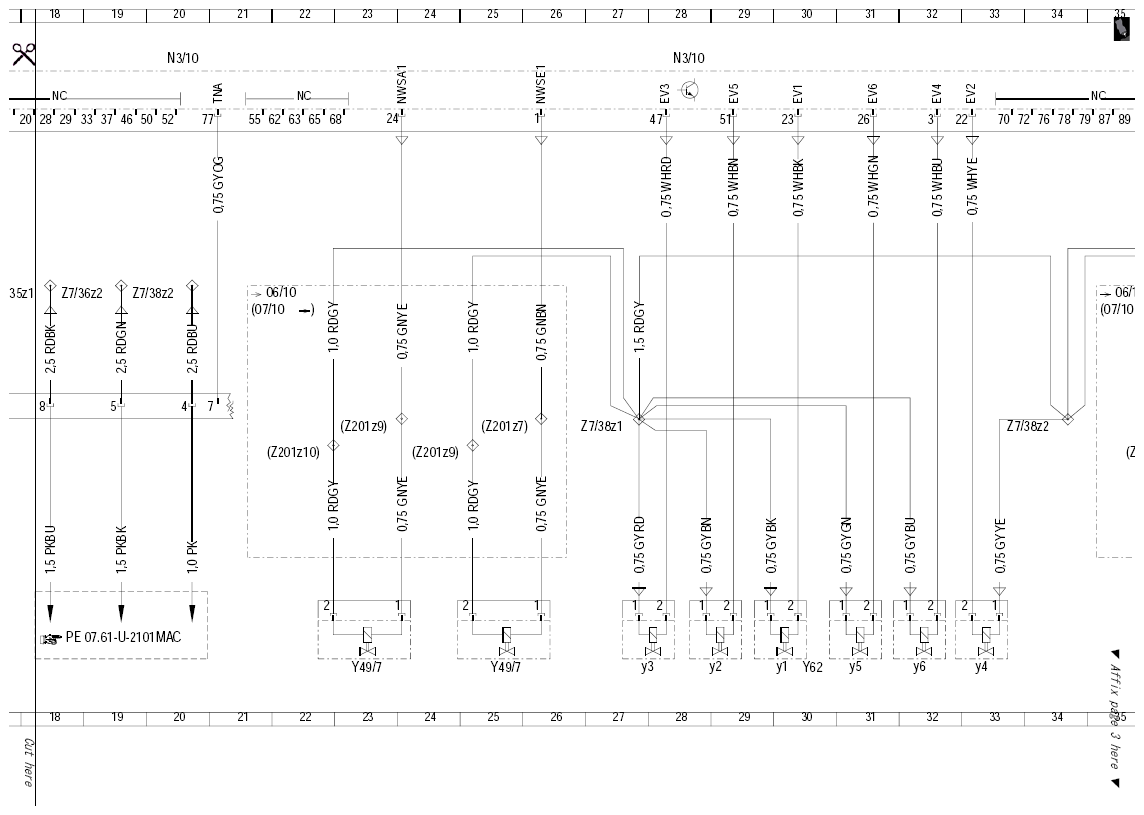

Fig 4: ME-SFI Fuel Injection And Ignition System Control Module - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

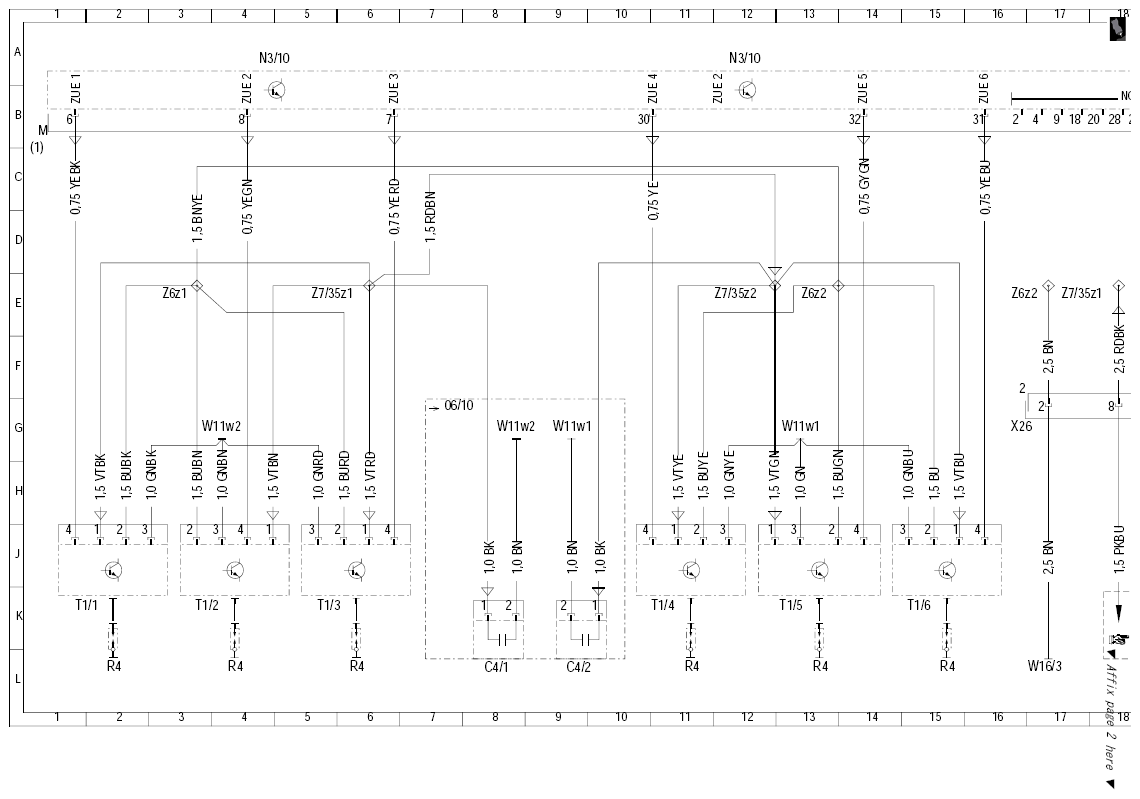

Fig 5: ME-SFI Fuel Injection And Ignition System Control Module - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
