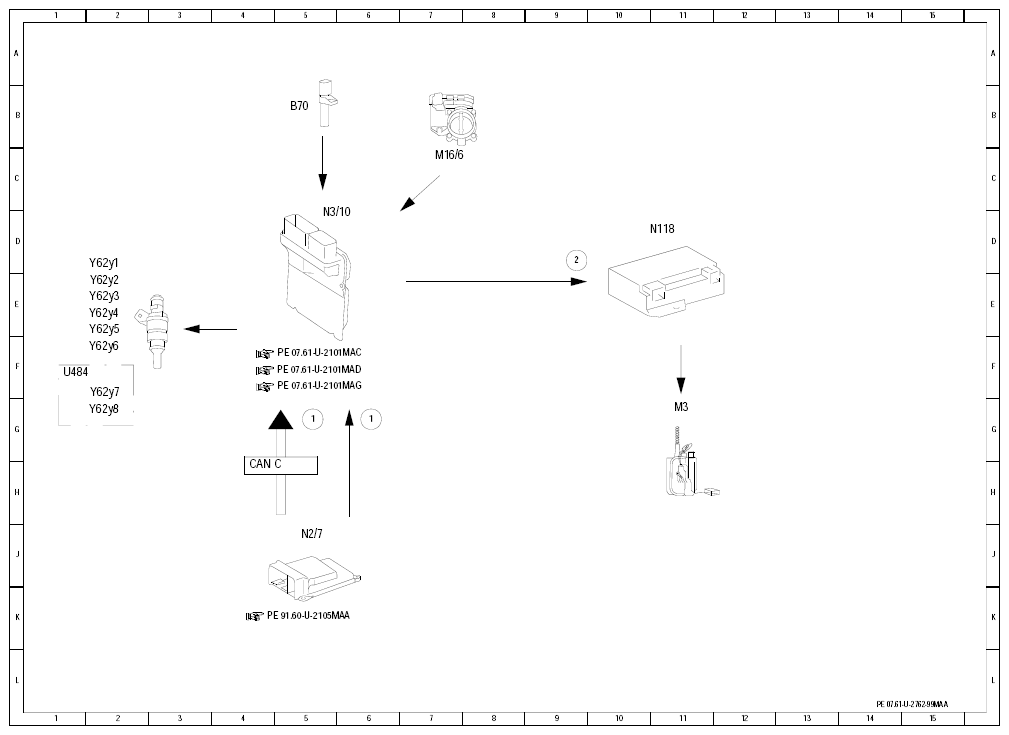

Electrical function diagram for ME safety fuel shutoff - PE07.61-U-2762-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 5 G |
| 1 | Crash, signal | 6 G |
| 2 | Fuel pump, request OFF | 9 D |
| B70 | Crankshaft Hall sensor | 5 B |
| CAN C | Engine compartment CAN | 4 H |
| M16/6 | Throttle valve actuator | 7 C |
| M3 | Right fuel pump | 11 G |
| N118 | Fuel pump control module | 10 D |
| N2/7 | Restraint systems control module | 5 J |
| N3/10 | ME-SFI [ME] control module | 5 D |
| U484 | Valid for M273 ME | 1 F |
| Y62y1 | Fuel injector cylinder 1 | 2 E |
| Y62y2 | Fuel injector cylinder 2 | 2 E |
| Y62y3 | Fuel injector cylinder 3 | 2 E |
| Y62y4 | Fuel injector cylinder 4 | 2 E |
| Y62y5 | Fuel injector cylinder 5 | 2 F |
| Y62y6 | Fuel injector cylinder 6 | 2 F |
| Y62y7 | Fuel injector cylinder 7 | 2 G |
| Y62y8 | Fuel injector cylinder 8 | 2 G |
