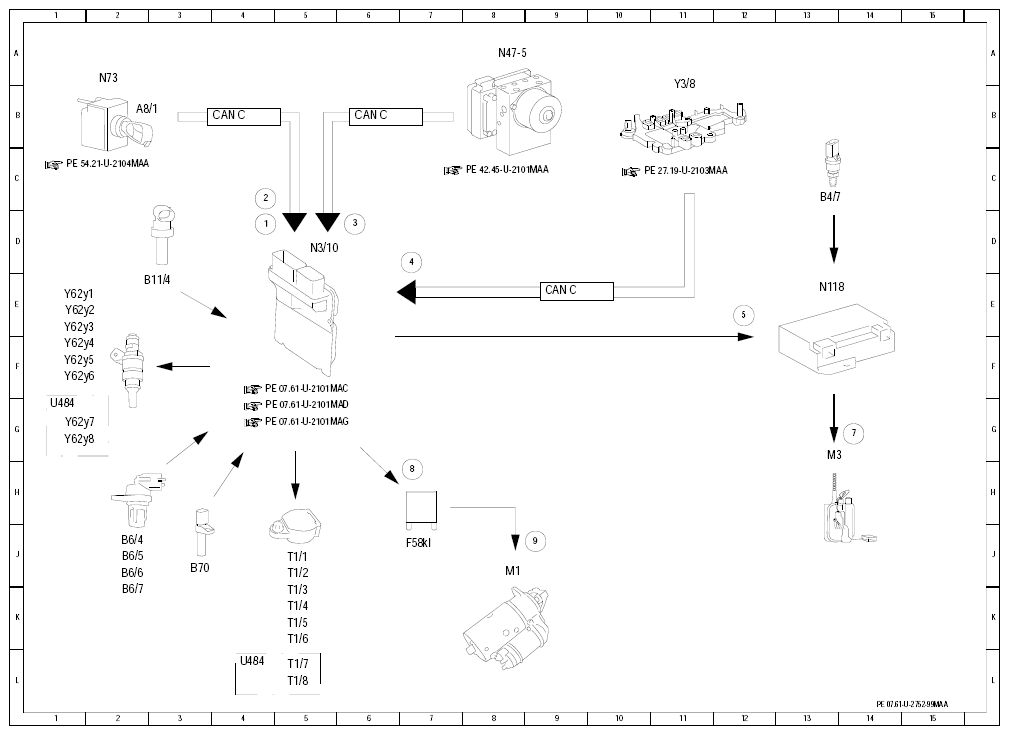

| 1 |
Circuit 50, status |
4 D |
| 2 |
DAS [FBS] start enable, status |
4 C |
| 3 |
Service brake, status |
6 D |
| 4 |
Selector lever position, status |
7 D |
| 5 |
Fuel pump, request ON |
12 E |
| 7 |
Fuel pump, actuation |
14 G |
| 8 |
Starter relay, actuation |
7 H |
| 9 |
Starter, actuation |
9 J |
| A8/1 |
Transmitter key |
2 B |
| B11/4 |
Coolant temperature sensor |
2 E |
| B4/7 |
Fuel pressure sensor |
13 C |
| B6/4 |
Left intake camshaft Hall sensor |
2 J |
| B6/5 |
Right intake camshaft Hall sensor |
2 J |
| B6/6 |
Left exhaust camshaft Hall sensor |
2 J |
| B6/7 |
Right exhaust camshaft Hall sensor |
2 K |
| B70 |
Crankshaft Hall sensor |
3 J |
| CAN C |
Engine compartment CAN |
3 B |
| CAN C |
Engine compartment CAN |
6 B |
| CAN C |
Engine compartment CAN |
9 E |
| F58kI |
Starter relay |
7 J |
| M1 |
Starter |
8 J |
| M3 |
Right fuel pump |
13 H |
| N118 |
Fuel pump control module |
13 E |
| N3/10 |
ME-SFI [ME] control module |
5 D |
| N47-5 |
ESP control module |
8 A |
| N73 |
EIS [EZS] control unit |
2 B |
| T1/1 |
Cylinder 1 ignition coil |
5 J |
| T1/2 |
Cylinder 2 ignition coil |
5 J |
| T1/3 |
Cylinder 3 ignition coil |
5 K |
| T1/4 |
Cylinder 4 ignition coil |
5 K |
| T1/5 |
Cylinder 5 ignition coil |
5 K |
| T1/6 |
Cylinder 6 ignition coil |
5 L |
| T1/7 |
Cylinder 7 ignition coil |
5 L |
| T1/8 |
Cylinder 8 ignition coil |
5 L |
| U484 |
Valid for M273 ME |
1 G |
| U484 |
Valid for M273 ME |
4 L |
| Y3/8 |
Electric control unit (VGS) |
11 B |
| Y62y1 |
Fuel injector cylinder 1 |
1 E |
| Y62y2 |
Fuel injector cylinder 2 |
1 E |
| Y62y3 |
Fuel injector cylinder 3 |
1 F |
| Y62y4 |
Fuel injector cylinder 4 |
1 F |
| Y62y5 |
Fuel injector cylinder 5 |
1 F |
| Y62y6 |
Fuel injector cylinder 6 |
1 F |
| Y62y7 |
Fuel injector cylinder 7 |
1 G |
| Y62y8 |
Fuel injector cylinder 8 |
1 G |
