| A0 |
Color code key |
80L |
| A16/1 |

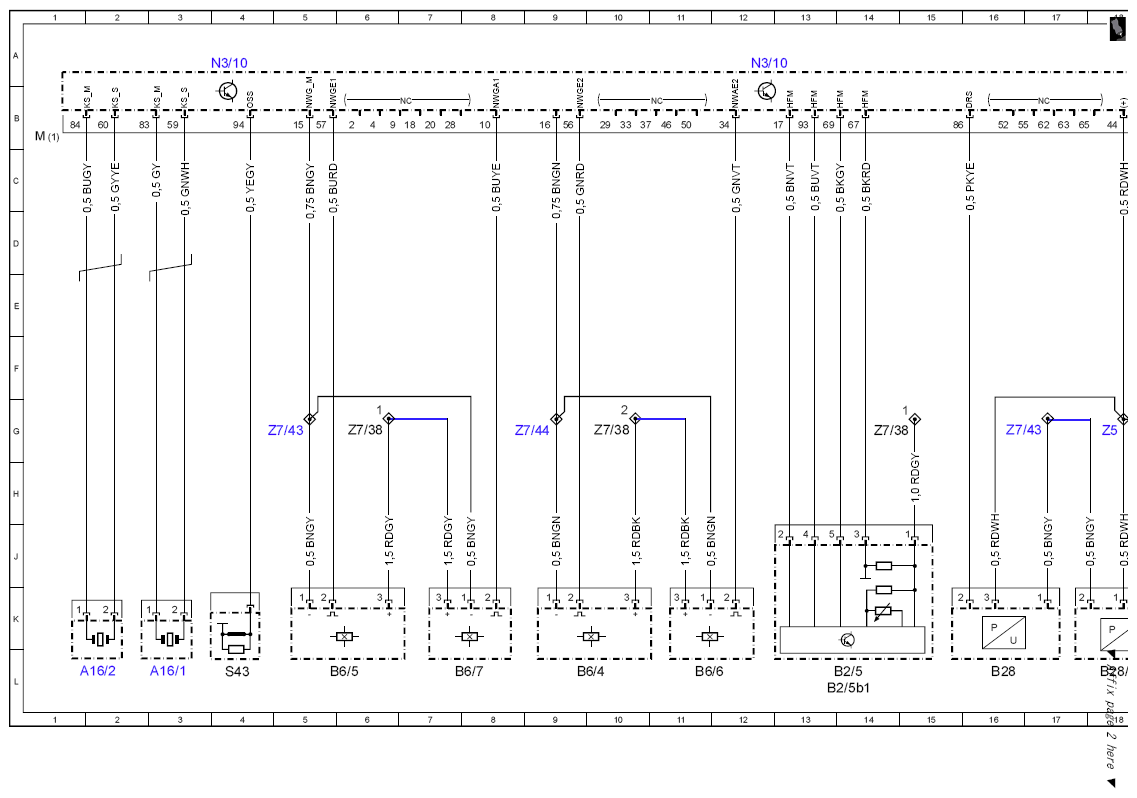

Right knock sensor 1 |
3L |
| A16/2 |
Left knock sensor 2 |
2L |
| B11/4 |
Coolant temperature sensor |
21L |
| B2/5 |
Hot film mass air flow sensor |
14L |
| B2/5b1 |
Intake air temperature sensor |
14L |
| B28 |
Pressure sensor |
16L |
| B28/10 |
Right intake manifold tumble flap position sensor |
18L |
| B28/9 |
Left intake manifold tumble flap position sensor |
20L |
| B6/4 |
Left intake camshaft Hall sensor |
9L |
| B6/5 |
Right intake camshaft Hall sensor |
6L |
| B6/6 |
Left exhaust camshaft Hall sensor |
11L |
| B6/7 |
Right exhaust camshaft Hall sensor |
8L |
| B70 |
Crankshaft Hall sensor |
23L |
| C4/1 |
Radio interference suppression capacitor 1 |
60L |
| C4/2 |
Radio interference suppression capacitor 2 |
61L |
| G3/3 |

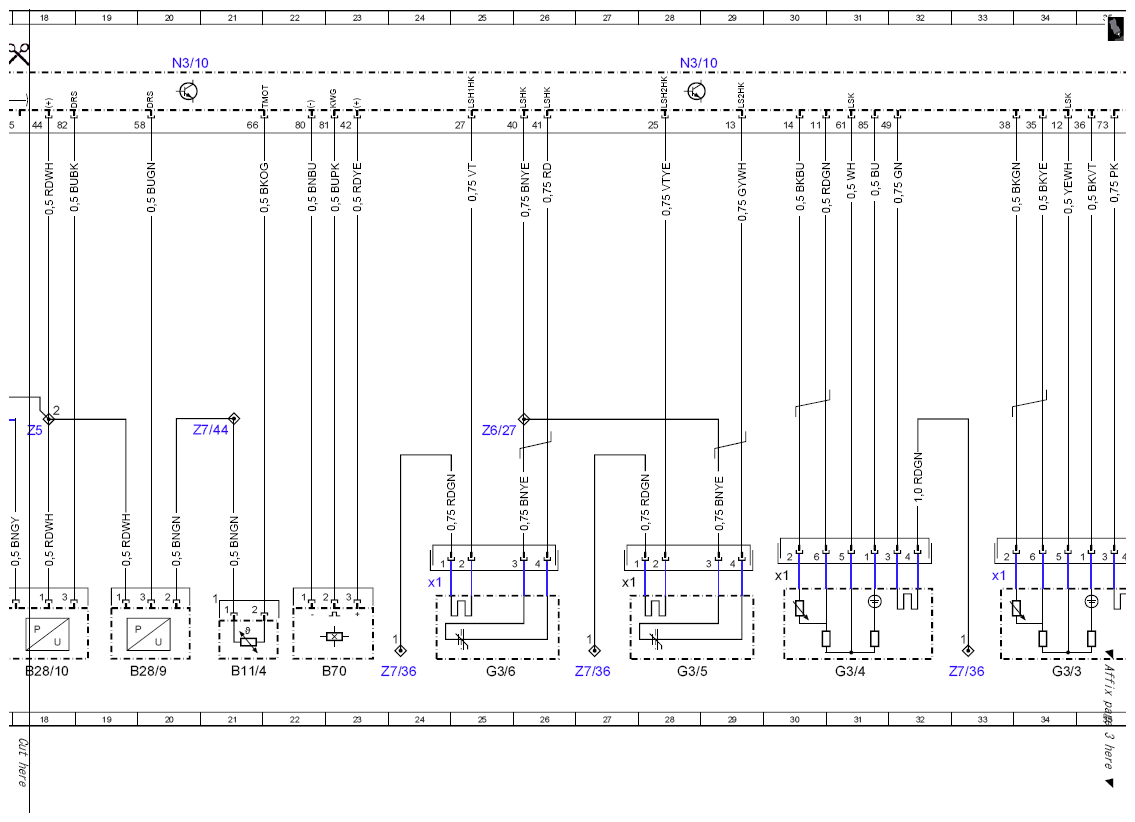

Left O2 sensor upstream of TWC [KAT] |
34L |
| G3/3x1 |
Left O2 sensor upstream of TWC [KAT] connector |
33J |
| G3/4 |
Right O2 sensor upstream of TWC [KAT] |
31L |
| G3/4x1 |
Right O2 sensor upstream of TWC [KAT] connector |
30L |
| G3/5 |
Left O2 sensor downstream of TWC [KAT] |
28L |
| G3/5x1 |
Left O2 sensor downstream of TWC [KAT] connector |
28L |
| G3/6 |
Right O2 sensor downstream of TWC [KAT] |
25L |
| G3/6x1 |
Right O2 sensor downstream of TWC [KAT] connector |
24J |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
60A |
| N3/10 |
ME-SFI [ME] control unit |
76A |
| N3/10 |
ME-SFI [ME] control unit |
68A |
| R4 |
Spark plugs |
56L |
| R4 |
Spark plugs |
54L |
| R4 |
Spark plugs |
58L |
| R4 |
Spark plugs |
67L |
| R4 |
Spark plugs |
65L |
| R4 |
Spark plugs |
63L |
| S43 |
Oil level check switch |
4L |
| T1/1 |

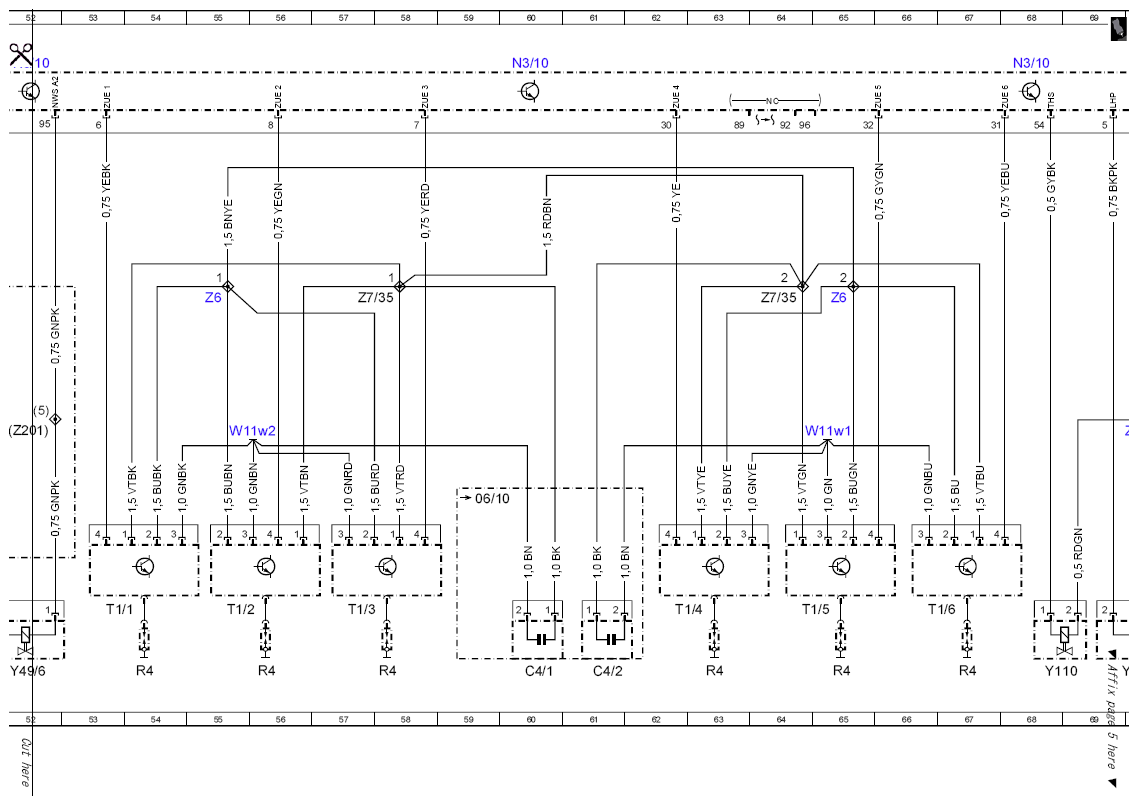

Cylinder 1 ignition coil |
53K |
| T1/2 |
Cylinder 2 ignition coil |
55K |
| T1/3 |
Cylinder 3 ignition coil |
57K |
| T1/4 |
Cylinder 4 ignition coil |
62K |
| T1/5 |
Cylinder 5 ignition coil |
64K |
| T1/6 |
Cylinder 6 ignition coil |
66K |
| W11w1 |
Ground (engine - electrical line connected), left cylinder bank |
65G |
| W11w2 |
Ground (engine - electrical line connected), right cylinder bank |
55G |
| X205 |

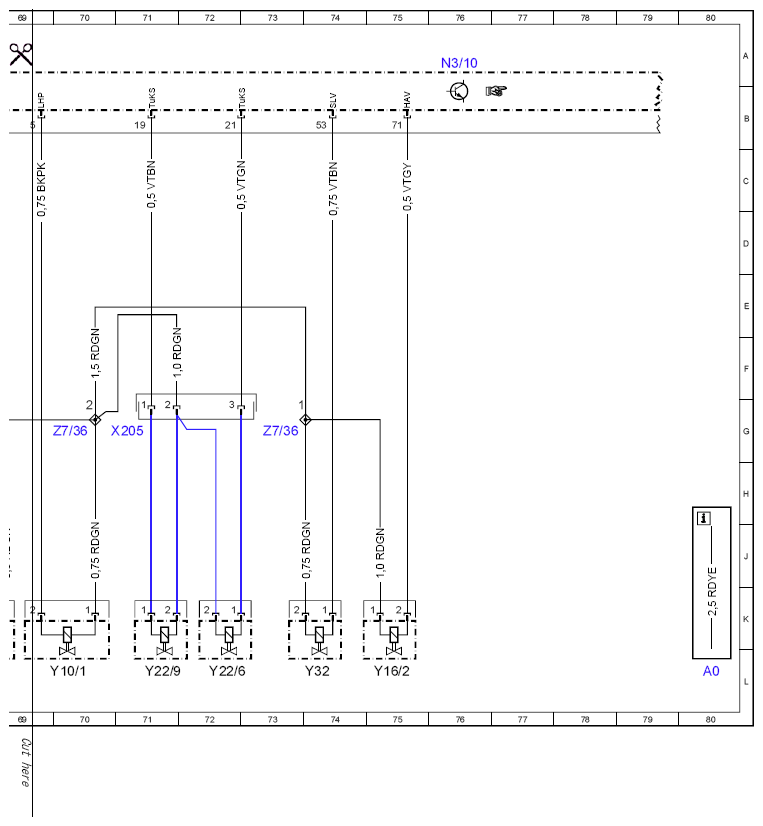

Tumble flap/variable intake manifold switchover valves connector |
71G |
| Y10/1 |
Power steering pump pressure regulator valve |
70L |
| Y110 |
Three-disk thermostat valve |
68L |
| Y16/2 |
Heating system shutoff valve |
75L |
| Y22/6 |
Variable intake manifold switchover valve |
72L |
| Y22/9 |
Intake manifold tumble flap switchover valve |
71L |
| Y32 |
Air pump switchover valve |
74L |
| Y49/4 |

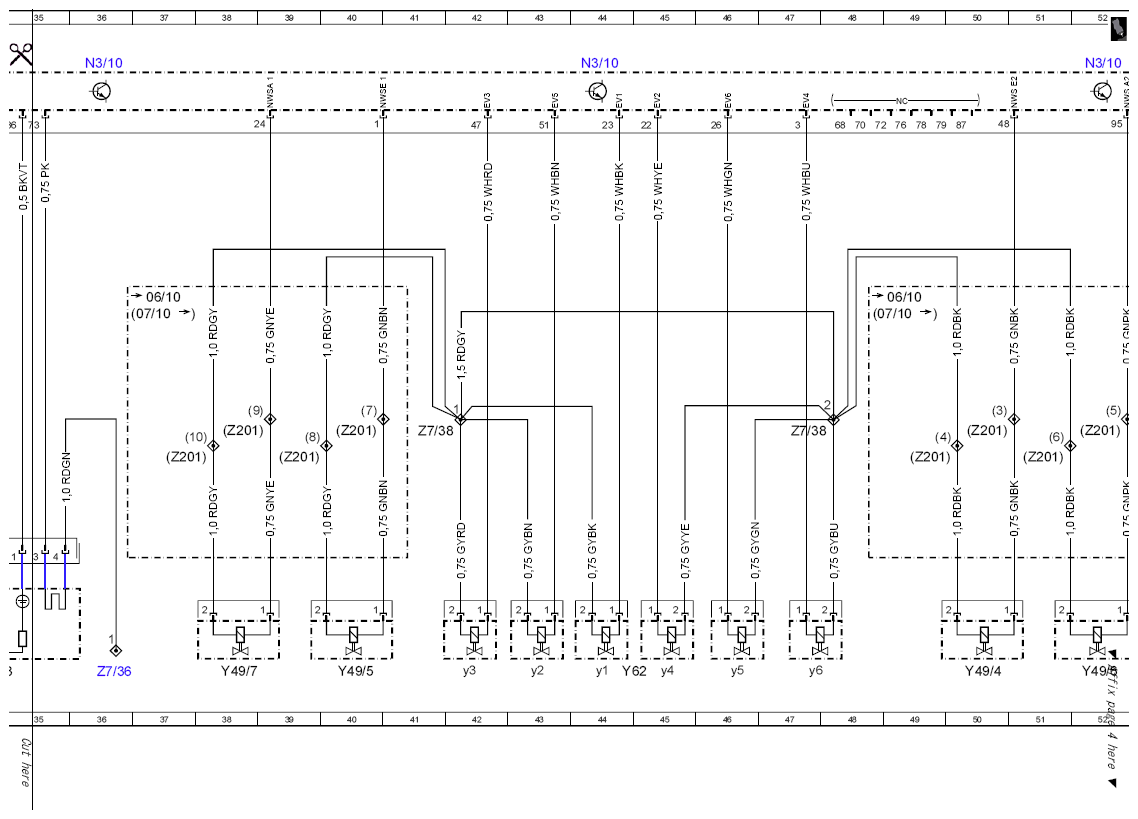

Left intake camshaft solenoid |
50L |
| Y49/5 |
Right intake camshaft solenoid |
40L |
| Y49/6 |
Left exhaust camshaft solenoid |
52L |
| Y49/7 |
Right exhaust camshaft solenoid |
38L |
| Y62 |
Fuel injection valves |
44L |
| Y62y1 |
Cylinder 1 fuel injection valve |
44L |
| Y62y2 |
Cylinder 2 fuel injection valve |
43L |
| Y62y3 |
Cylinder 3 fuel injection valve |
42L |
| Y62y4 |
Cylinder 4 fuel injection valve |
45L |
| Y62y5 |
Cylinder 5 fuel injection valve |
46L |
| Y62y6 |
Cylinder 6 fuel injection valve |
47L |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z201 |
Capillary stopper connector sleeve |
N/A |
| Z5 |
Connector sleeve (solder connector in harness) |
18G |
| Z6 |
Ground connector sleeve |
55E |
| Z6 |
Ground connector sleeve |
65E |
| Z6/27 |
Sensor ground connector sleeve |
25G |
| Z7/35 |
Circuit 87 M1e connector sleeve |
58E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
64E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
27L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
24L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
33L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
36L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
70G |
| Z7/36 |
Circuit 87 M2e connector sleeve |
73G |
| Z7/38 |
Circuit 87 M1i connector sleeve |
10G |
| Z7/38 |
Circuit 87 M1i connector sleeve |
6G |
| Z7/38 |
Circuit 87 M1i connector sleeve |
14G |
| Z7/38 |
Circuit 87 M1i connector sleeve |
41G |
| Z7/38 |
Circuit 87 M1i connector sleeve |
47G |
| Z7/43 |
Sensor ground connector sleeve |
5G |
| Z7/43 |
Sensor ground connector sleeve |
16G |
| Z7/44 |
Sensor ground connector sleeve |
9G |
| Z7/44 |
Sensor ground connector sleeve |
21G |
