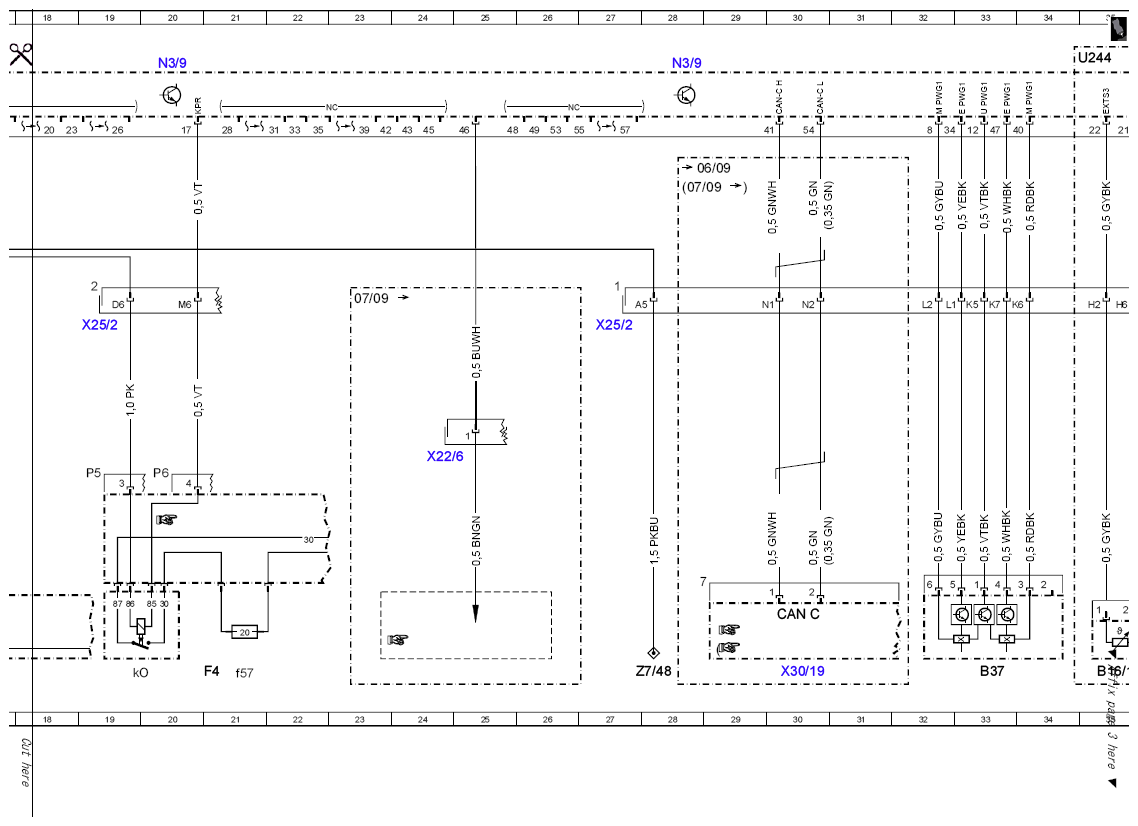

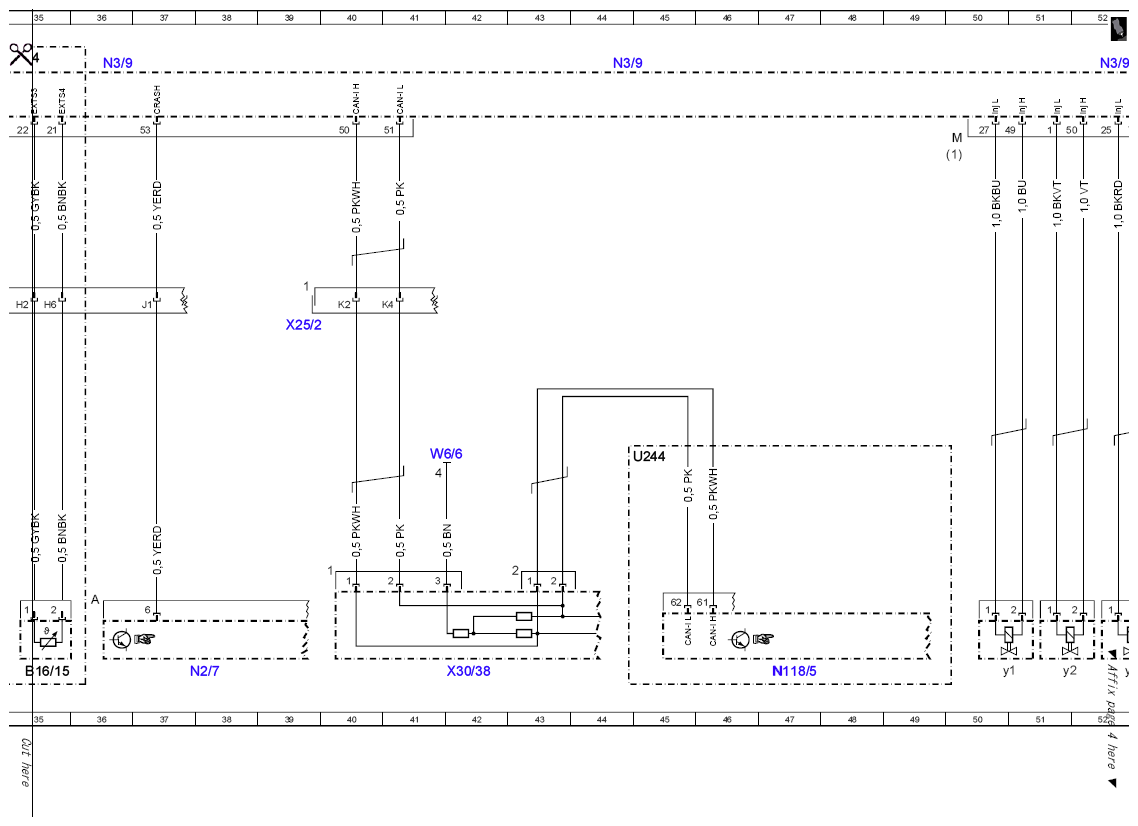

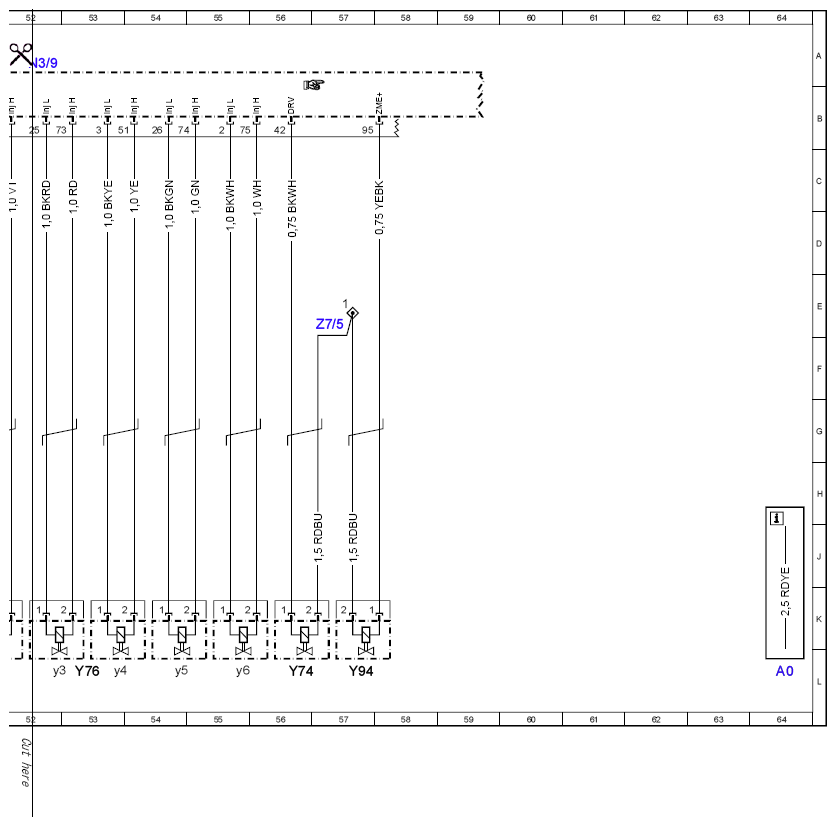

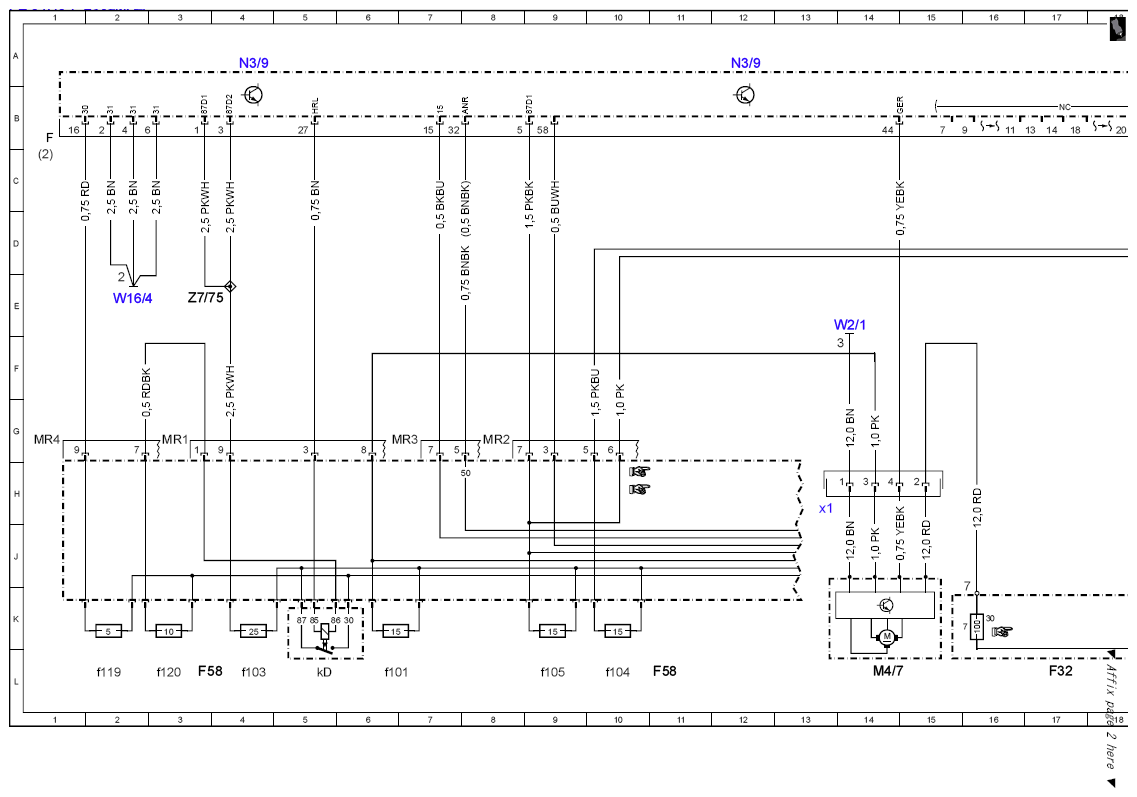

| A0 |
Color code key |
64L |
| B16/15 |
Temperature sensor upstream of SCR catalytic converter |
35L |
| B37 |
Accelerator pedal sensor |
33L |
| CAN C |
Engine compartment CAN |
30K |
| F32 |
Front prefuse |
17L |
| F32f7 |
Fuse 7 |
16K |
| F4 |
Load compartment fuse and relay box |
21L |
| F4f57 |
Fuse 57 |
21L |
| F4kO |
Fuel pump relay |
19L |
| F58 |
Engine compartment fuse and relay box |
3L |
| F58 |
Engine compartment fuse and relay box |
11L |
| F58f101 |
Fuse 101 |
6L |
| F58f103 |
Fuse 103 |
4L |
| F58f104 |
Fuse 104 |
10L |
| F58f105 |
Fuse 105 |
9L |
| F58f119 |
Fuse 119 |
2L |
| F58f120 |
Fuse 120 |
3L |
| F58kD |
Engine circuit 87 relay |
5L |
| M4/7 |
Engine and AC electric suction fan with integrated control |
14L |
| M4/7x1 |
Engine and AC electric suction fan with integrated control connector 1 |
13H |
| N118/5 |
AdBlue® control unit |
47L |
| N2/7 |
Restraint systems control unit |
38L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
52A |
| U244 |
Valid for BlueTEC |
44G |
| U244 |
Valid for BlueTEC |
34A |
| W16/4 |
Ground (right assembly compartment, power ground) |
2E |
| W2/1 |
Ground (right front - fan) |
14E |
| W6/6 |
Ground (left spare tire well) |
41G |
| X22/6 |
Automatic transmission/intelligent servo module connector |
24G |
| X25/2 |
Engine compartment/interior compartment connector |
19E |
| X25/2 |
Engine compartment/interior compartment connector |
27E |
| X25/2 |
Engine compartment/interior compartment connector |
39E |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
30L |
| X30/38 |
Potential distributor electrical connector (CAN I) |
42L |
| Y74 |
Pressure regulator valve |
56L |
| Y76 |
Fuel injectors |
53L |
| Y76y1 |
Cylinder 1 fuel injector |
50L |
| Y76y2 |
Cylinder 2 fuel injector |
51L |
| Y76y3 |
Cylinder 3 fuel injector |
52L |
| Y76y4 |
Cylinder 4 fuel injector |
53L |
| Y76y5 |
Cylinder 5 fuel injector |
54L |
| Y76y6 |
Fuel injector cylinder 6 |
55L |
| Y94 |
Quantity control valve |
57L |
| Z7/48 |
Circuit 87D2 connector sleeve |
28L |
| Z7/5 |
Circuit 87 connector sleeve |
57E |
| Z7/75 |
Circuit 87 D3 connector sleeve |
3E |
