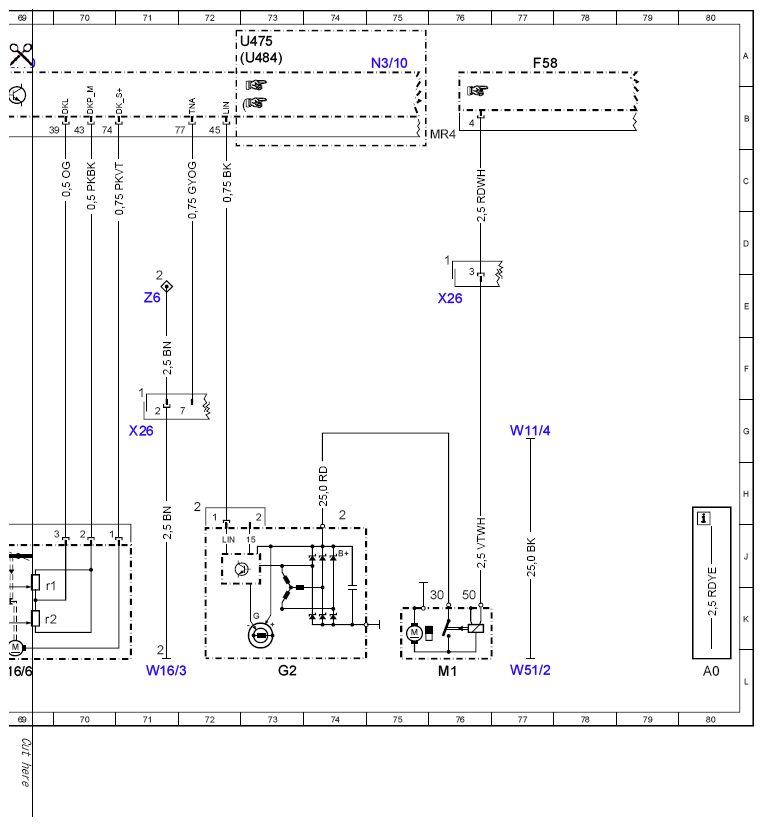

| A0 |
Color code key |
|

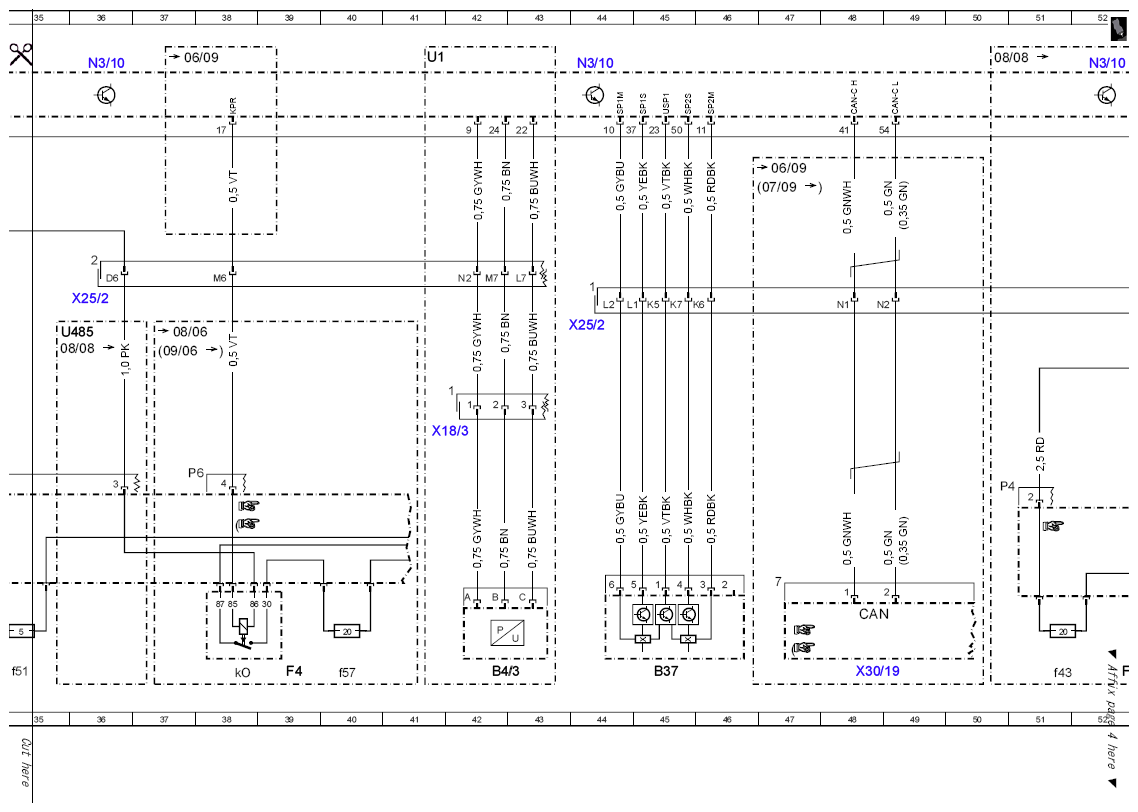

| B37 |
Accelerator pedal sensor |
45L |
| B4/3 |
Fuel tank pressure sensor |
42L |
| B4/7 |
Fuel pressure sensor |
66L |

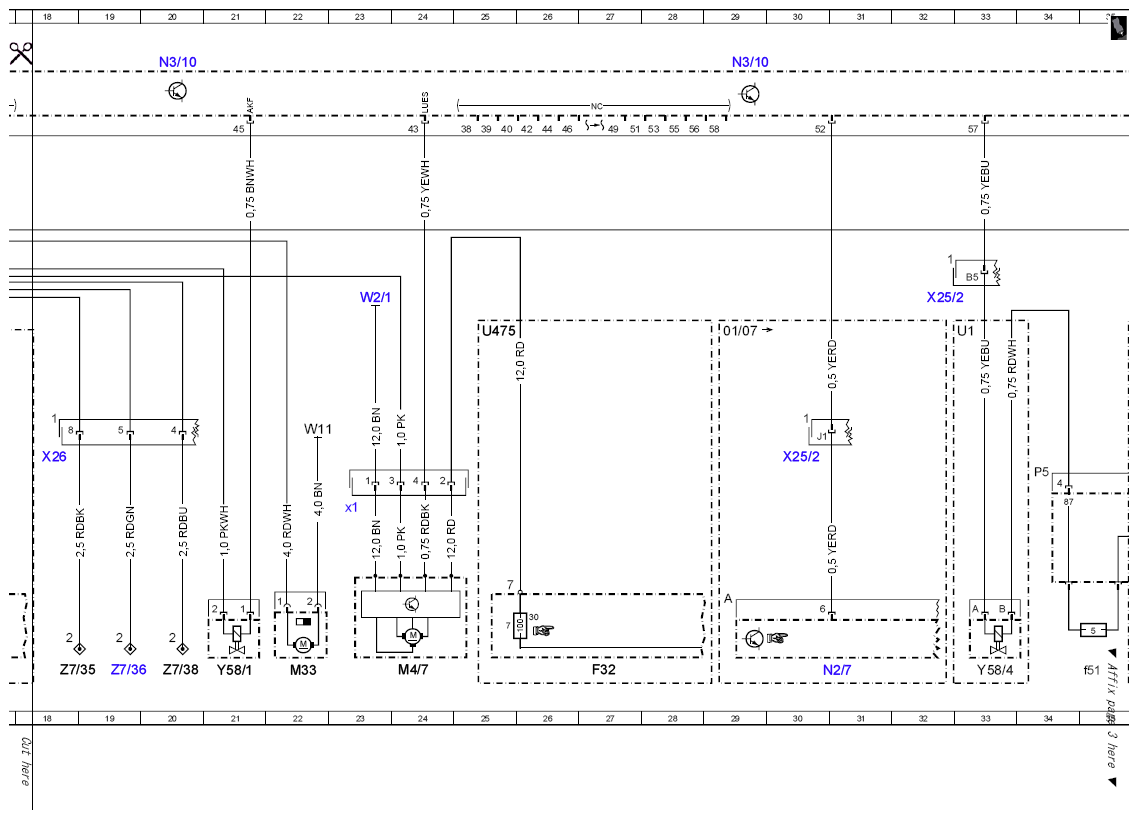

| F32 |
Front prefuse |
27L |
| F32f7 |
Fuse 7 |
25K |

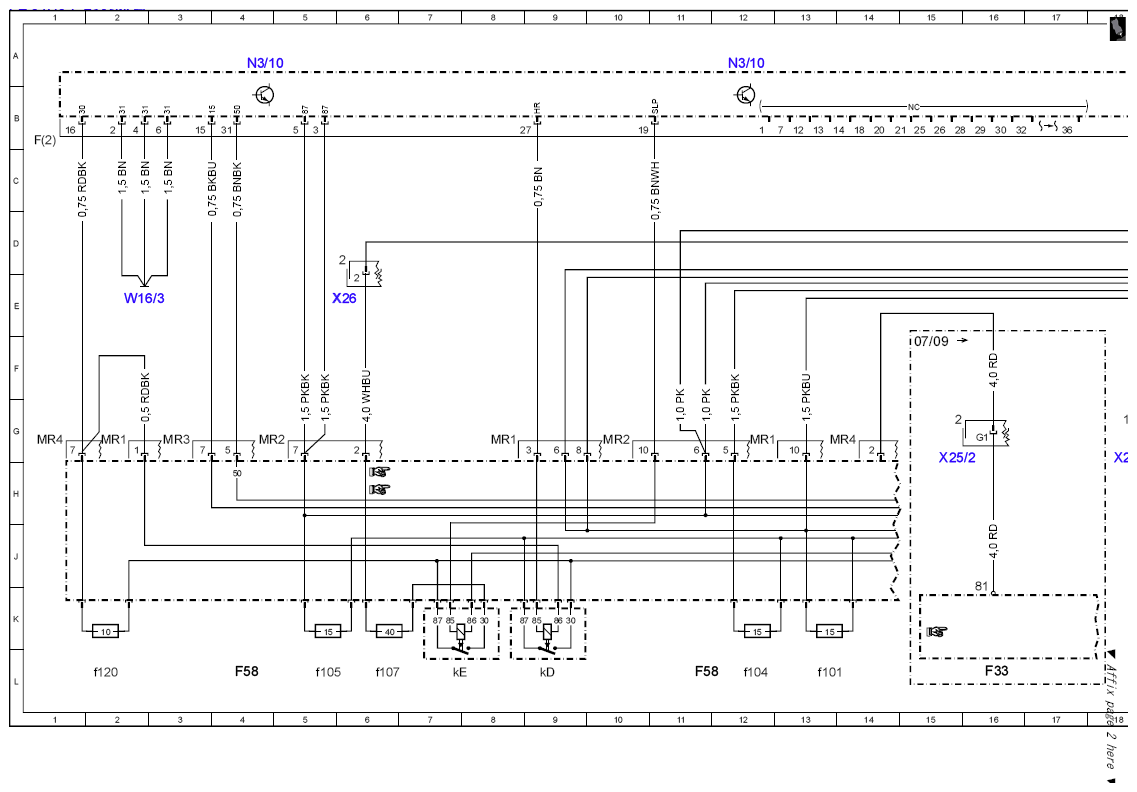

| F33 |
Battery compartment prefuse box |
16L |
| F4 |
Load compartment fuse and relay box |
39L |

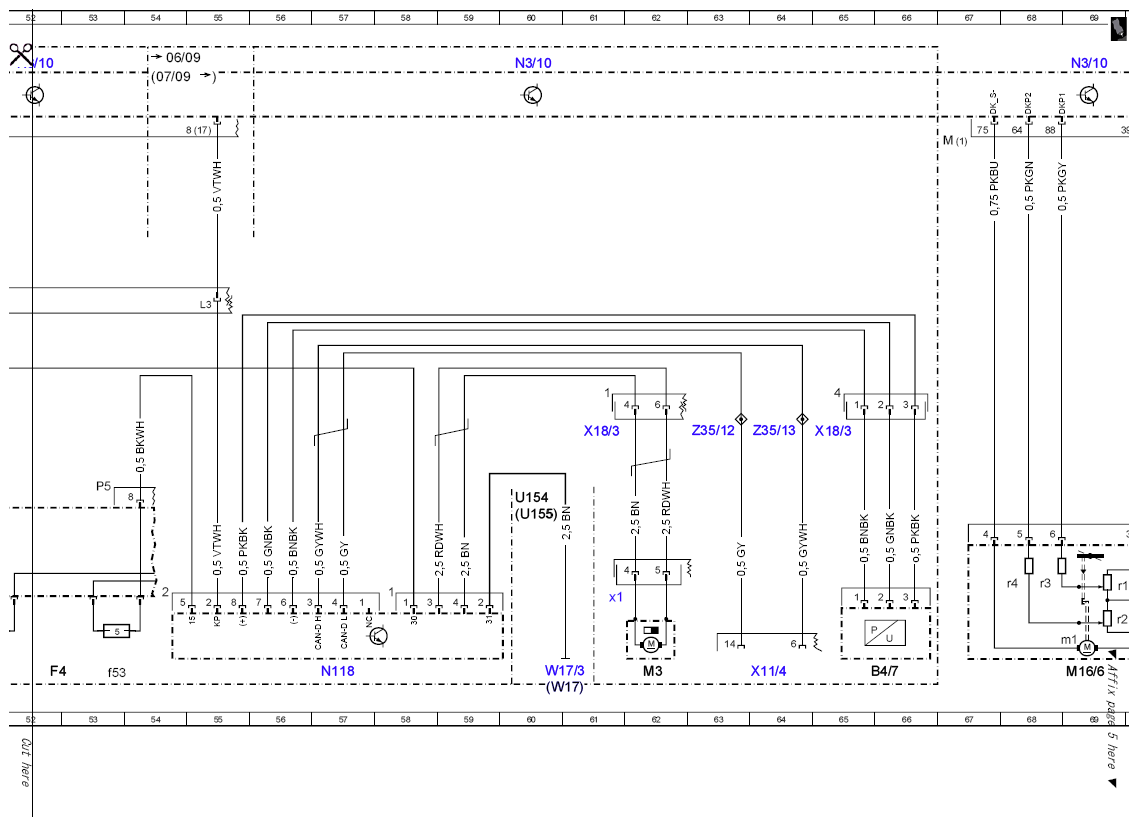

| F4 |
Load compartment fuse and relay box |
52L |
| F4f43 |
Fuse 43 |
51L |
| F4f51 |
Fuse 51 |
35L |
| F4f53 |
Fuse 53 |
53L |
| F4f57 |
Fuse 57 |
40L |
| F4kO |
Fuel pump relay |
38L |
| F58 |
Engine compartment fuse and relay box |
4L |
| F58 |
Engine compartment fuse and relay box |
11L |
| F58 |
Engine compartment fuse and relay box |
77A |
| F58f101 |
Fuse 101 |
13L |
| F58f104 |
Fuse 104 |
12L |
| F58f105 |
Fuse 105 |
5L |
| F58f107 |
Fuse 107 |
6L |
| F58f120 |
Fuse 120 |
2L |
| F58kD |
Engine circuit 87 relay |
9L |
| F58kE |
Air pump relay |
7L |
| G2 |
Alternator |
73L |
| M1 |
Starter |
76L |
| M16/6 |
Throttle valve actuator |
69L |
| M16/6m1 |
Actuator motor |
69K |
| M16/6r1 |
Actual value potentiometer 1 |
69K |
| M16/6r2 |
Actual value potentiometer 2 |
69K |
| M16/6r3 |
Actual value potentiometer (sliding contact 1) |
68K |
| M16/6r4 |
Actual value potentiometer (sliding contact 2) |
68K |
| M3 |
Fuel pump (FP) |
62L |
| M33 |
Electric air pump |
22L |
| M3x1 |
Fuel pump connector |
61K |
| M4/7 |
Engine and AC electric suction fan with integrated control |
24L |
| M4/7x1 |
Engine and AC electric suction fan with integrated control connector 1 |
23H |
| N118 |
Fuel pump control unit |
57L |
| N2/7 |
Restraint systems control unit |
31L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
29A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
44A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
60A |
| N3/10 |
ME-SFI [ME] control unit |
69A |
| N3/10 |
ME-SFI [ME] control unit |
75A |
| U1 |
Valid for USA |
41A |
| U1 |
Valid for USA |
|
| U154 |
Valid for 164.1 |
60H |
| U155 |
Valid for 164.8 |
60H |
| U475 |
Valid for M 272 |
72A |
| U475 |
Valid for M 272 |
25E |
| U484 |
Valid for M273 ME |
72A |
| U485 |
Not valid for M273 ME |
35E |
| W11 |
Ground (engine - electrical line connected) |
|
| W11/4 |
Ground (engine support) 77G |
|
| W16/3 |
Ground (left assembly compartment, power ground) |
2E |
| W16/3 |
Ground (left assembly compartment, power ground) |
71L |
| W17 |
Ground (right rear seat) |
60L |
| W17/3 |
Ground 2 (right rear seat) |
60L |
| W2/1 |
Ground (right front - fan) |
23E |
| W51/2 |
Ground (engine-frame) |
77L |
| X11/4 |
Data link connector |
64L |
| X18/3 |
Interior/fuel tank connector |
42G |
| X18/3 |
Interior/fuel tank connector |
65G |
| X18/3 |
Interior/fuel tank connector |
61G |
| X25/2 |
Engine compartment/interior compartment connector |
30H |
| X25/2 |
Engine compartment/interior compartment connector |
32E |
| X25/2 |
Engine compartment/interior compartment connector |
36E |
| X25/2 |
Engine compartment/interior compartment connector |
44E |
| X25/2 |
Engine compartment/interior compartment connector |
15H |
| X26 |
Interior and engine wiring harness connector |
18H |
| X26 |
Interior and engine wiring harness connector |
6E |
| X26 |
Interior and engine wiring harness connector |
71G |
| X26 |
Interior and engine wiring harness connector |
76E |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
48L |
| Y58/1 |
Purge control valve |
21L |
| Y58/4 |
Activated charcoal filter shutoff valve |
|
| Z35/12 |
CAN D low connector sleeve |
63G |
| Z35/13 |
CAN D high connector sleeve |
64G |
| Z6 |
Ground connector sleeve |
71E |
| Z7/35 |
Circuit 87 M1e connector sleeve |
18L |
| Z7/36 |
Circuit 87 M2e connector sleeve |
19L |
| Z7/38 |
Circuit 87 M1i connector sleeve |
20L |
