Function diagram for electrical system of Electronic Stability Program (ESP) - PE42.45-U-2050-99MAA

Code: Designation: Position:
A1 Instrument cluster 13 H
A7/7 BAS brake booster 4 C
B24/15 Micromechanical turn rate sensor AY pickup 1 F
B34 ESP brake pressure sensor 6 G
B37 Accelerator pedal sensor 12 A
E3e4 Left stop lamp 20 G
E4e4 Right stop lamp 25 G
L6/1 Left front wheel speed sensor 2 G
L6/2 Right front wheel speed sensor 2 G
L6/3 Left rear wheel speed sensor 2 H
L6/4 Right rear wheel speed sensor 2 H
N10 Front SAM control unit 16 J
N10/8 Rear SAM control module 19 J
N3/10 ME-SFI [ME] control module 11 D
N3/10 ME-SFI [ME] control module 13 D
N3/9 CDI control module 9 D
N47-5 ESP control module 5 E
N49 Steering angle sensor 11 H
N72 Lower control field control module 18 C
N72/1 Upper control panel control module 18 F
N72/1s1 ESP OFF switch 17 E
N72s30 Downhill Speed Regulation switch 19 B
N80 Steering column module 10 H
N93 Central gateway control module 15 F
S11 Brake fluid indicator switch 14 K
S12 Parking brake indicator switch 14 K
S40 CC switch 10 L
U127 Valid for engine 272, engine 273 KE 11 B
U151 Valid for engine 113 13 B
U152 Valid for engine 156 11 B
U552 Valid for offroad package 17 B
U880 Valid for engine 642 8 B
Y3/8 Electric control unit (VGS) 7 H

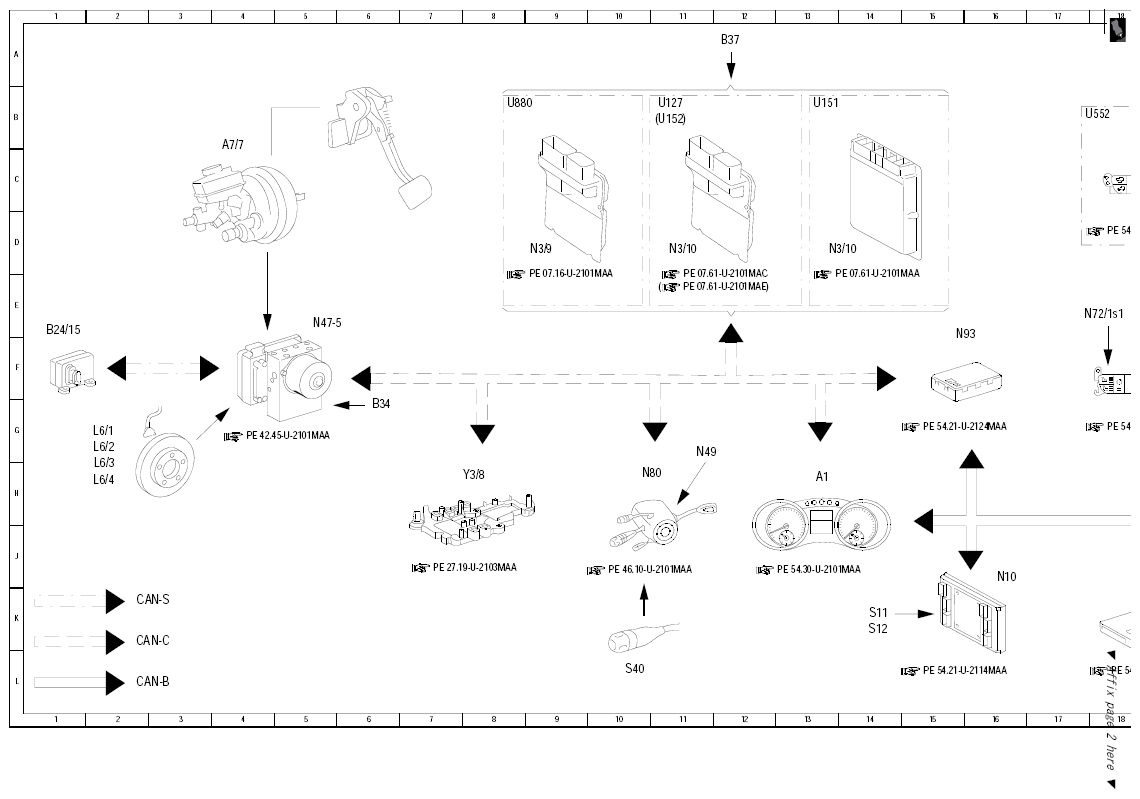

Fig 1: Electronic Stability Program Electrical System Function Diagram (1 Of 2)
G10116676Courtesy of MERCEDES-BENZ USA

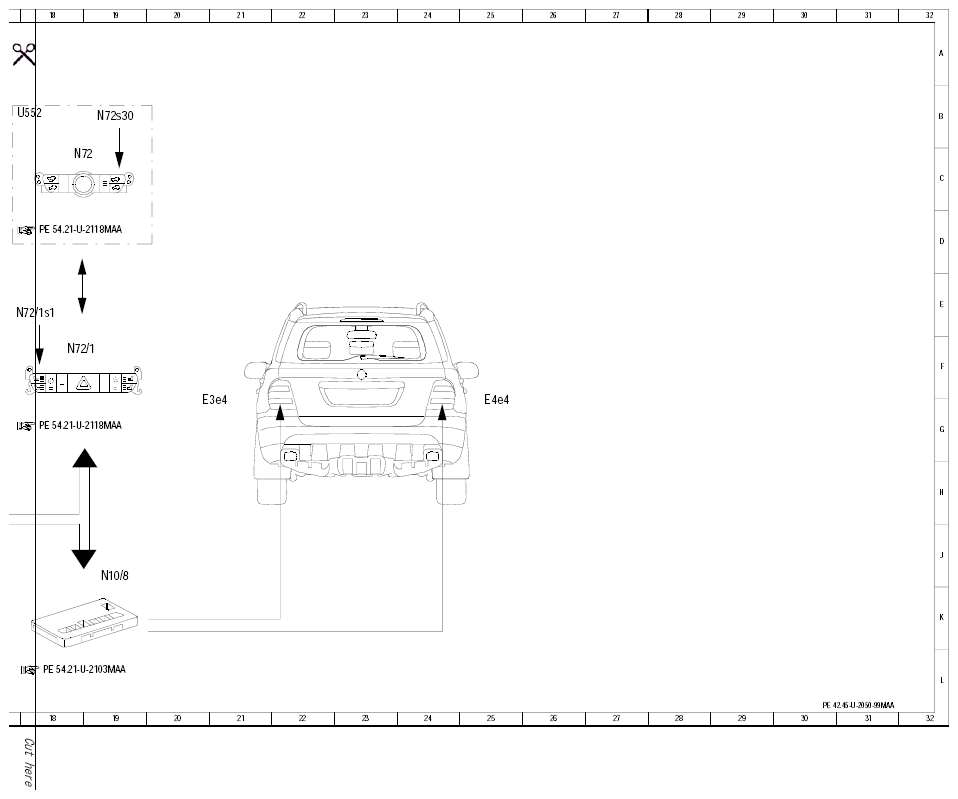

Fig 2: Electronic Stability Program Electrical System Function Diagram (2 Of 2)
G10116677Courtesy of MERCEDES-BENZ USA
