Replace brake fluid - AP42.00-P-4280GZ
MODEL 164, 166
Shown on model 164.1
MODIFICATION NOTES
| 2.6.11 | Clean cap and brake fluid reservoir, added | Operation step 3 | |
| Check brake system for leaks, added | Step 12 |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| 1 | Open engine hood and raise to vertical position | Model 164 | AR88.40-P-1000GZ |
| Model 166 | AR88.40-P-1000GQ | ||
| 2 | Remove cover over left suspension strut tower | Model 166 | |
| Clean | |||

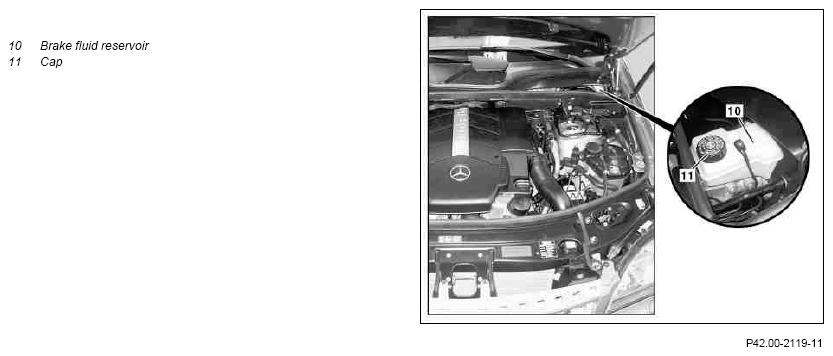

| 3 | Clean cap (11) and brake fluid reservoir (10) | Cleaner from package | *BR00.45-Z-1028-04A |
| 4 | Unscrew cap (11). | ||
| 5 | Suction off brake fluid from the brake fluid reservoir (10) | ||
| 6 | Fill with new brake fluid up to the "MAX" mark in the brake fluid reservoir (10) | *BF42.10-P-1001-01G | |
| 7 | Connect filler/bleeder unit on brake fluid reservoir (10) | Brake fluid changer with reservoir (10-20 l) |
|
| 8 | Lift vehicle on vehicle lift. | AR00.60-P-1000GZ | |
| 9 | Allow brake fluid to flow out at bleed screws | Model 164 | AR42.10-P-0010GZ |
| Model 166 |
AR42.10-P-0010-02EW | ||
| *BA42.10-P-1001-10L | |||
| *BA42.10-P-1001-12L | |||
| 10 | Install in the reverse order | ||
| 11 | Correct fluid level in brake fluid reservoir (10) | AP42.10-P-4210GZ | |
| Checking | |||
| 12 | Check brake system for leaks | AR42.10-P-0100-01GZ |
REAR AXLE BRAKE CALIPER
| Number | Designation | Model 164 | Model 166 | |
|---|---|---|---|---|
| BA42.10-P-1001-12L | Bleed screw to brake caliper | Nm | 7 | 11 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 164 except 164.177 | Model 164.177 | Model 166 | |
|---|---|---|---|---|---|
| BA42.10-P-1001-10L | Bleed screw to brake caliper | Nm | 18 | 18 | 16 |
BRAKE FLUID
| Number | Designation | Model 164.1/8 | Model 166 | ||
|---|---|---|---|---|---|
| BF42.10-P-1001-01G | Brake fluid | Filling capacity | Liters | ≈0.8 | ≈0.8 |
| Specifications for Operating Fluids | Specification |
DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1) |
DOT 4. See GENERAL BRAKE FLUID (https://bevo.mercedes-benz.com/index.php?language_id=1) |
||
| Specification |
MB 331.0 brake fluid A 000 989 08 07 |
MB 331.0 brake fluid A 000 989 08 07 |
|||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Cleaner from package | Adolf Wurth GmbH & Co. KG |
