| A0 |
Color code key |
40L |

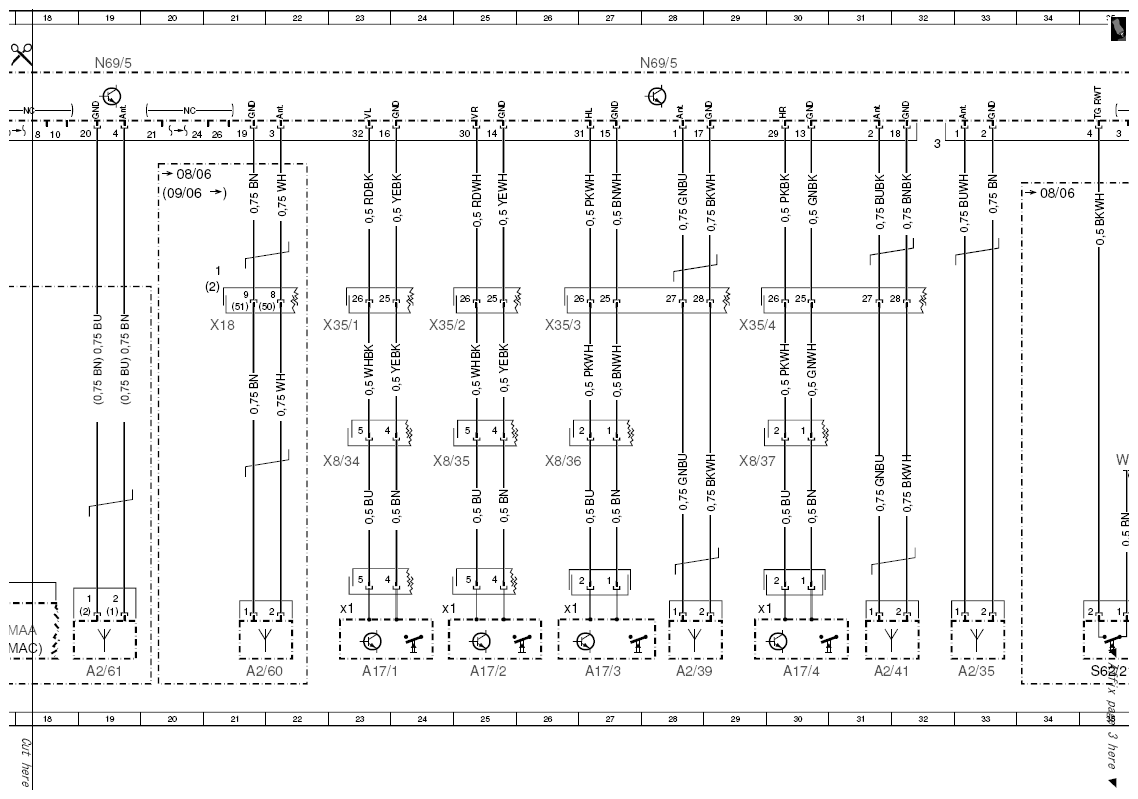

| A17/1 |
Left front KEYLESS GO door handle |
23L |
| A17/1x1 |
Left front KEYLESS-GO door handle connector |
23K |
| A17/2 |
Right front KEYLESS GO door handle |
25L |
| A17/2x1 |
Right front KEYLESS-GO door handle connector |
24K |
| A17/3 |
Left rear KEYLESS GO door handle |
27L |
| A17/3x1 |
Left rear KEYLESS-GO door handle connector |
26K |
| A17/4 |
Right rear KEYLESS GO door handle |
30L |
| A17/4x1 |
Right rear KEYLESS-GO door handle connector |
29K |
| A2/35 |
Trunk KEYLESS GO antenna |
33L |
| A2/39 |
Left rear door KEYLESS-GO antenna |
28L |
| A2/41 |
Right rear door KEYLESS-GO antenna |
31L |
| A2/60 |
Cockpit KEYLESS-GO antenna |
21L |
| A2/61 |
Interior KEYLESS GO antenna |
19L |

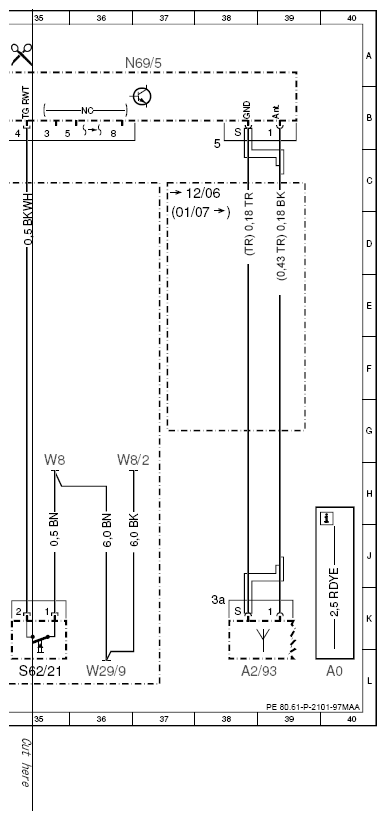

| A2/93 |
Roof antenna module |
38L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f33 |
Fuse 33 |
2L |

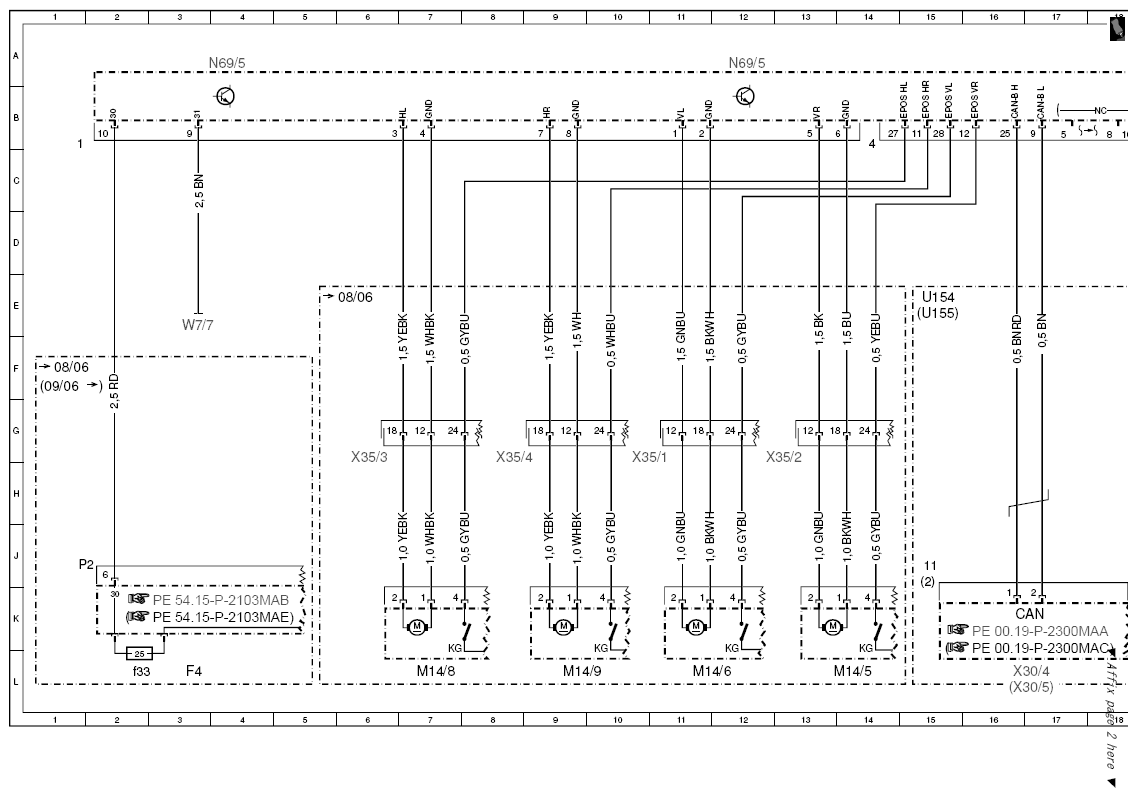

| M14/5 |
Right front door CL [ZV] motor |
14L |
| M14/6 |
Left front door CL [ZV] motor |
11L |
| M14/8 |
Left rear door CL [ZV] motor |
7L |
| M14/9 |
Right rear door CL [ZV] motor |
9L |
| N69/5 |
KEYLESS-GO control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
12A |
| N69/5 |
KEYLESS-GO control unit |
19A |
| N69/5 |
KEYLESS-GO control unit |
28A |
| N69/5 |
KEYLESS-GO control unit |
37A |
| S62/21 |
Rear-end door KEYLESS-GO button |
35L |
| U154 |
Valid for 164.1 |
15E |
| U155 |
Valid for 164.8 |
15E |
| W29/9 |
Ground (right D-pillar) |
36L |
| W7/7 |
Ground (right spare tire well) |
3E |
| W8 |
Ground (rear-end door) |
35H |
| W8/2 |
Ground (right rear-end door) |
36H |
| X18 |
Interior/cockpit connector |
21E |
| X30/4 |
Right voltage distributor (CAN) connector |
16L |
| X30/5 |
Left voltage distributor (CAN) connector |
16L |
| X35/1 |
Left front door separation point |
11H |
| X35/1 |
Left front door separation point |
23E |
| X35/2 |
Right front door separation point |
13H |
| X35/2 |
Right front door separation point |
24E |
| X35/3 |
Left rear door separation point |
6H |
| X35/3 |
Left rear door separation point |
26E |
| X35/4 |
Right rear door separation point |
8H |
| X35/4 |
Right rear door separation point |
29E |
| X8/34 |
Left front door handle connector |
23H |
| X8/35 |
Right front door handle connector |
24H |
| X8/36 |
Left rear door handle connector |
26H |
| X8/37 |
Right rear door handle connector |
29H |
